Webnet micro from Jakob Rope Systems was used in the Luisenpark aviary renovation, located in Mannheim, Germany. This project was part of the Luisenpark transformation for the 2023 Federal Garden Show (BUGA 2023), introducing a modern and immersive aviary experience.

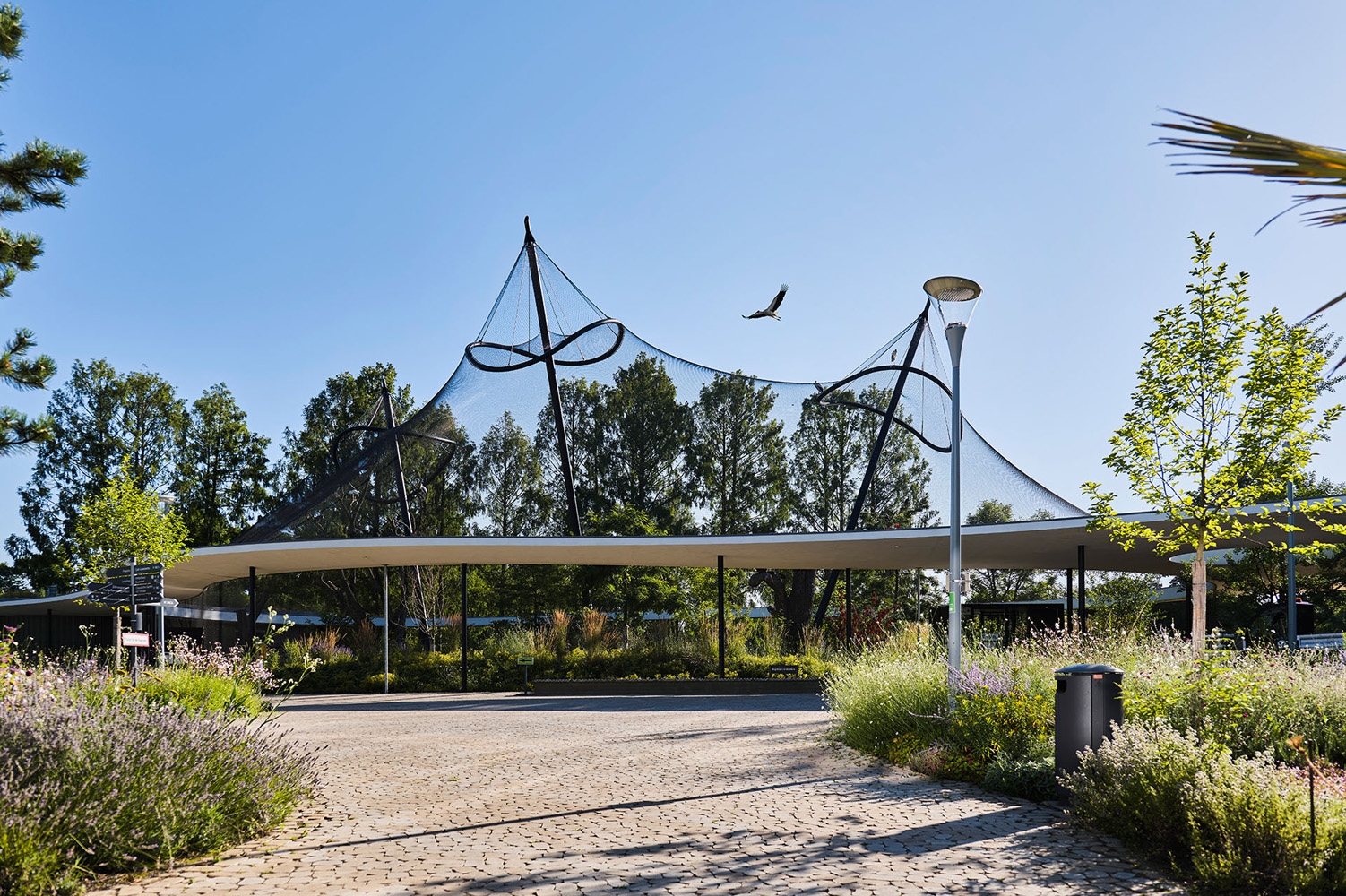

Designed by Bez + Kock Architekten in collaboration with Koeber Landschaftsarchitektur, the Luisenpark aviary spans 1,300 m² and reaches a maximum height of 13 meters. The structure blends architecture and nature, creating an optimal environment for various bird species, such as African storks and red ibises. Its lightweight and air-permeable design fosters natural vegetation growth, ensuring both bird safety and visitor engagement.

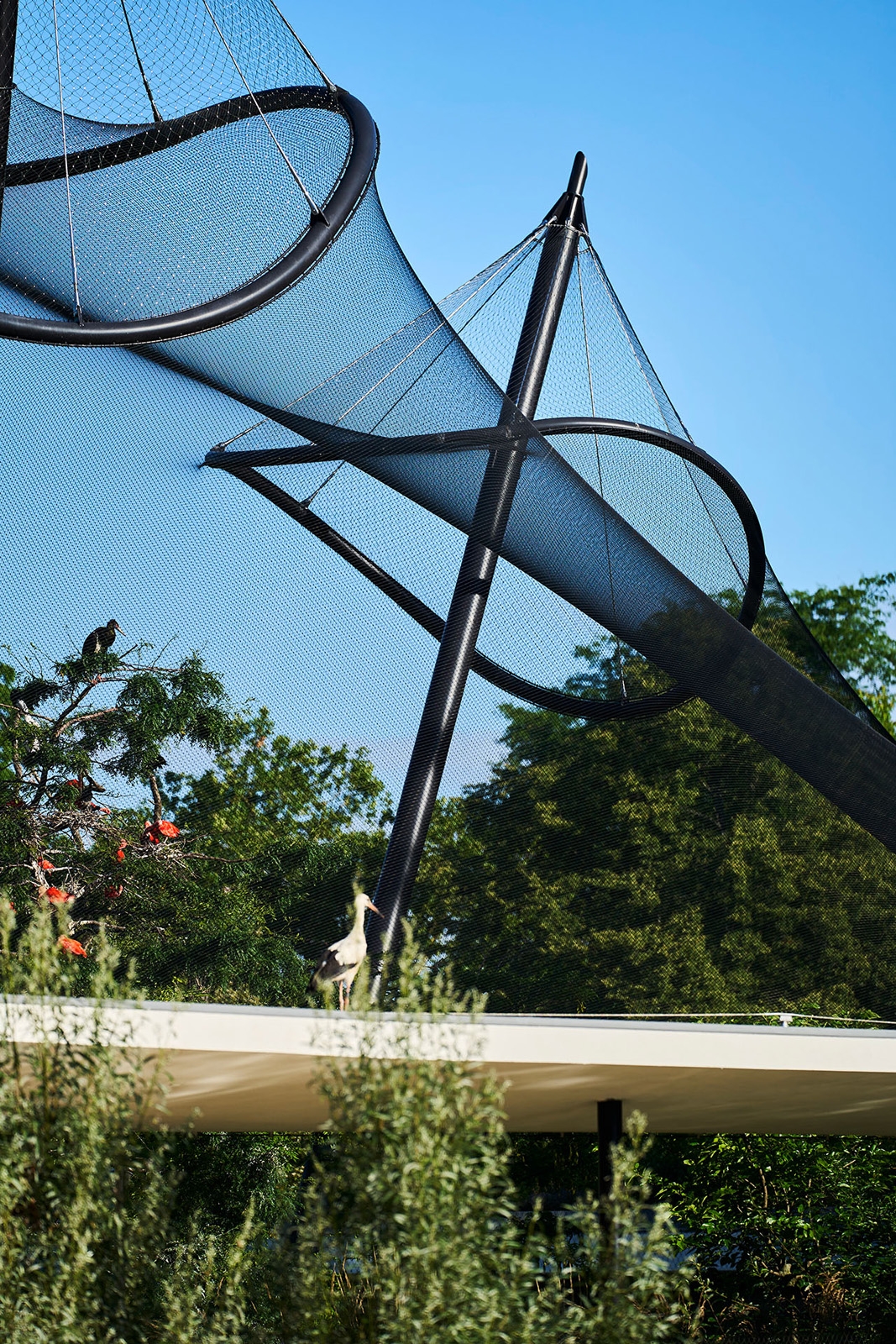

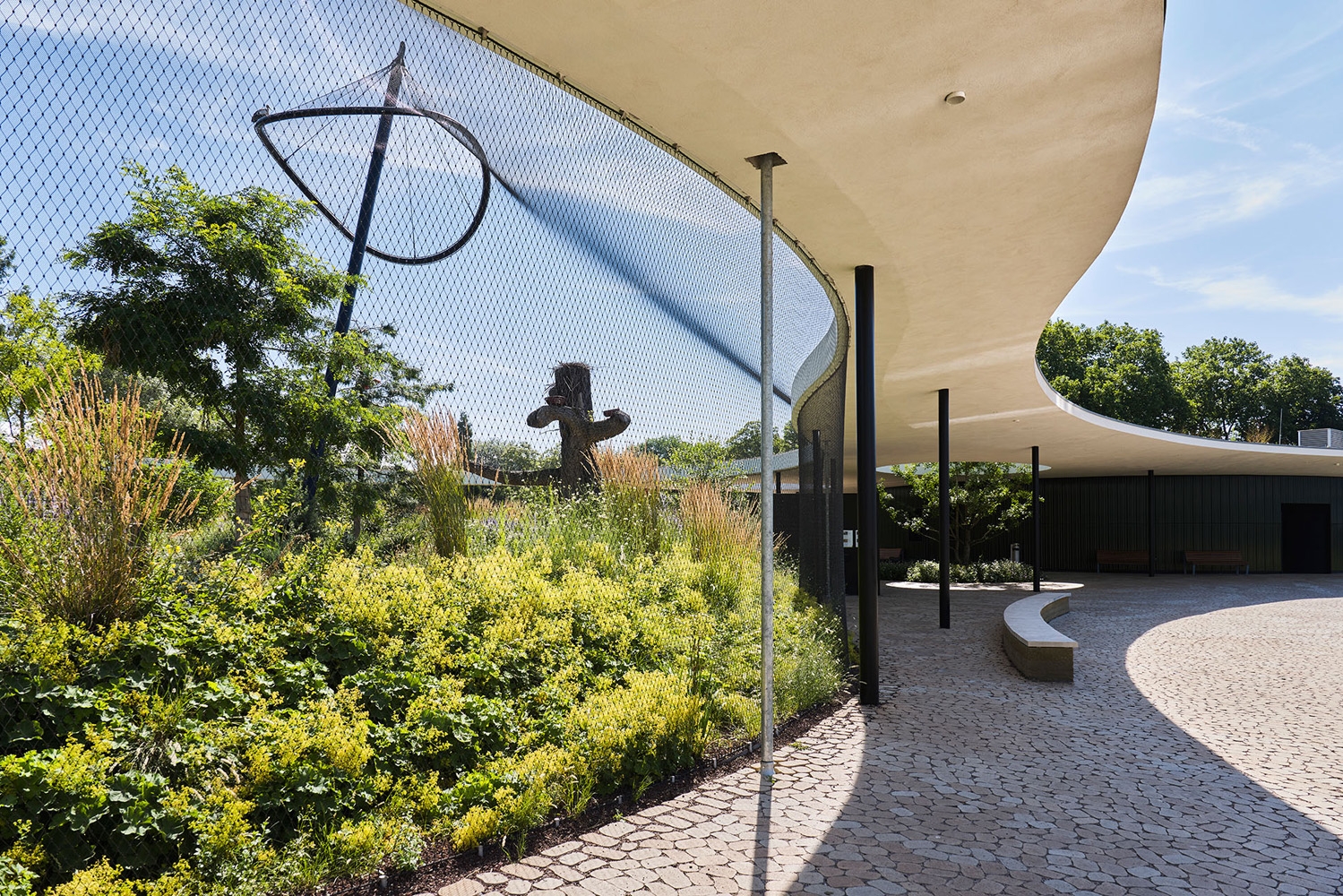

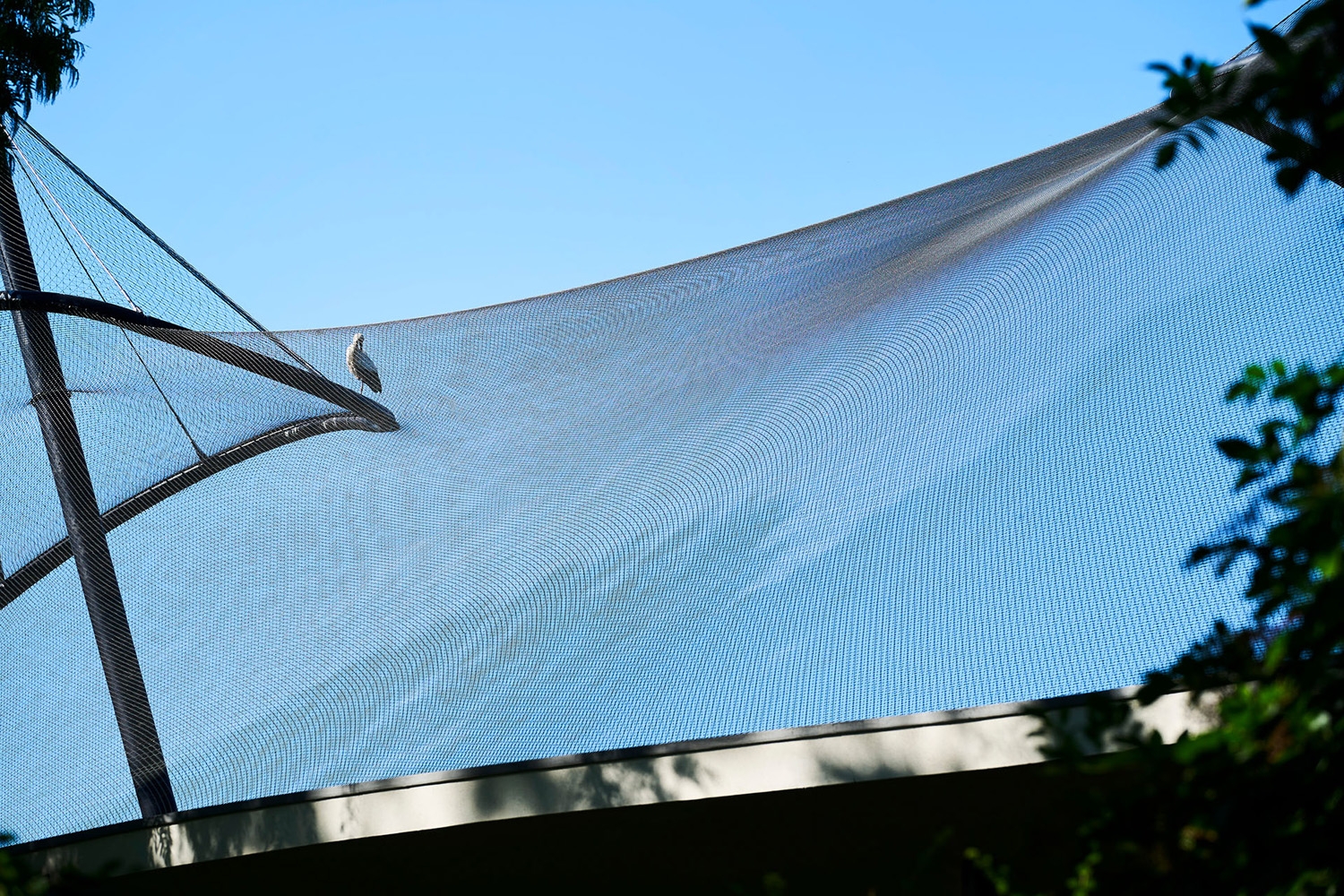

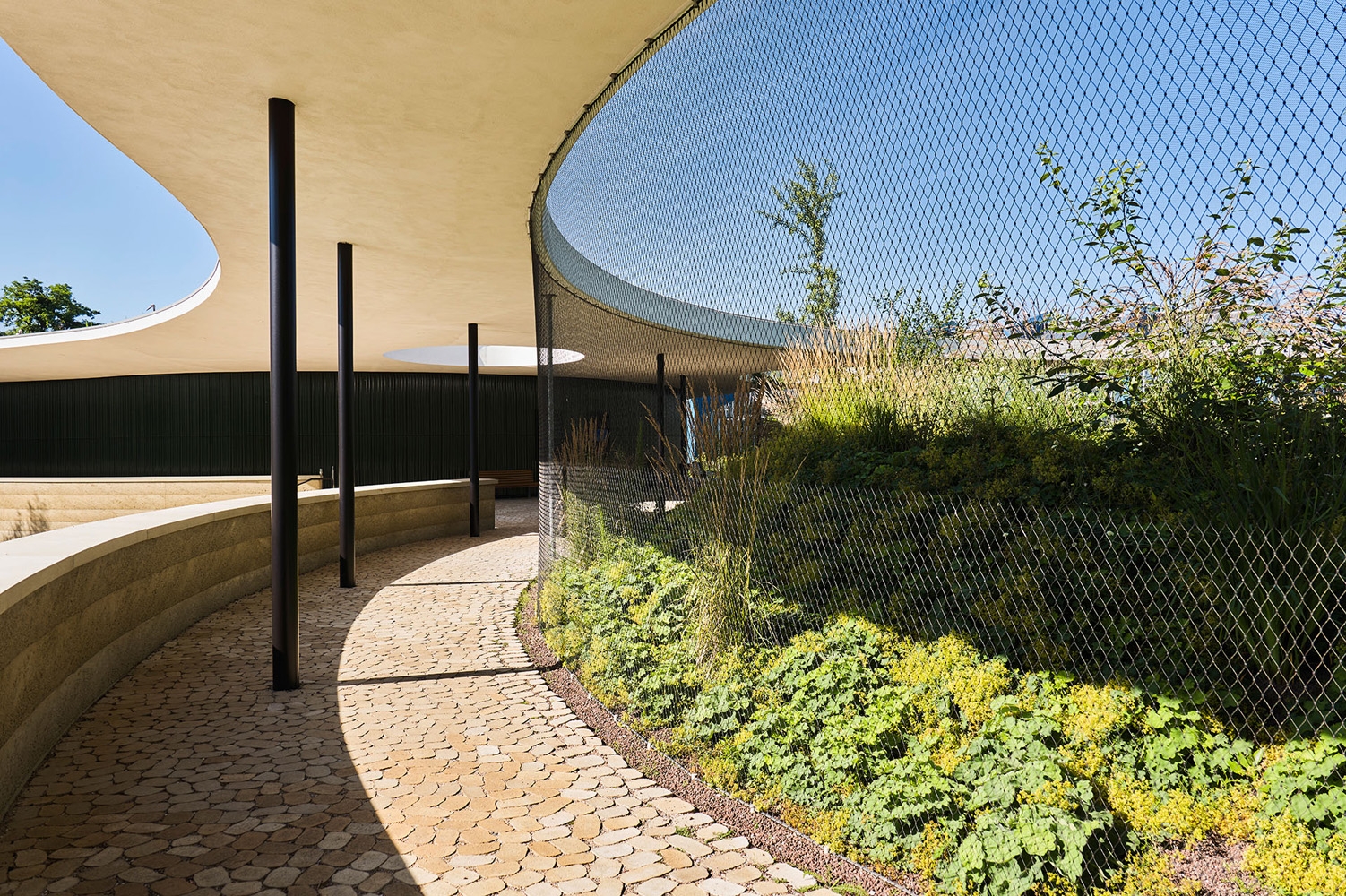

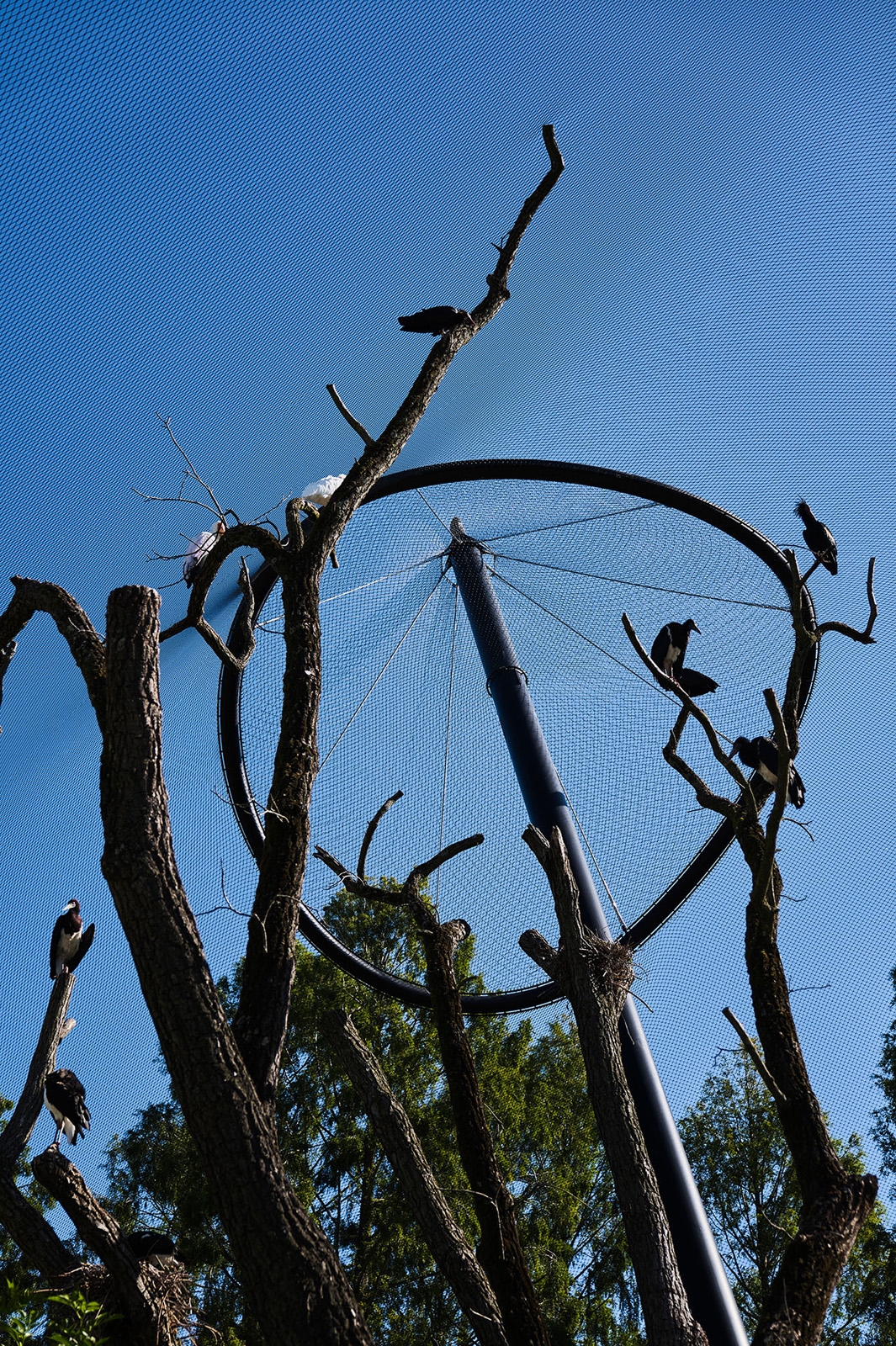

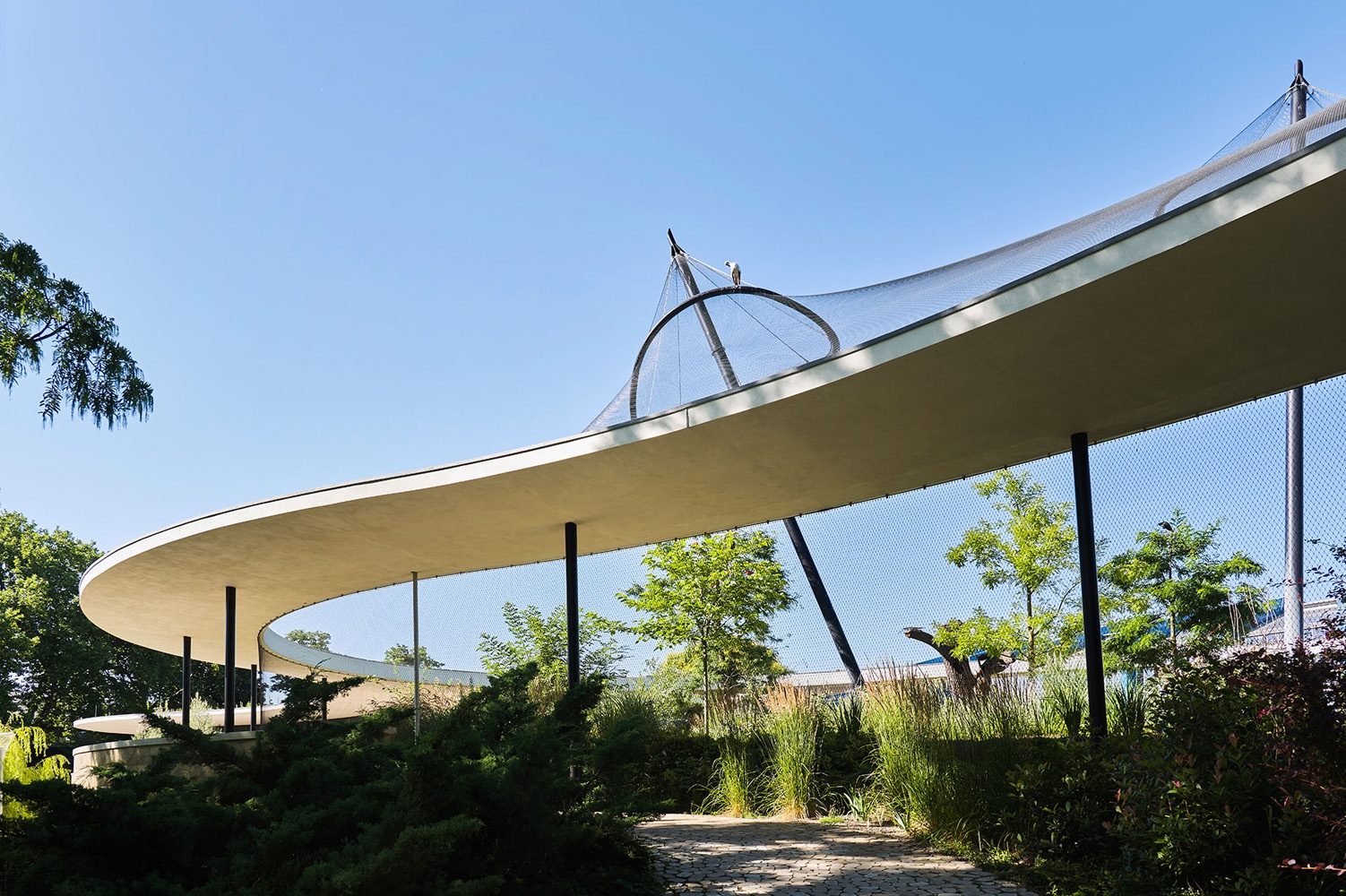

To achieve a seamless balance between security and transparency, Jakob Rope Systems’ Webnet micro black stainless steel mesh was installed across the aviary’s walls and roof. The floating 1,950 m² roof is supported by three 16-meter-high pylons, ensuring stability while maintaining an open visual experience. The installation, completed between February and April 2023, required precision and adaptability due to winter conditions. Telescopic articulated platforms and specialized scaffolding facilitated an efficient and accurate assembly process. Known for its durability and flexibility, Webnet micro has become a preferred solution in zoo architecture, offering low maintenance and aesthetic integration.

Technical Specifications of the Aviary

• Aviary footprint: 1,300 sqm
• Maximum height of aviary: 13 m
• Average flight altitude: 10 m
• Height of inner stall: 4 m

Jakob Products and Services

Aviary Roof:

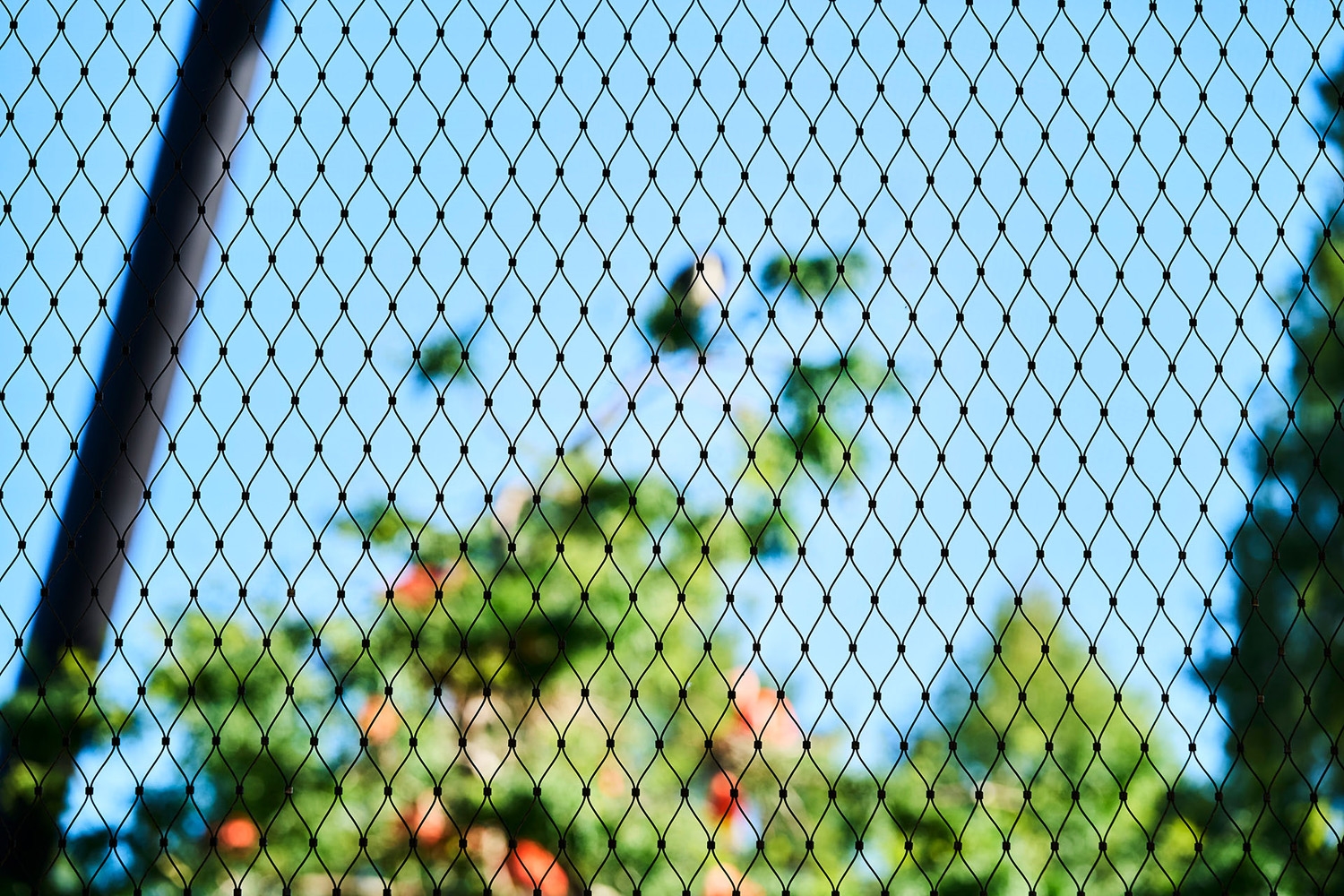

• Webnet micro, Ø 2 mm, mesh size 40 mm
• Net area: 1,947.91 sqm
• Stork Protection Net
• Webnet micro, Ø 2 mm, mesh size 100 mm
• Net area: 241.68 sqm
• Primary ropes: Stainless steel, Ø 10 mm, 1×19

Aviary Wall:

• Webnet micro, Ø 1.5 mm, mesh size 40 mm
• Primary ropes: Stainless steel, Ø 10–12 mm, 6×19 + WC



  Location	Mannheim, Germany
  Year	2023
  Type of Building	Aviary (Renovation)
  Architect	Bez + Kock Architekten, Koeber Landschaftsarchitektur
  Product Used	Webnet micro
