Concealed Fastener Panels | Fabral

Select Series® 12

• Maximum Panel Length: 45′
• Minimum Panel Length: 4′
• Panel Width: 12”
• Recommended for siding or soffits
• Install vertically for wall applications

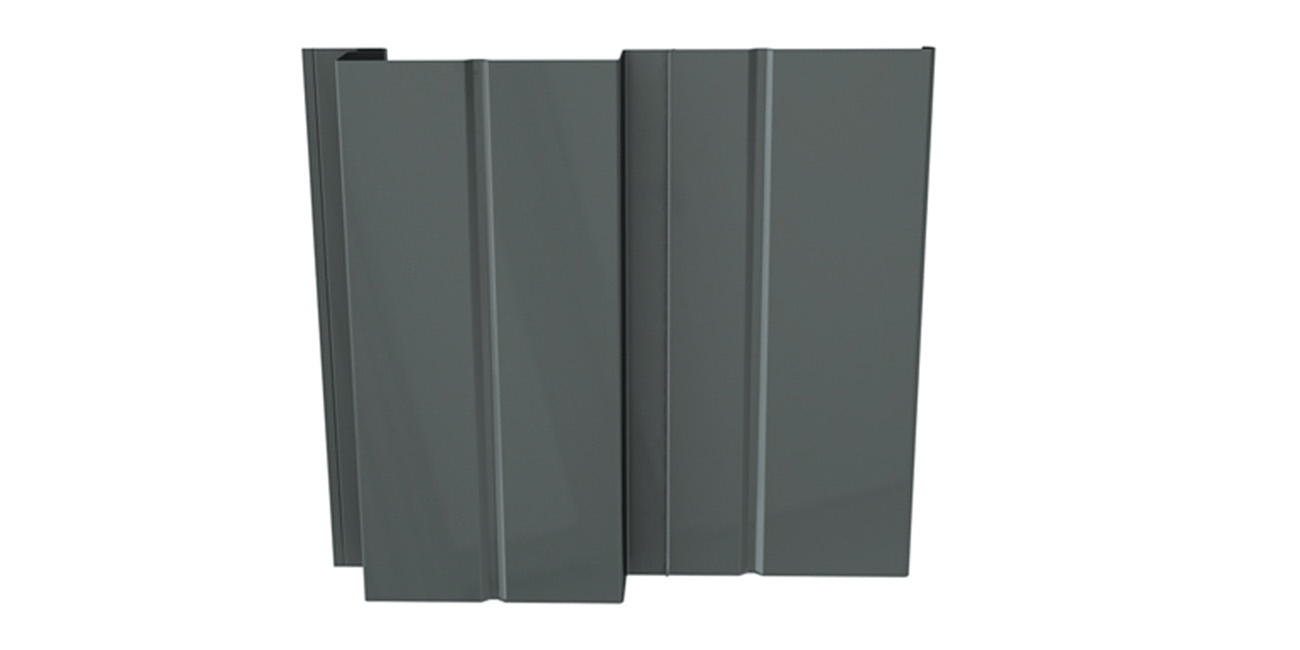

Select Series® 612

• Maximum Panel Length: 45′
• Minimum Panel Length: 4′
• Panel Width: 12” with a 6” off-set
• For Vertical Use Only
• Recommended for siding or soffits

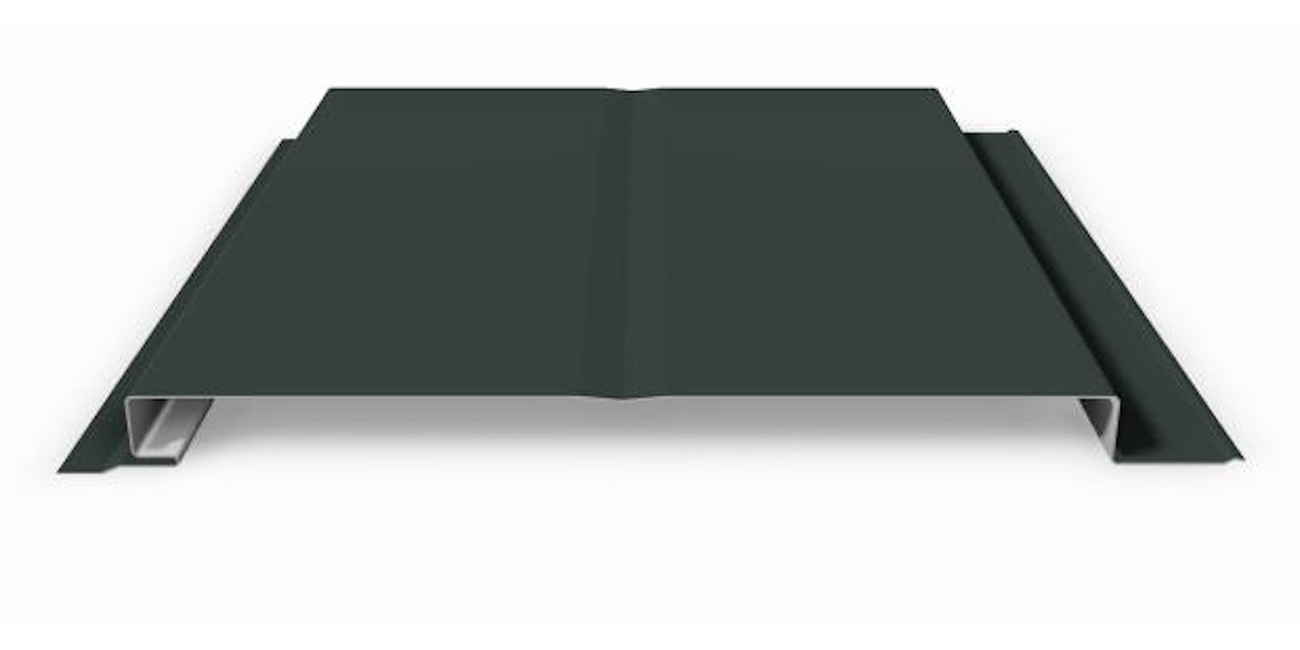

Décor-Flush II

• Maximum Panel Length: 25′
• Minimum Panel Length: 6′
• Applications: soffit, fascia, and vertical walls

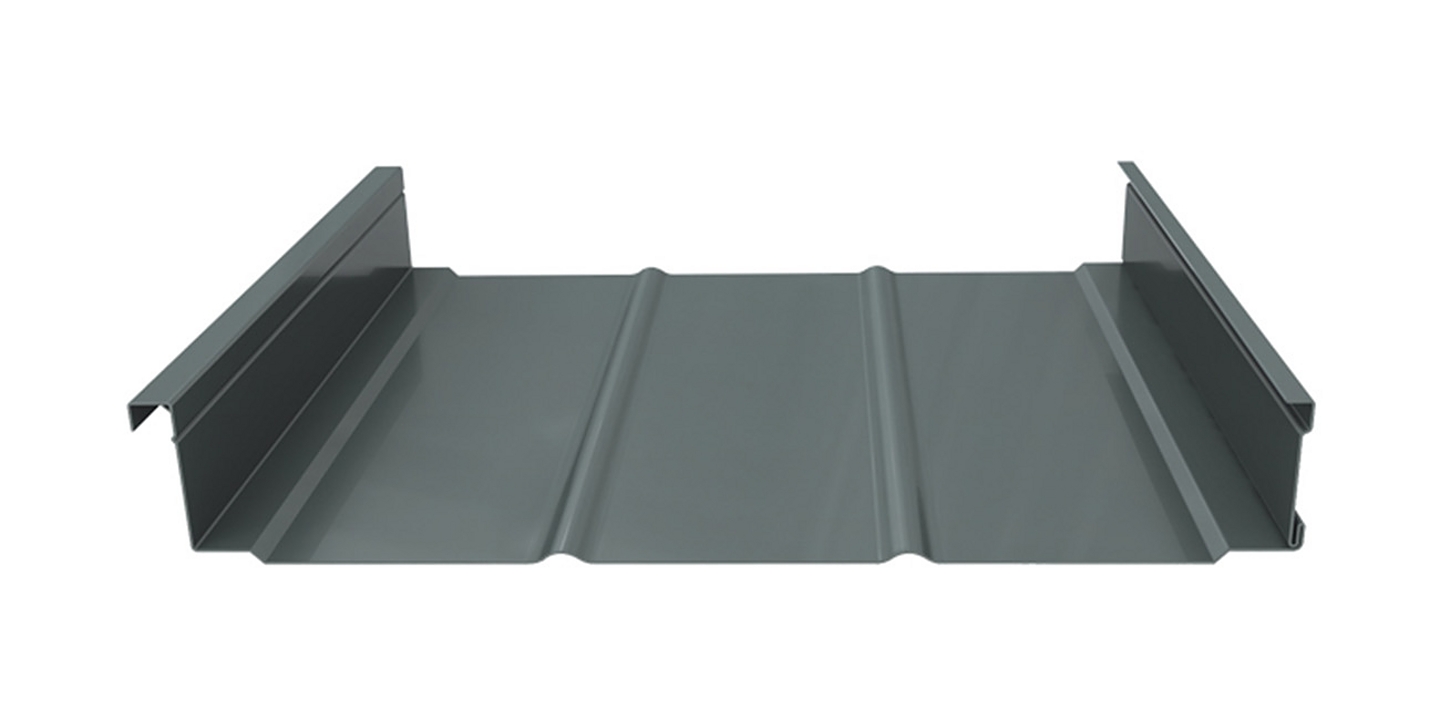

Stand ’N Seam®

• Minimum Roof Slope: 1/2:12
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Maximum Panel Length: 47′
• Minimum Panel Length: 6′

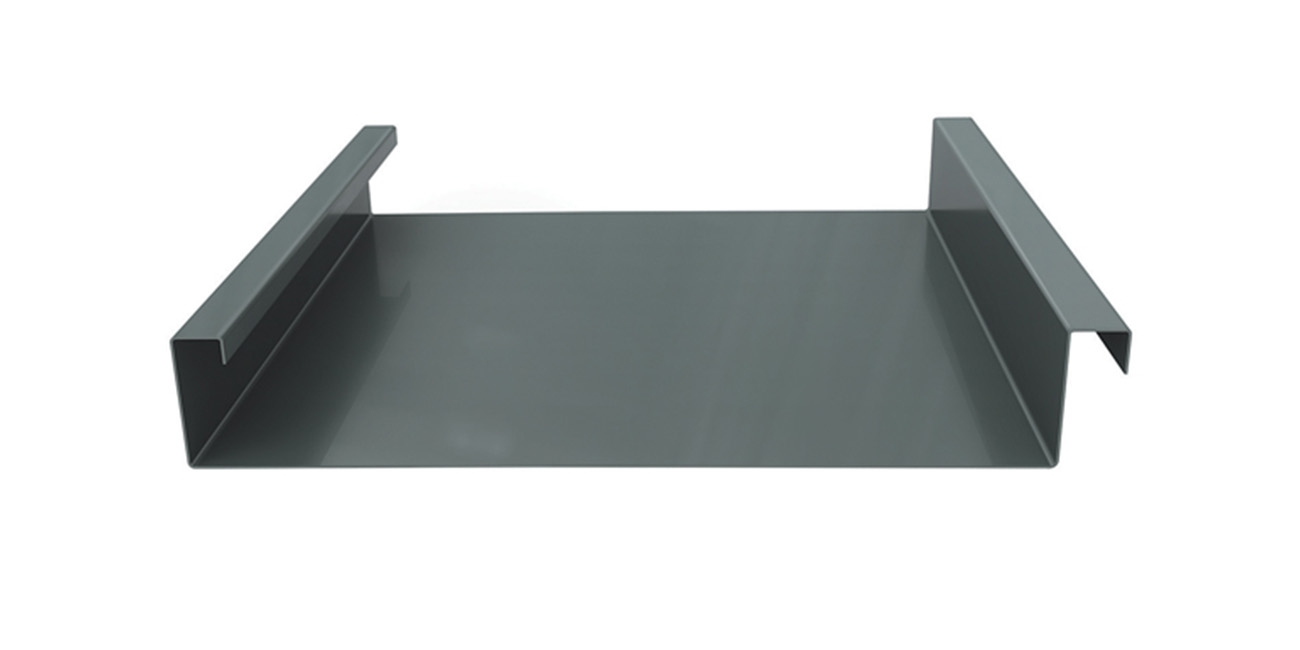

PowerSeam™

• Maximum Panel Length: 47′
• Minimum Panel Length: 6′
• Can bend to create curved designs

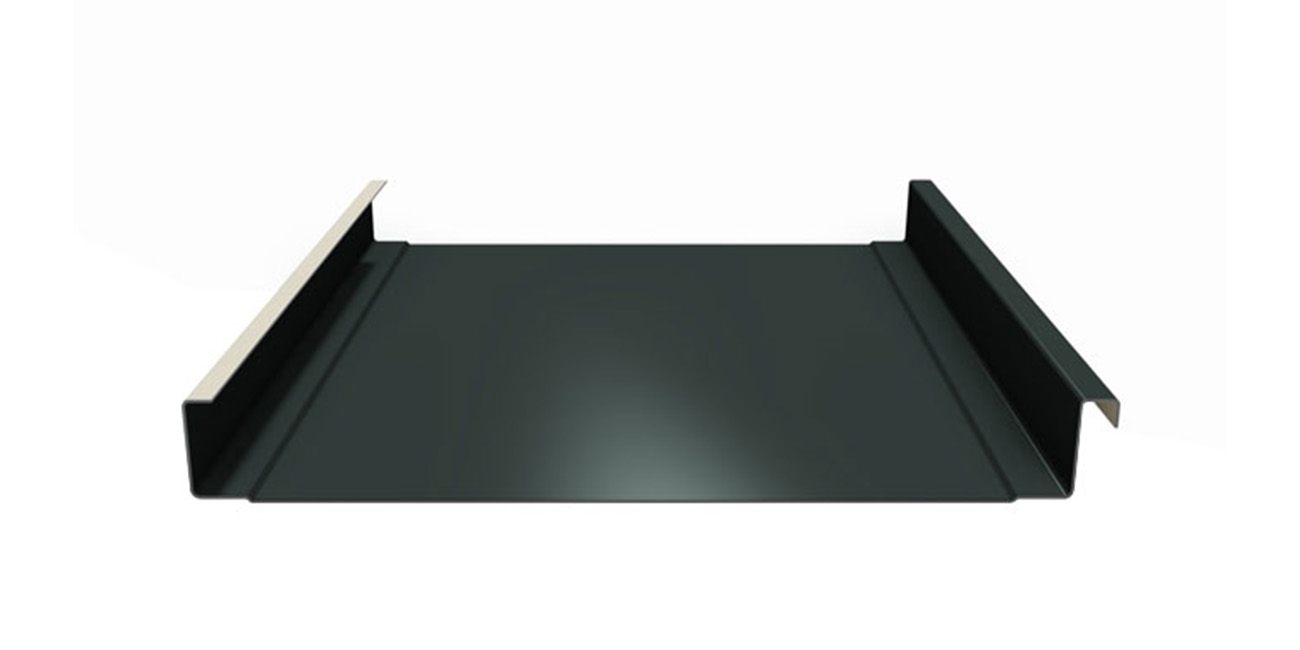

PowerSeam™ II

• Roof Slope: Minimum required - 1:12
• Purlin Spacing: Maximum – 5’ on-center
• Field Curving: Minimum radius 200’
• Factory Curving: Minimum radius 10’
• Panel Length: Maximum - 65’ Minimum - 4’
• Panel Width: 12”, 16”, 18”

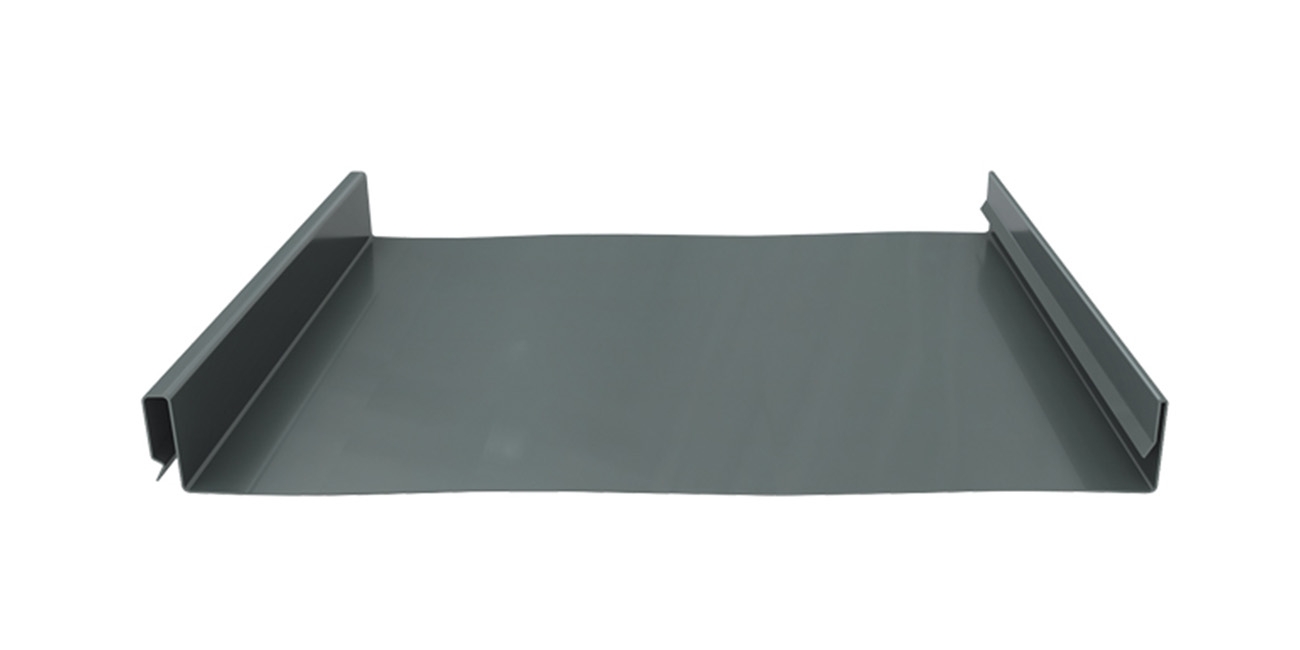

Thin Seam

Roof Slope: Minimum required - 1:12
Purlin Spacing: Maximum – 4’ on-center
Field Curving: Minimum radius 200’
Panel Length: Maximum - 47’ Minimum - 6’
Panel Width: 12”,16”,18"

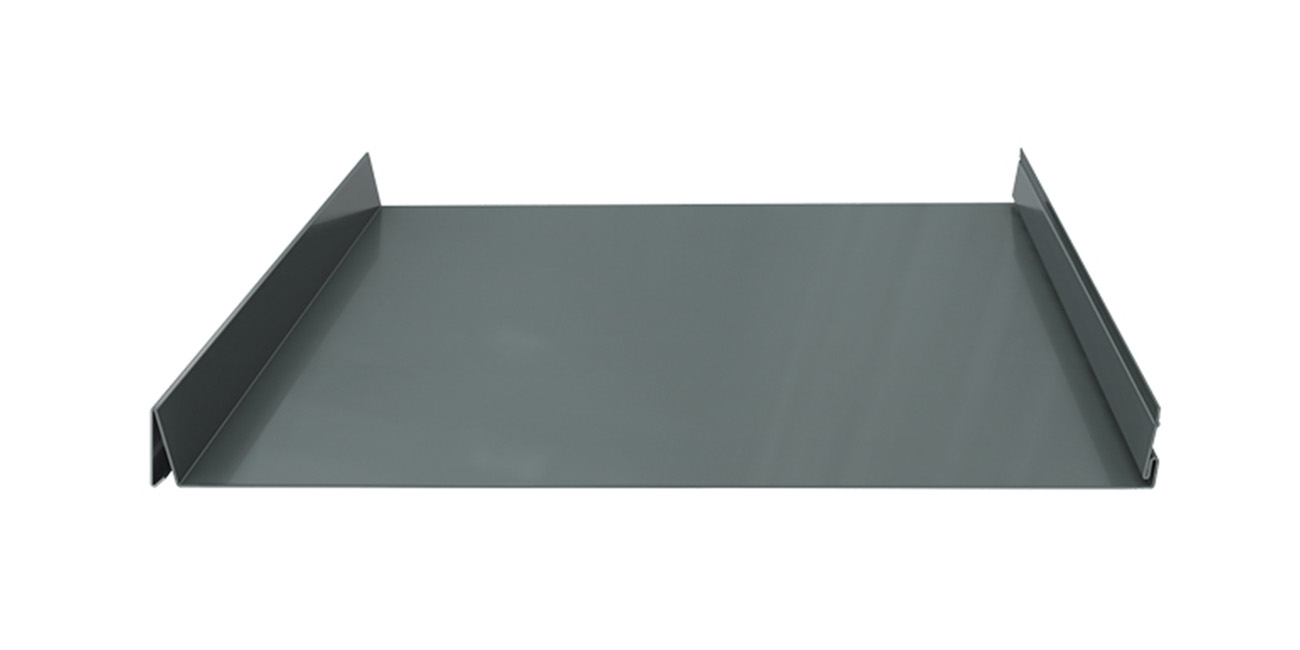

Slim Seam^®

Roof Slope: Minimum required - 1:12
Purlin Spacing: Maximum – 3’ on-center
Panel Length: Maximum - 47’ Minimum - 6’
Panel Width: 12”,16”
Field Curving: Minimum radius 100’

Box Rib HCF Series

Panel Width: 12", 16"
Hail Resistance: UL 2218 Class 4 Hail Impact Resistance
Fire Resistance: UL 790 Class A Fire Resistance
Panel Length: Maximum - 30′ Minumum - 2'

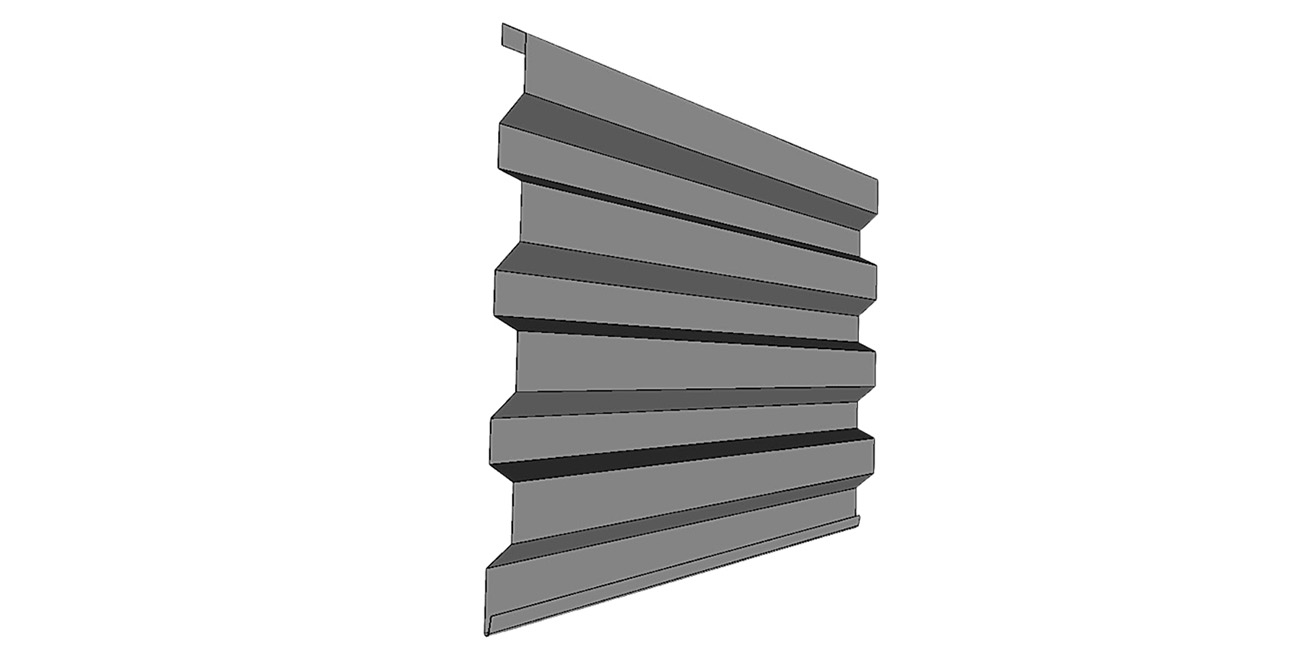

Silhouette HCF Series™

• Purlin Spacing: Maximum – 4’ on-center
• Field Curving: Minimum radius 200’
• Panel Length: Maximum – 30’
• Panel Width: 12”, 16”
