Residential Exposed Fastener Panels | Fabral

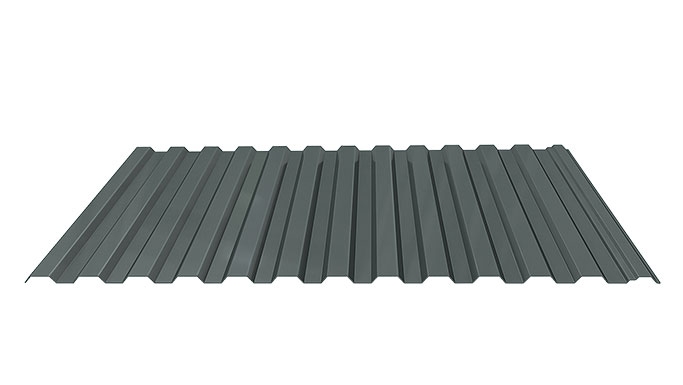

PrimeRib

• Minimum Roof Slope: 2½:12
• Panel Coverage: 33” coverage with 1/2” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Maximum Panel Length: Custom cut to lengths up to 40’

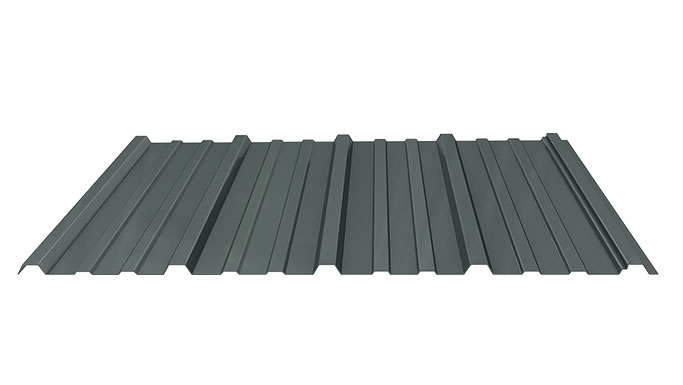

Proclad

• Minimum Roof Slope: 2½:12
• Panel Coverage: 36” coverage with 5/8” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Maximum Panel Length: Custom cut to lengths up to 40’

GRG

• Minimum Roof Slope: 2½:12
• Panel Coverage: 36” coverage with ¾” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Maximum Panel Length: Custom cut to lengths up to 40’

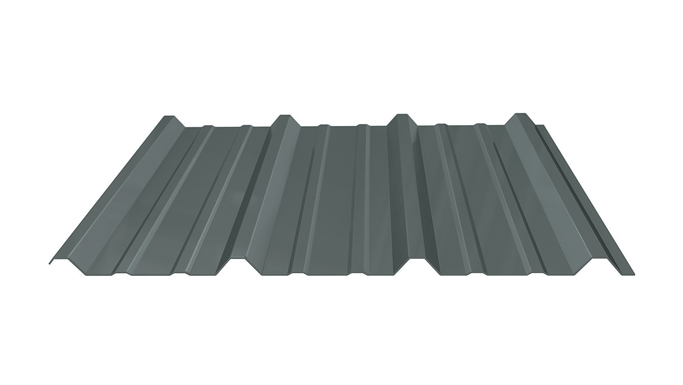

Mighti-Rib^®

• Minimum Roof Slope: 1:12
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Wind Uplift Test Rating: UL580 Class 1-90, #169
• Wind Uplift: Factory Mutal FM: Class 1 -150
• Maximum Panel Length: 45′
• Minimum Panel Length: 6′

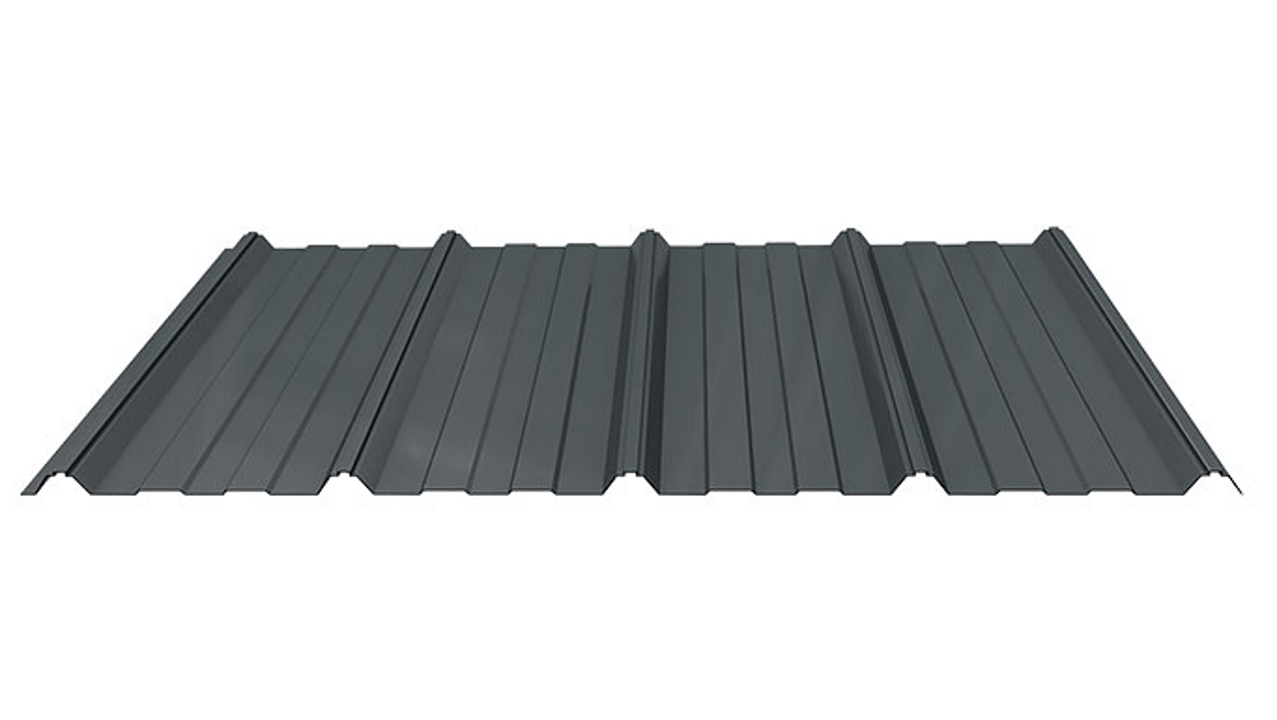

Grand Rib 3 Plus^®

• Minimum Roof Slope: 2½:12
• Panel Coverage: 36” coverage with ¾” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Wind Uplift Test Rating: UL580, Class 90
• Maximum Panel Length: Custom cut to lengths up to 40’

Grand Rib 3

• Minimum Roof Slope: 2½:12
• Panel Coverage: 36” coverage with ¾” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
• Wind Uplift Test Rating: UL580, Class 90
• Maximum Panel Length: Custom cut to lengths up to 40’

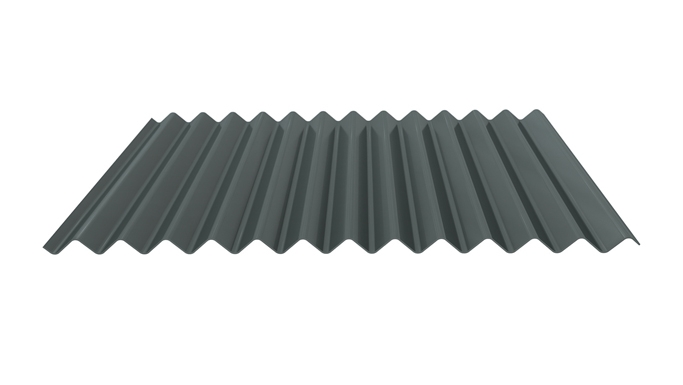

2 1/2" Corrugated

• Panel Width: Custom Cut Lengths up to 40'
• Minimum Roof Slope: 2½:12
• Panel Coverage: 24” wall coverage, 21 1/3” roof coverage with ½” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A

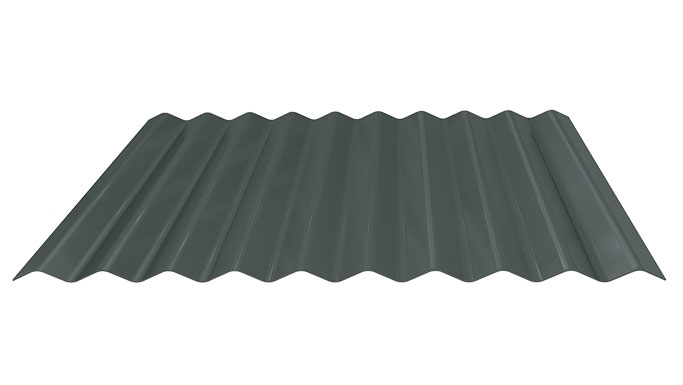

1 1/4″ Corrugated

• Minimum Roof Slope: 2½:12
• Panel Coverage: 24” coverage with ¼” rib height
• Hail Resistance: UL2218, Class 4
• Fire Resistance: UL790, Class A
