House in Itu / Studio Arthur Casas

House in Itu / Studio Arthur Casas - Image 2 of 17House in Itu / Studio Arthur Casas - Image 3 of 17House in Itu / Studio Arthur Casas - Image 4 of 17House in Itu / Studio Arthur Casas - Image 5 of 17House in Itu / Studio Arthur Casas - More Images+ 12

Itu, Brazil
  • Area Area of this architecture project Area:  950
  • Manufacturers Brands with products used in this architecture project
    Manufacturers:  Legrand / Bticino
  • Leading Architect: Arthur Casas
  • Design Team: Alexandra Kayat, Regiane Khristian, Renata Adoni
  • Contractor: EB Malucelli Construtora
  • Consultants: Systemac (Structural Engineer), Kitchens (Kitchen), Luis Carlos Orsini (Landscape), La Lampe (Lighting)
  • Suppliers: G Moveis Especiais (Millwork), Mekal (Inox Steel), Arthur Decor (Sun Shades), De Aluminio (Frames), Metalbagno/Deca (Metal), NPK (Stones), Altero/Floresta (Hardware), BTicino (Electric Hardware Finishings), Jatoba (Mosaic Tiles), Vallve (Bathtubs), Prima Matéria (Solum Paint Facade)
  • Interior Design: Casual; Micasa; Varuzza; Nanni Chinelatto; Atelier Ricardo Fasanello; Dpot; Arthur Decor; Emporium Cortinas; Passado Composto.
  • City: Itu
  • Country: Brazil
More SpecsLess Specs

Text description provided by the architects. Located about an hour from São Paulo, the house in Itu is a refuge for a young couple with children. A prime position on the banks of a small lake and the presence of a large yellow ipe tree led us to create a house that takes maximum advantage of the landscape.

House in Itu / Studio Arthur Casas - Image 7 of 17
© Fernando Guerra | FG+SG

The floor plan in L shape divides the house in a simple way: the main volume contains the children ́s room in the ground floor, a courtyard next to the home theater forms an intimate living room, a large living room opens onto the terrace and garden , erasing the boundaries between inside and outside. Above this volume are situated the master suite and a gym.

House in Itu / Studio Arthur Casas - Image 11 of 17

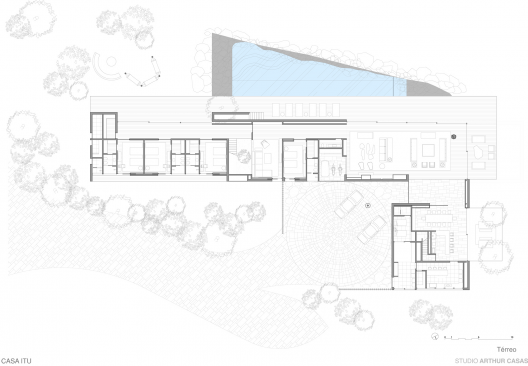

Plan

In the secondary volume are the dining room, kitchen and the service areas. On the first floor of this volume are the guest rooms.

House in Itu / Studio Arthur Casas - Image 4 of 17
© Fernando Guerra | FG+SG

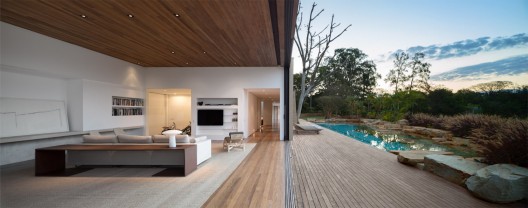

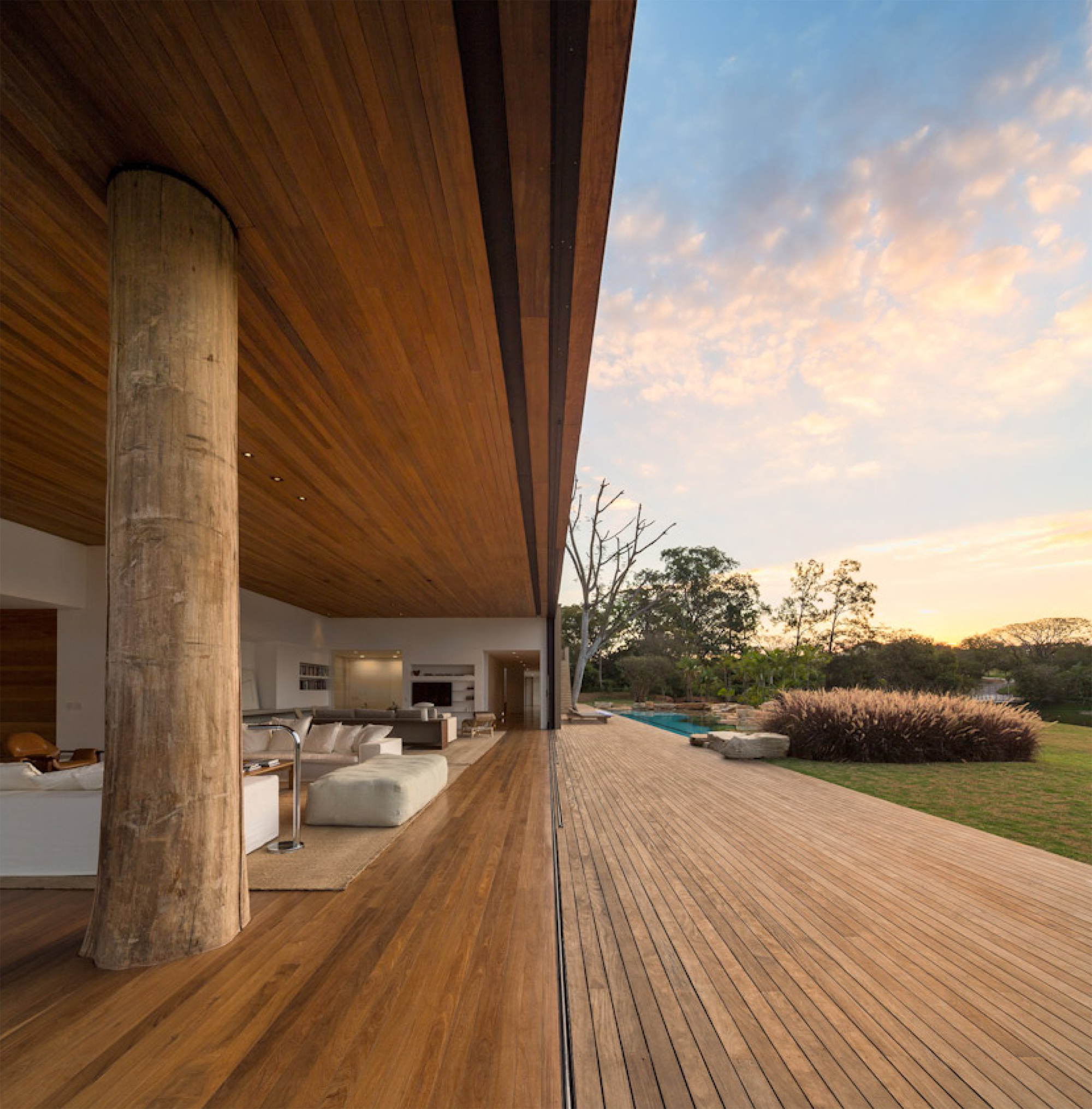

The house is marked by horizontality and fluidity between the spaces. The entry is made at the point where the two volumes converge; a low-ceiling guides the look to the external landscape. On one side the stone floor of the dining room goes towards the terrace, gradually merging into the garden. The living room is at a slightly lower level and has a higher ceiling. A tree trunk dominates this space, covering the single column present in the room. The windows slide completely and are hidden inside the walls, bringing the terrace and landscape into the house.

House in Itu / Studio Arthur Casas - Image 3 of 17
© Fernando Guerra | FG+SG

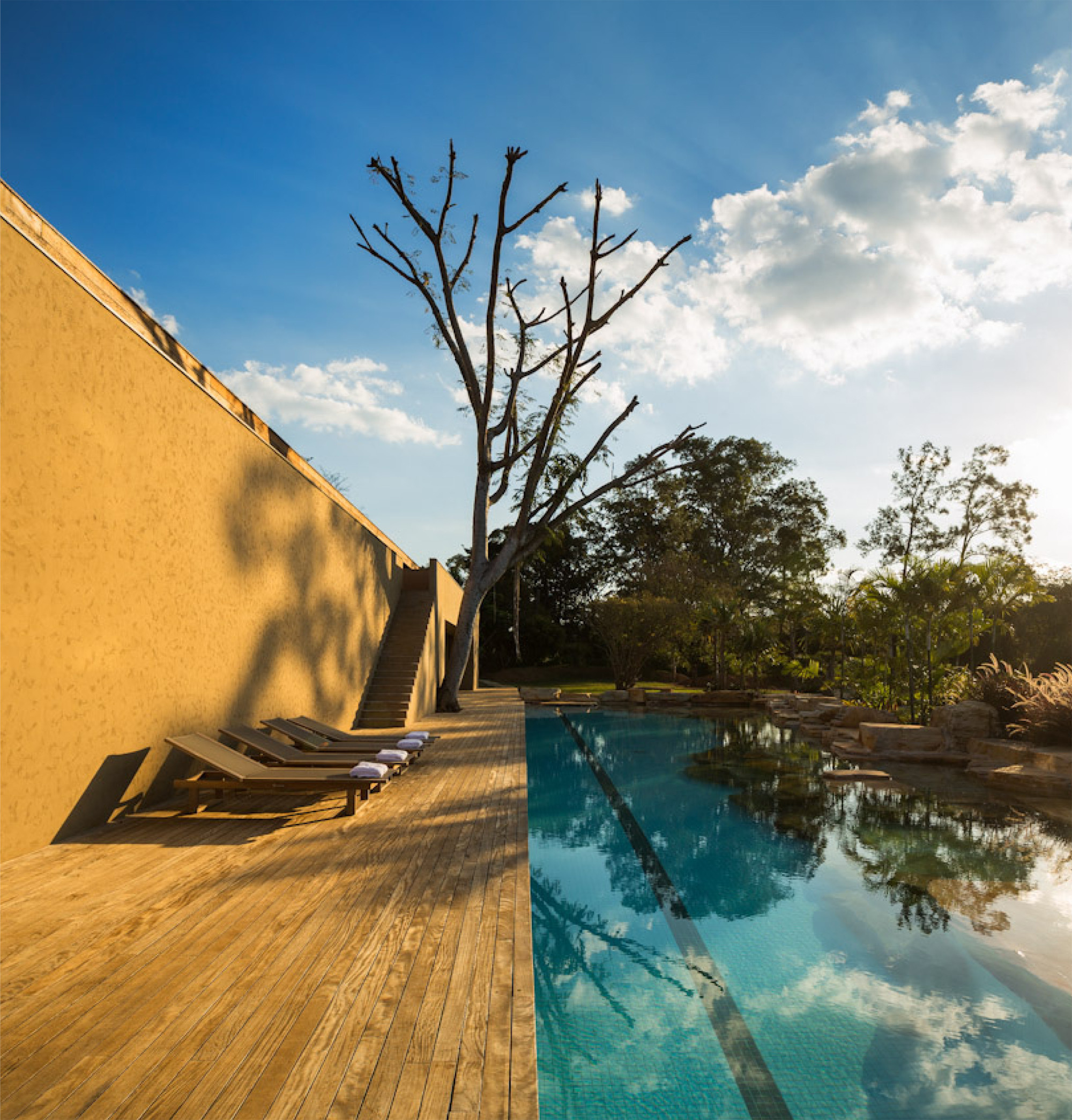

The wood floor and ceiling give a warm and domestic aspect to that space that is merged with nature. A second terrace room was created under the pergola in continuity with the living room. The whole side of the volume is dominated by a large wooden deck and a swimming lane, integrated with the landscape by rocks that penetrate the pool.

House in Itu / Studio Arthur Casas - Image 5 of 17
© Fernando Guerra | FG+SG

The old Yellow Ipe tree was preserved and merges with the architecture; a staircase was created aligned with that tree to connect the deck with the first floor. Several pathways are possible between inside and outside, being one of the most strong characteristics of the plan.

House in Itu / Studio Arthur Casas - Image 10 of 17
© Fernando Guerra | FG+SG

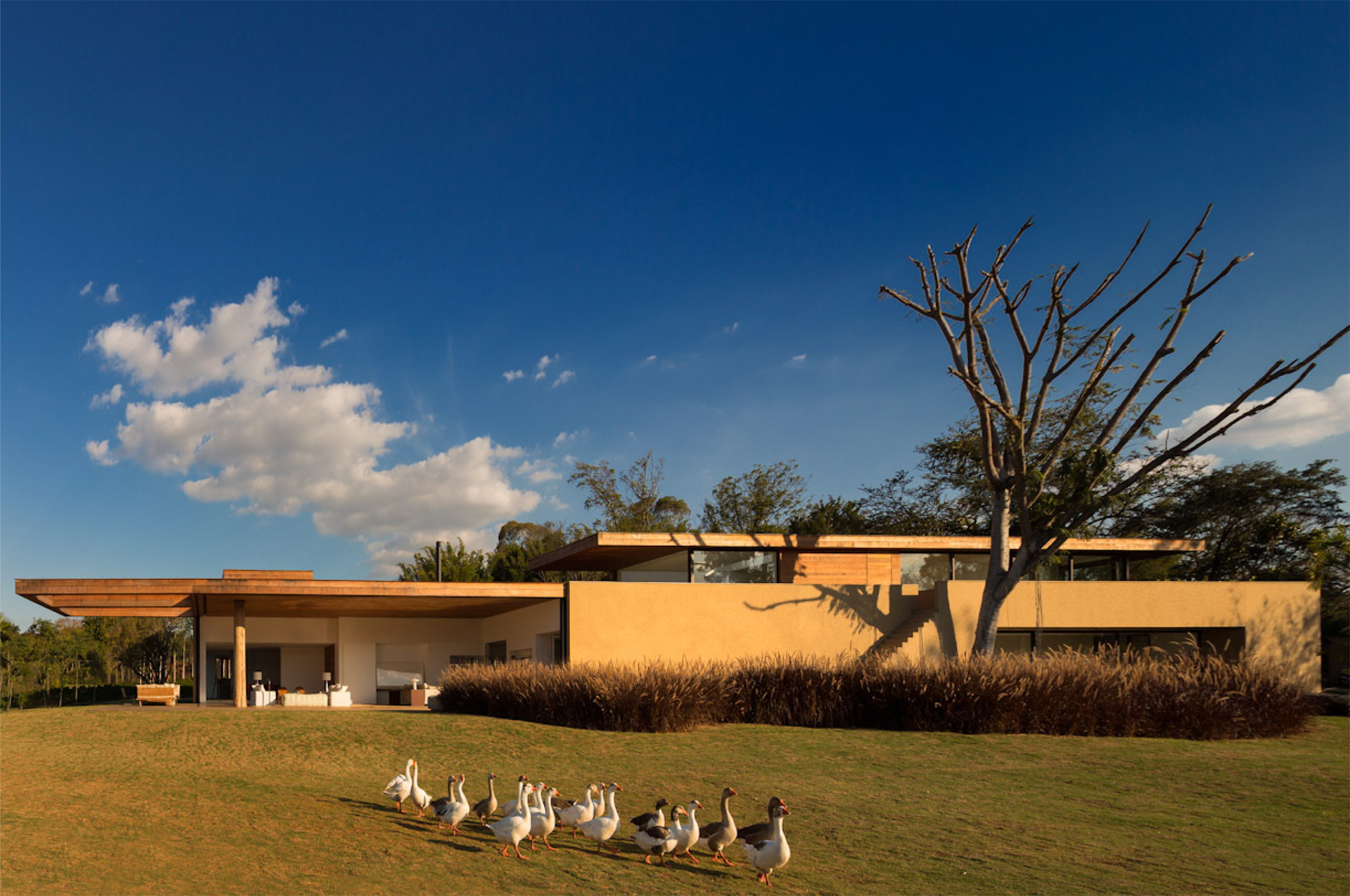

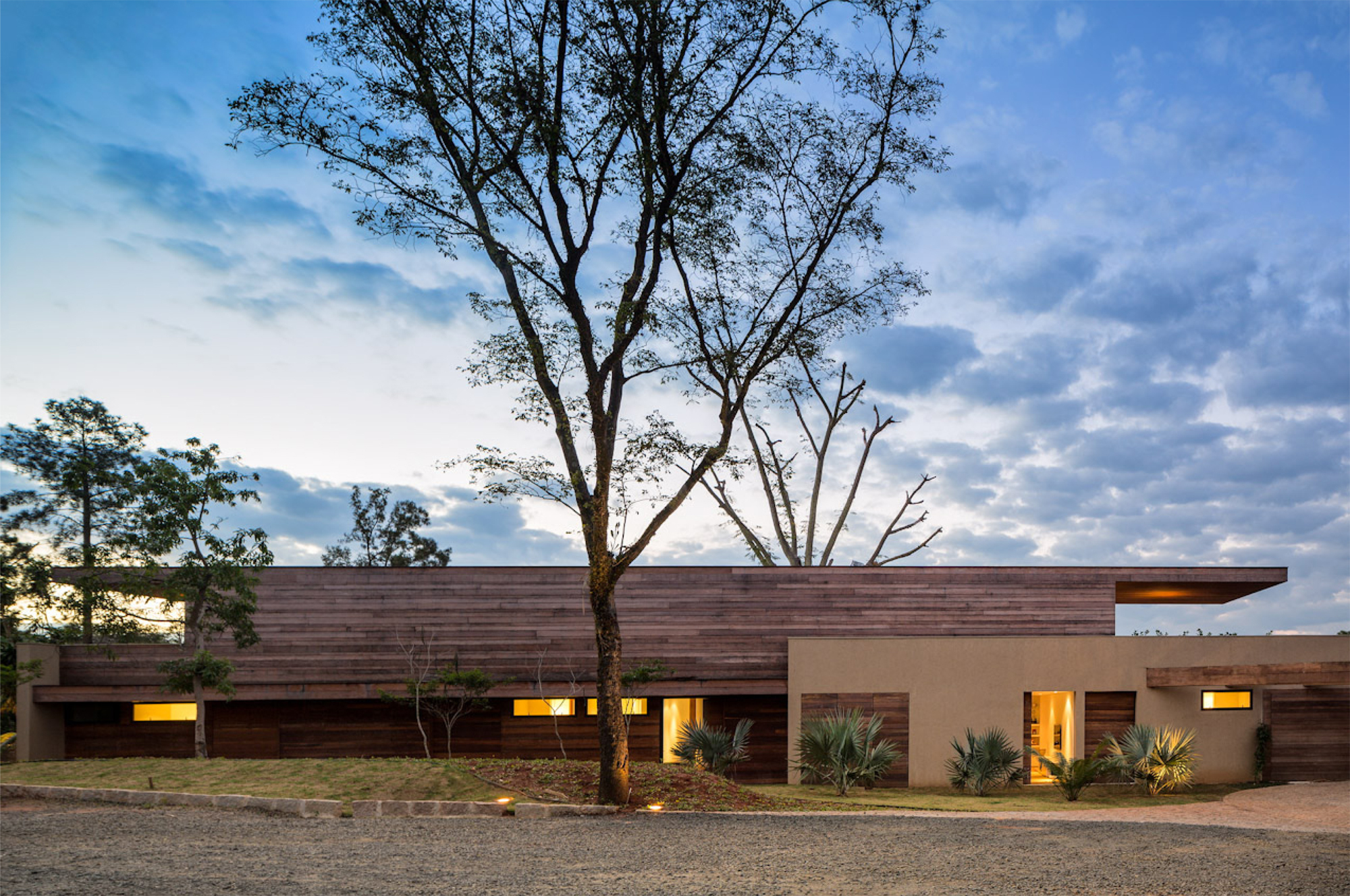

Covered in cumaru wood and painted with a colour that uses the local earth, even though it contains a large volume the house holds a discrete insertion in the landscape, its strong horizontality in dialogue with the tree canopies that surround the site.

House in Itu / Studio Arthur Casas - Image 13 of 17

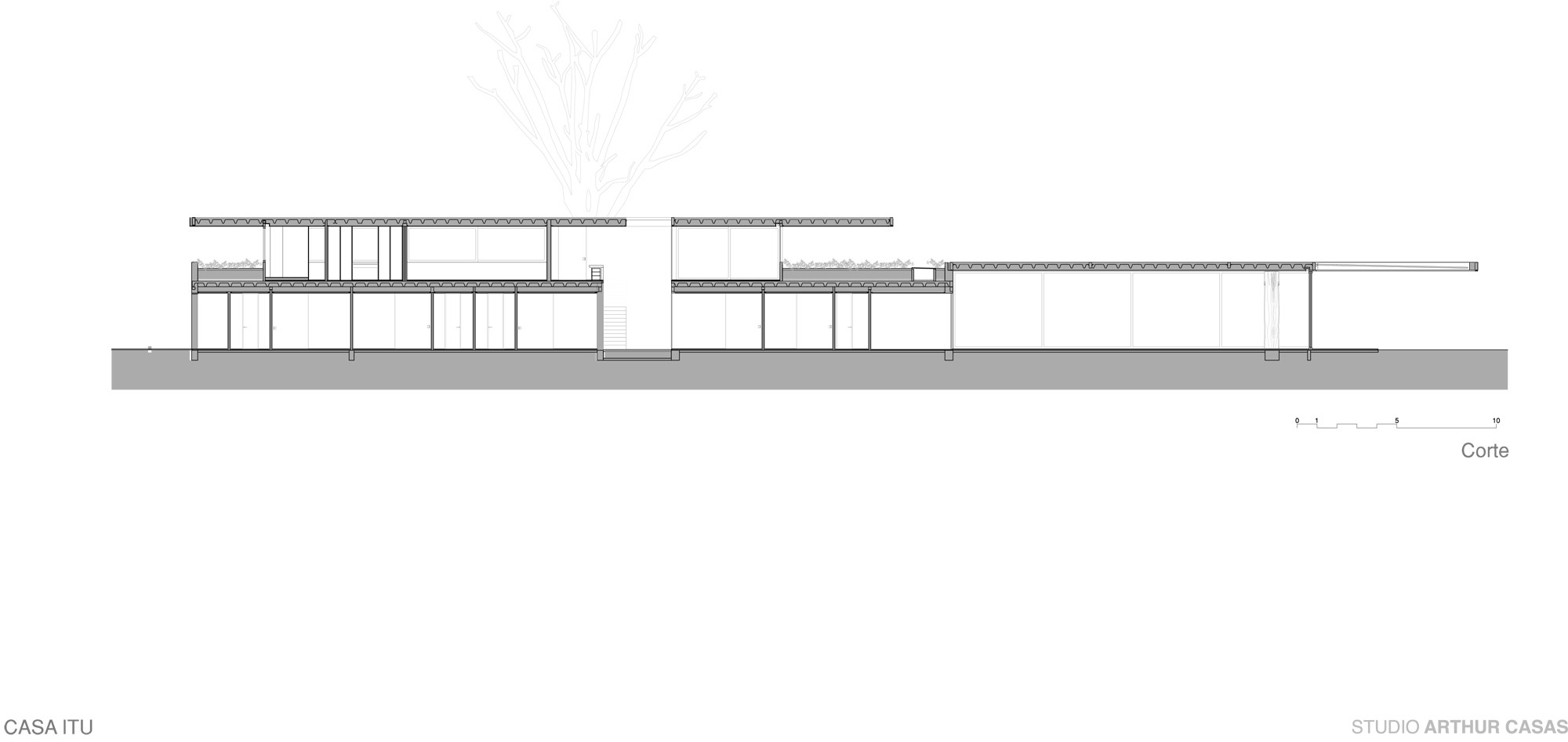

Section
