RPT Folding Doors - European Channel Series from ALUVAL

Available in United States
Use

RPT Folding Doors
Applications

Residential, hospitality, retail, corporate
Characteristics

Customizable, durable, versatile

More about this product

Aluval is a Spanish company, with over five decades of experience designing, manufacturing, and distributing aluminum profiles. The RPT Folding Doors - European Channel Series from Aluval provides a range of customizable options to meet various project needs.

Aluprom 35 HO

Save this picture!

Construction Possibilities

Union with folding
Crossbar maintaining the geometry of the frame
Gutter profile, condensation
Adjustable corner
Guide to integrate frame of 120, 130, 140, 145, 150, 160, 170, 180, 190, and 200mm.

Technical Specifications

Series	Folding series with thermal bridge break with “hidden leaf” design and European chamber
Frame Width	77mm frame with projection up to a total width of 84.5mm
Glazing	Variable glazing using EPDM rubbers; holes for 34, 36, 38, 40, 42 and 44mm glazing.
Frame & Blade Assembly	Double square on frames and leaves; Inverter cover clipped after glazing on site, recommended lateral screwing after clipping. Polyamide with housing for central gasket.
Fittings	Plastic kit composed of watertight gaskets for frames, leaf covers, windbreakers Central joint and large capacity drainage chamber Complementary thermal gasket in expanded EPDM λ=0.060W/mK European chamber fittings Wide range of locks Rigid polyisocyanurate (PIR) foam bars with a value of λ=0.023W/mK
Possible Openings	Fixed, practicable, tilt-and-turn opening, swing

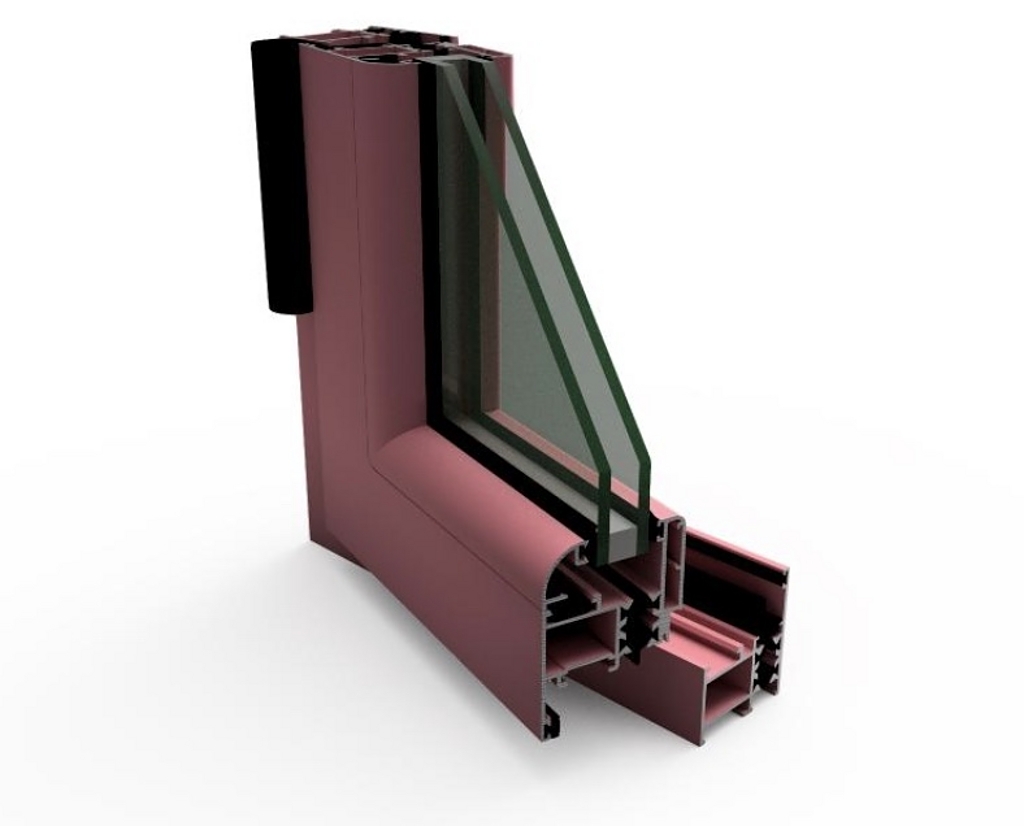

Aluprom 25

Save this picture!

Construction Possibilities

Window and door frames 52mm
Window frames with a flap of 25 and 40mm
Flush window, door, and camera leaves 40mm
Leaves with curved or straight finish
Union with folding
Adjustable corner and 90°
Profile of pourers, condensation
Straight and curved beads
Overlap of 30, 40, and 80mm
Guides to integrate frame 93, 120, 145, 150, and 180mm

Technical Specifications

Series	European chamber thermal break folding series
Frame Width	45mm window and door frames
Glazing	Gap beads from 9mm to 37.8mm
Frame & Blade Assembly	24mm hollow jointed blades Assemblies of frames and leaves: miter cut with squares
Fittings	Central joint and large drainage chamber European chamber hardware Wide range of locks for door and camera profiles, 40mm 3 point locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable for external opening, oscilobatient opening, parallel oscillating opening, swing, projector, folding in 3, 4, 5, 6 or 7 sheets

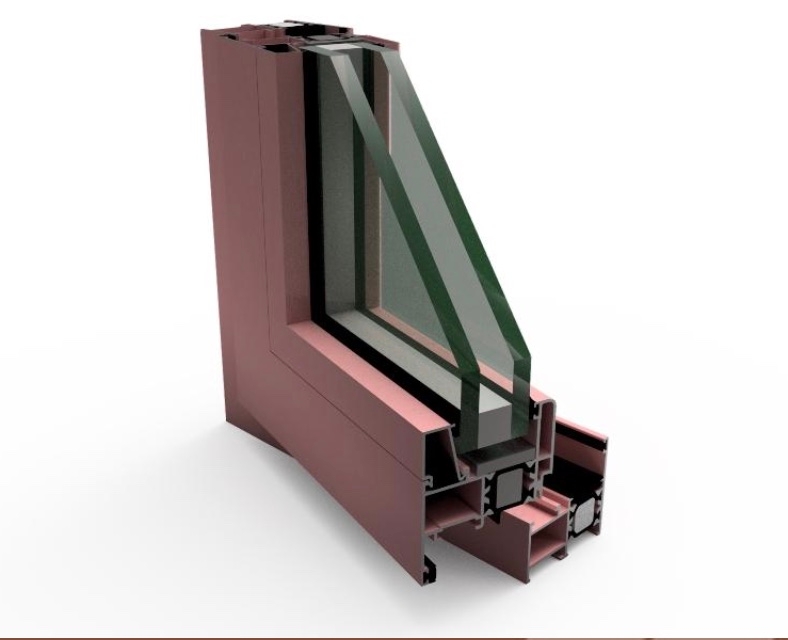

Aluprom 36

Save this picture!

Construction Possibilities

Window and door frames
Window frames with 25 and 40mm overlap
Flush window and door leaves
Blades with curved or straight finish
Adjustable corner
Union with folding
Gutter profile, condensation
Straight or curved beads
Guide to integrate frame of 93, 102, 120, 130, 145, 150, 160, 180, and 190mm

Technical Specifications

Series	Folding series with European chamber thermal bridge break
Frame Width	54mm frames
Glazing	Hollow beading from 12.8 to 47mm
Frame & Blade Assembly	Miter cut with squares 33mm hollow sheet
Fittings	Central joint and large capacity drainage chamber European chamber fittings Wide range of locks for 40 door leaf and chamber profiles 3 point locks Polyethylene foam bands with a value λ=0.036 W/Mk
Possible Openings	Fixed, Practicable, Practicable for external opening, Tilt and turn opening, Oscilloparallel opening, Swing, Projector, Folding in 3, 4, 5, 6 or 7 sheets

Aluprom 34 HO

Save this picture!

Construction Possibilities

Union with folding
Discharge profile, condensation
Crossbar maintaining the geometry of the frame
Corner adjustable
Guide to integrate frame of 93, 102, 120, 130, 145, 150, 160, 180, and 190mm.

Technical Specifications

Series	Folding series with thermal break with "hidden blade" design and European chamber
Frame Width	54mm with overhang up to a total width of 61.3mm
Glazing	Variable glazing by EPDM rubber; holes for glazing of 14, 16, 18, 20, 22, and 24mm
Frame & Blade Assembly	Mitre cutting and joining using squares Cover inverter clipped after glazing on site, recommended screwed side after clipping.
Fittings	Central gasket and large capacity drainage chamber European chamber fittings Wide range of locks
Possible Openings	Fixed, practicable, practicable outside opening, tilt-and-turn opening, swing, projector

Aluprom 38

Save this picture!

Construction Possibilities

Window frames, door and leaf 65mm
Window frame with a flap of 25 and 40mm
Flush window and door sheets
Profile of pourers, condensation, and union of frames
Adjustable corner
Design of sheets with straight or curved finish
Straight or curved beads
Guide to integrate frame 93, 102, 120, 130, 145, 150, 160, 180, and 190mm

Technical Specifications

Series	Folding series with thermal break of European chamber
Frame Width	58mm
Glazing	Glazing beads from 16.8 to 50.8mm
Frame & Blade Assembly	Miter cut and union using squares Adjustable blade with 24mm hole
Fittings	Central joint and large drainage chamber European chamber hardware Wide range of locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, parallel tilt opening, swing, projector, pivoting, folding in 3, 4, 5, 6, or 7 sheets

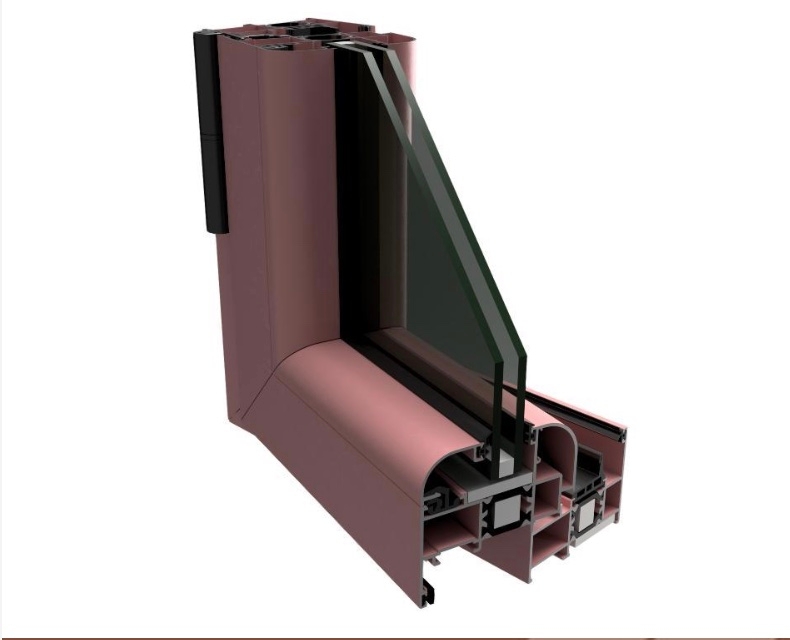

Aluprom 44

Save this picture!

Construction Possibilities

Window and door frames
Window frame with flap of 25 and 40mm
Flush window and door sheets
Profile of pourers and condensation
Union of frames
Adjustable corner
Design of the sheets with straight and curved finish
Straight or curved beads
Guide to integrate frame 93, 102, 120, 130, 140, 145, 150, 160, 170, 180, 190, and 200 m

Technical Specifications

Series	Folding series with thermal break of European chamber
Frame Width	67mm
Glazing	Fixed beads from 26 to 60mm
Frame & Blade Assembly	Miter cut and joint by squares Blade with hole adjustment 33mm
Fittings	Central joint and large drainage chamber European chamber hardware Wide range of locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, parallel tilt opening, swing, projector, pivoting, folding in 3, 4, 5, 6, or 7 sheets

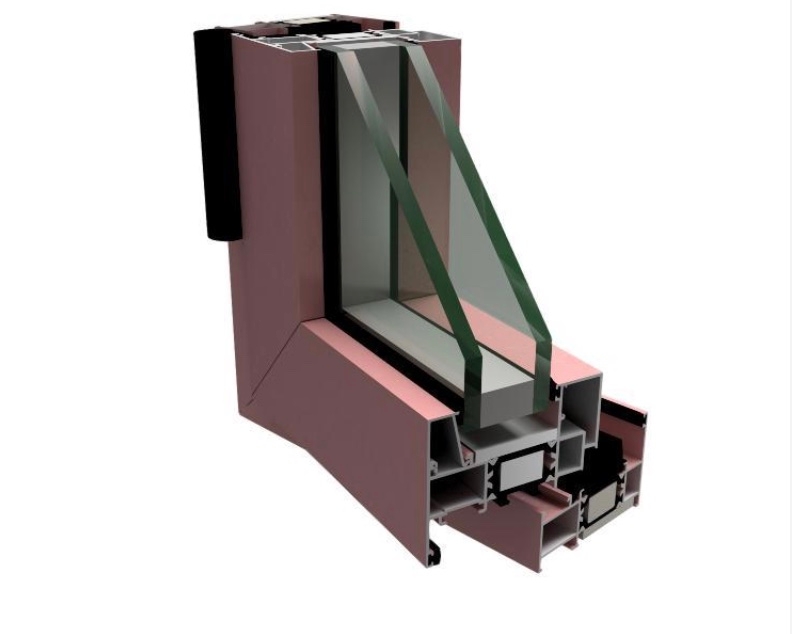

Aluprom 46

Save this picture!

Construction Possibilities

Window and door frames
Window frames with a flap of 25 and 40mm
Window beams, door, and parteluces
Flush window and door sheets
Profile of pourers, condensation, and union of frames
Design of both window and door leaves with straight and curved finish
Straight or curved beads
Adjustable corner
Guide to integrate frame 120, 130, 140, 145, 150, 160, 170, 180, 190, and 200 mm.

Technical Specifications

Series	Folding series with thermal break of European chamber
Frame Width	77.2mm
Glazing	Beads from 36 to 70mm
Frame & Blade Assembly	Miter cut and union using squares Blade with hole 43mm
Fittings	EPDM central joint and large capacity drainage chamber Supplementary thermal joint in EPDM expanded λ=0.060W/Mk European chamber hardware Wide range of locks Polyisocyanurate (PIR) rigid foam bars with a value λ=0.023W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, oscilloparallel opening, swing, projector, pivoting, folding in 3, 4, 5, 6, or 7 sheets
