Movement joints are essential for accommodating natural shifts in the structure of a building. These profiles allow for movement at transitions, such as doorsills and walls, protecting the tile assembly from stress-related damage. They also prevent surface water penetration, offering a maintenance-free solution that extends the life of the installation.

Profiles not only protect tiles but also open up endless design possibilities while ensuring the structural integrity of any tiled surface.

Mortar Bed Joint Profiles

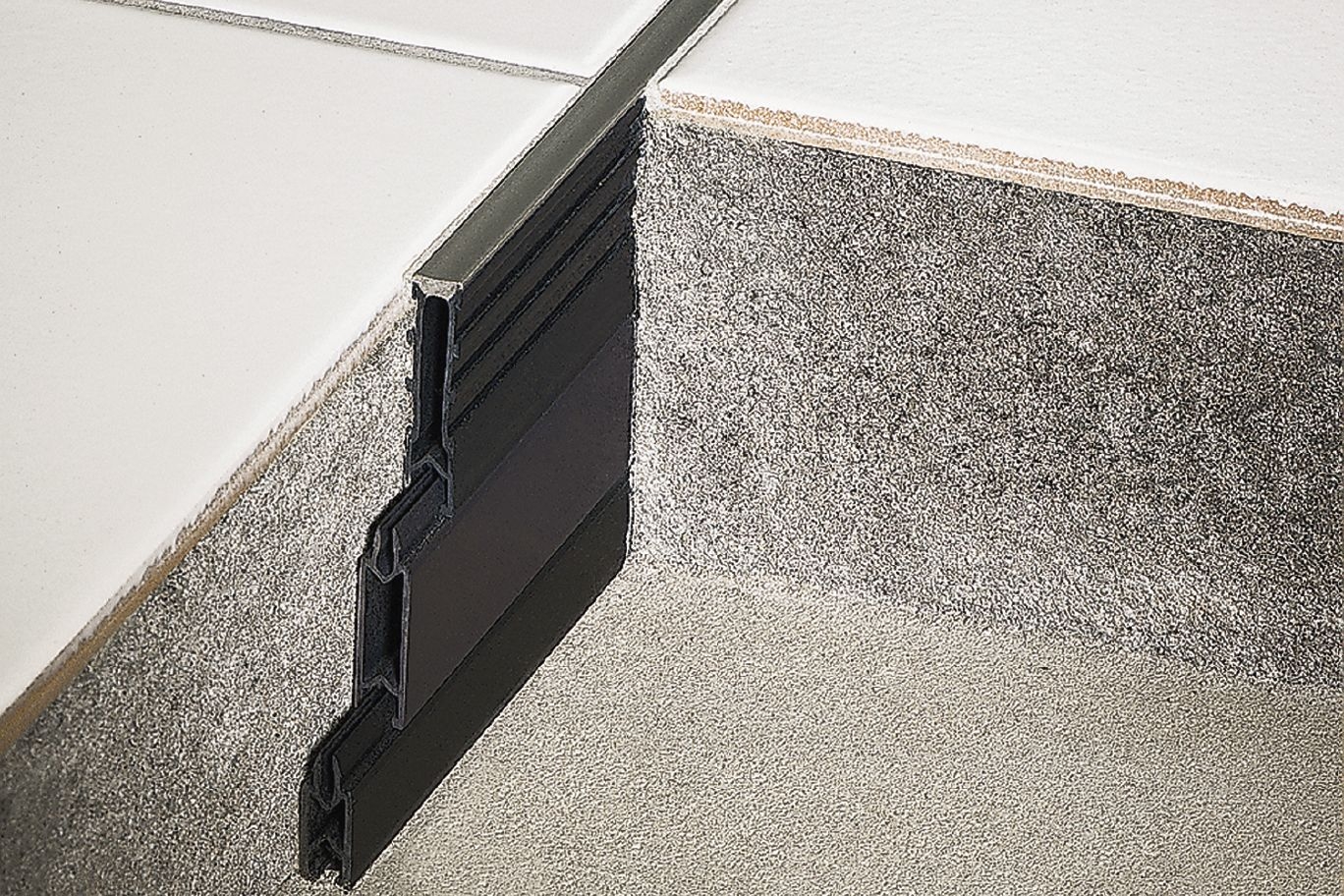

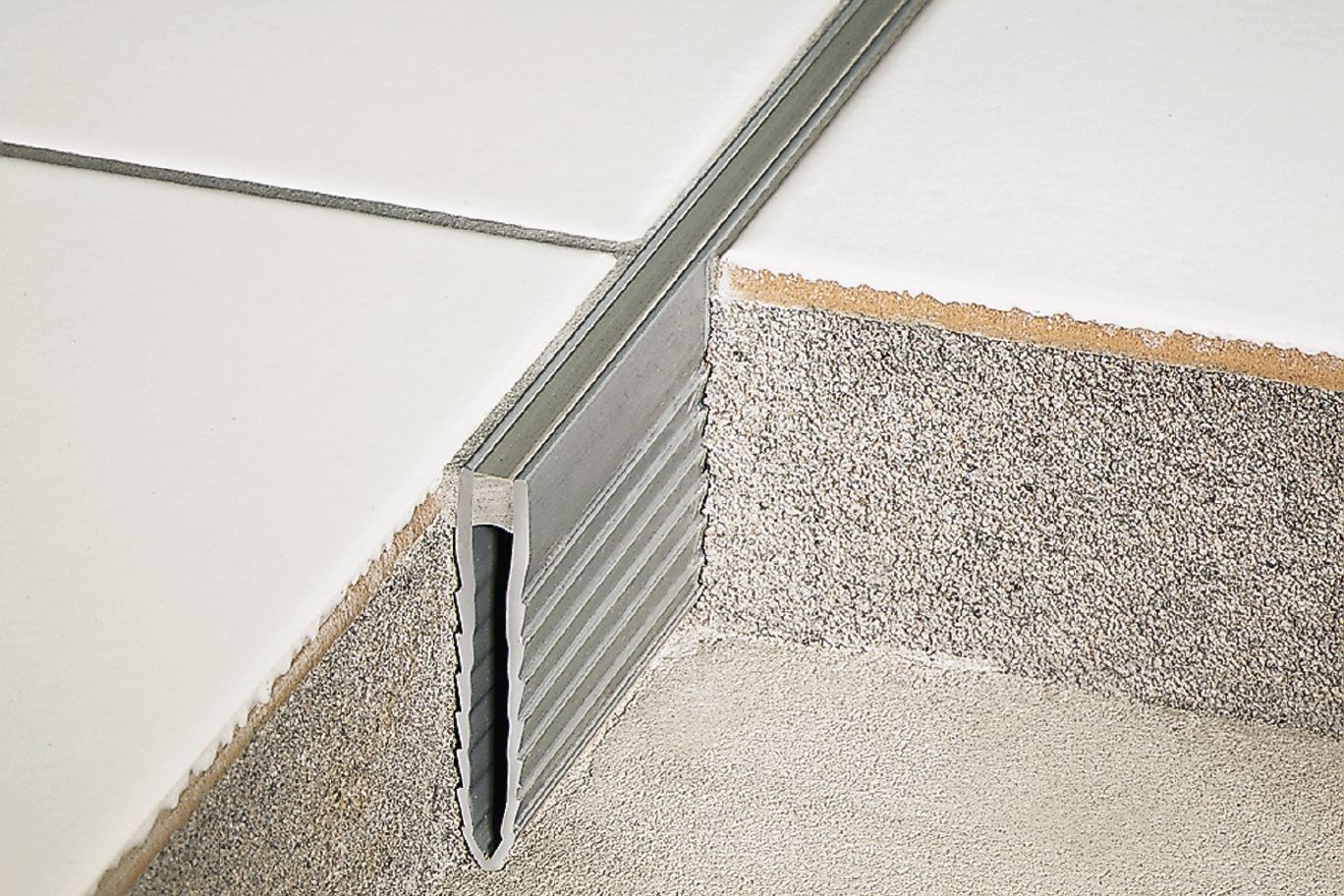

Schluter®-DILEX-MOP	Schluter®-DILEX-MP/-MPV	Schluter®-DILEX-DFP

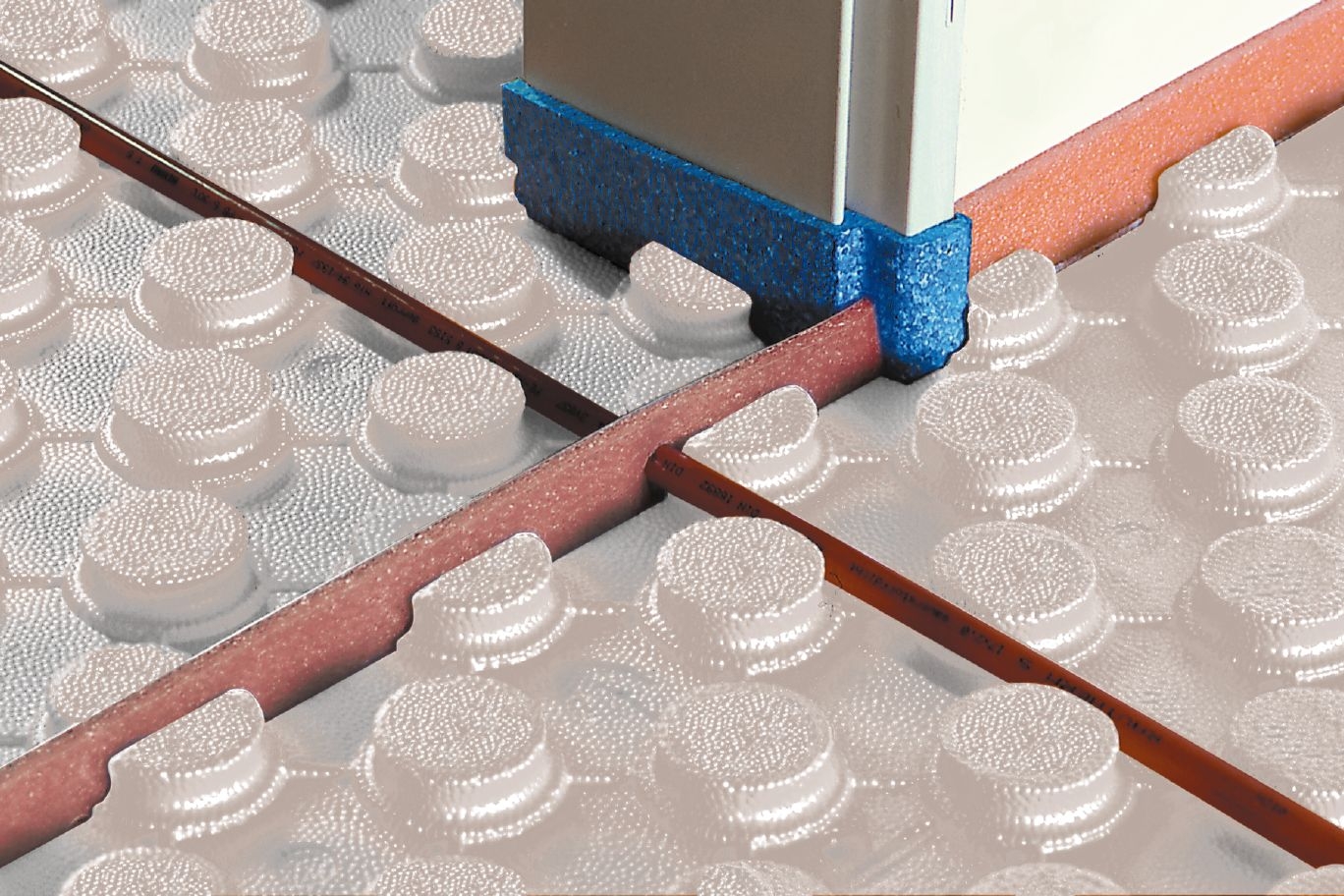

PVC screed joint profile with rigid PVC side sections that protect tile edges and a soft PVC movement zone.	Screed joint profile with rigid PVC sides and a soft CPE movement zone.	Movement joint profile is designed for dividing screed surfaces, installed at door areas for dividing screed surfaces.

Inside Corner Movement Joints

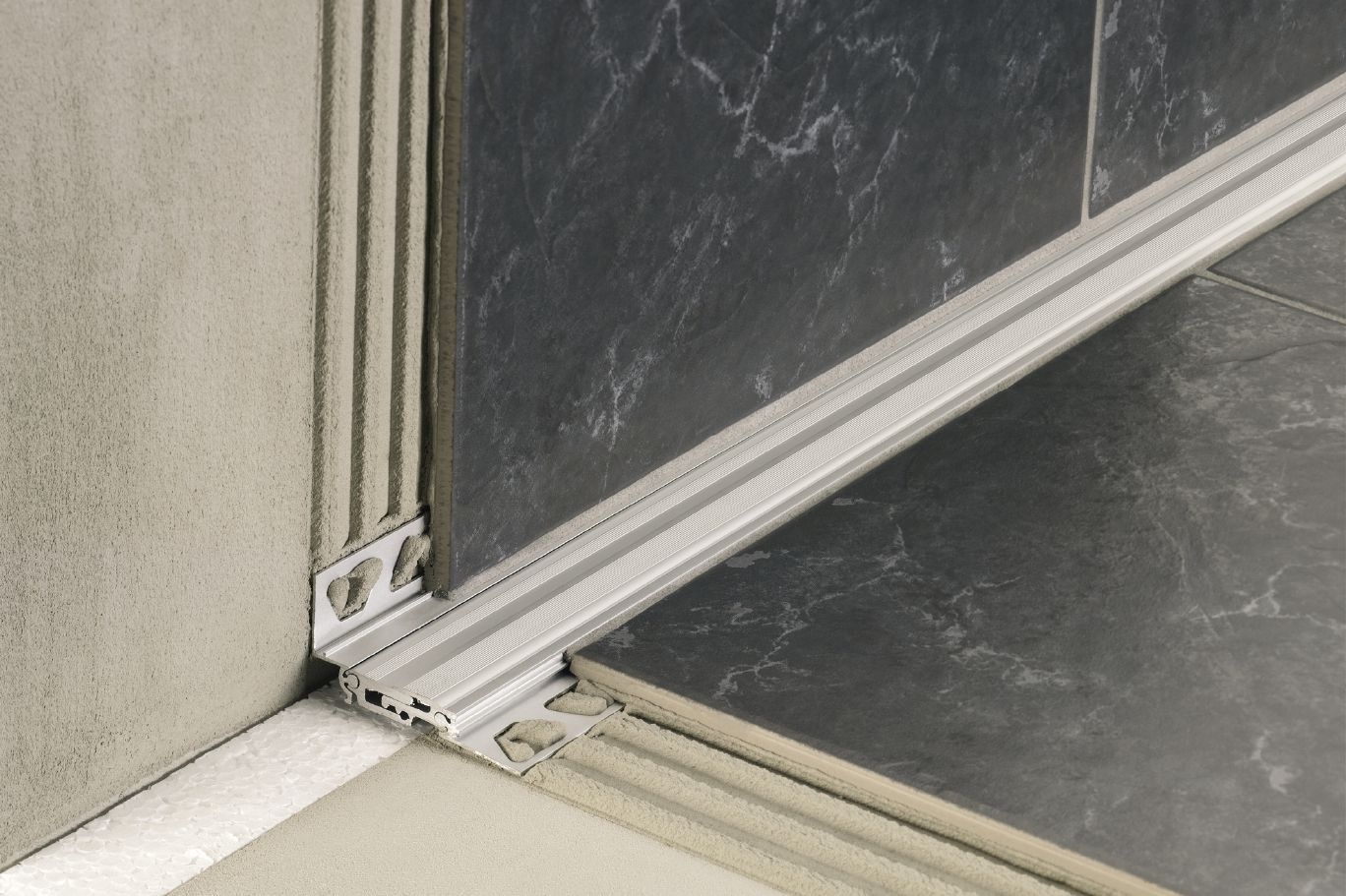

Schluter®-DILEX-BTO	Schluter®-DILEX-EKE	Schluter®-DILEX-HK

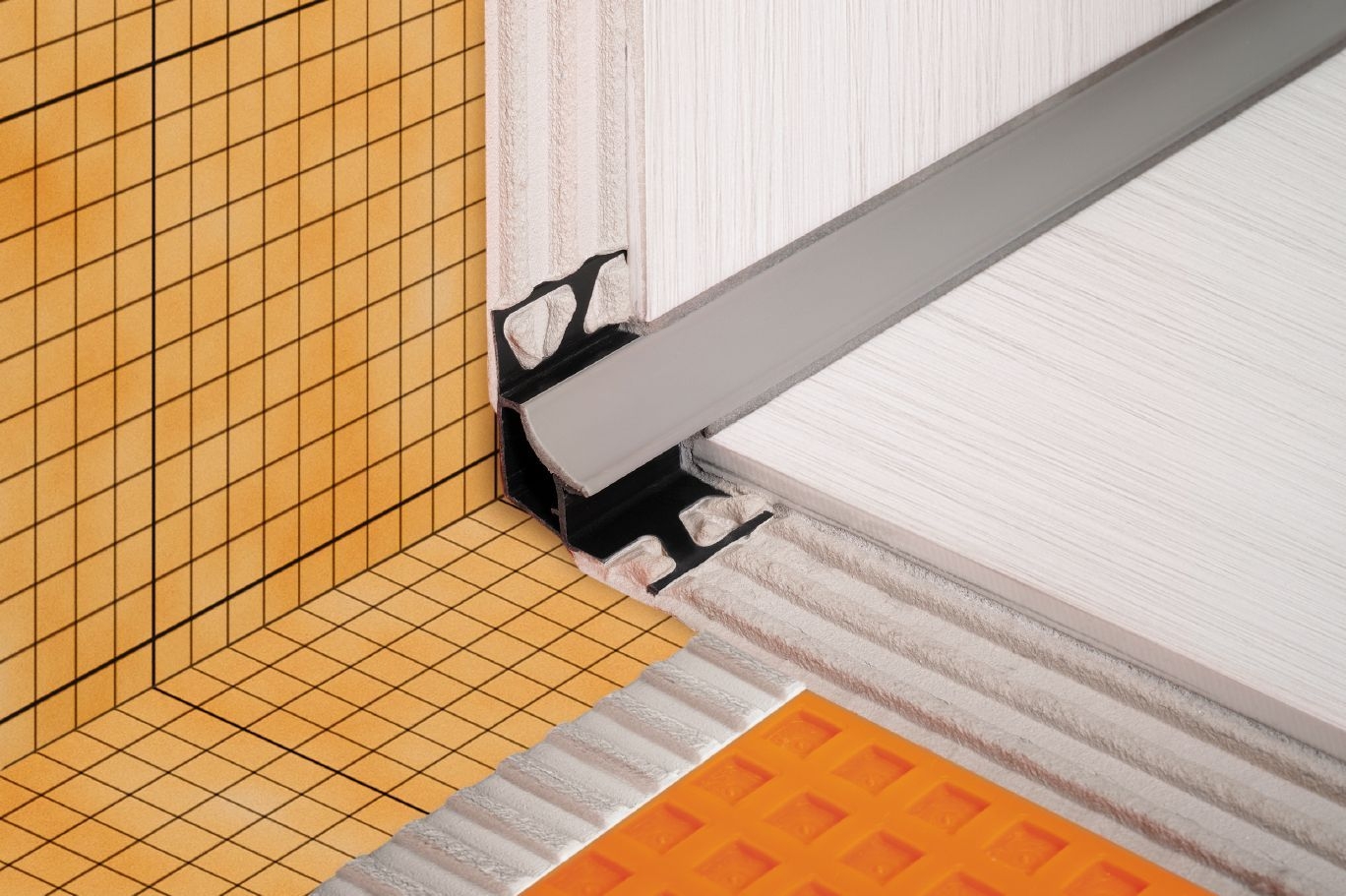

Expansion joint profile for bridging joints at floor/wall transitions that accommodates movement via a telescopic center section.	Movement joint profile for inside wall corners, and floor/wall transitions with rigid PVC anchoring legs and a movement zone that separates individual tile fields.	PVC cove-shaped profile with a CPE movement zone with individual tile fields for floor/wall transitions.

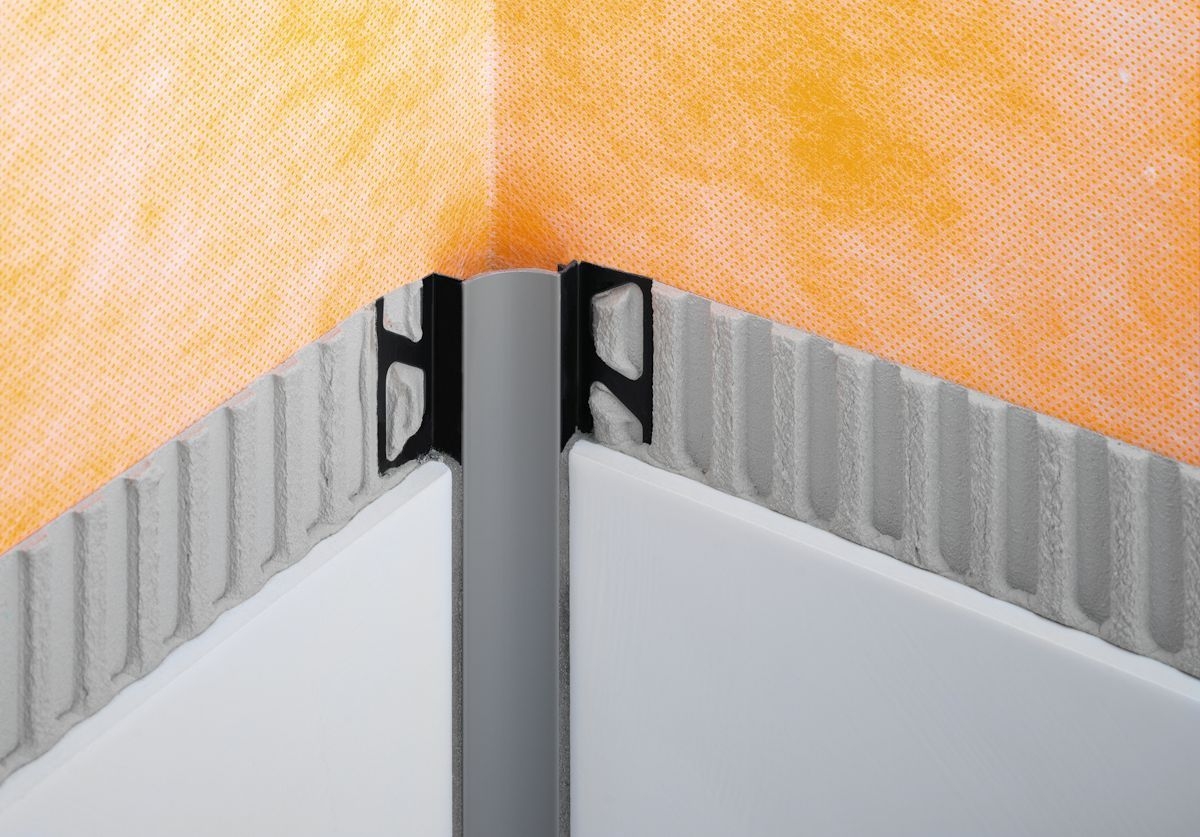

Schluter®-DILEX-HKS	Schluter®-DILEX-HKW

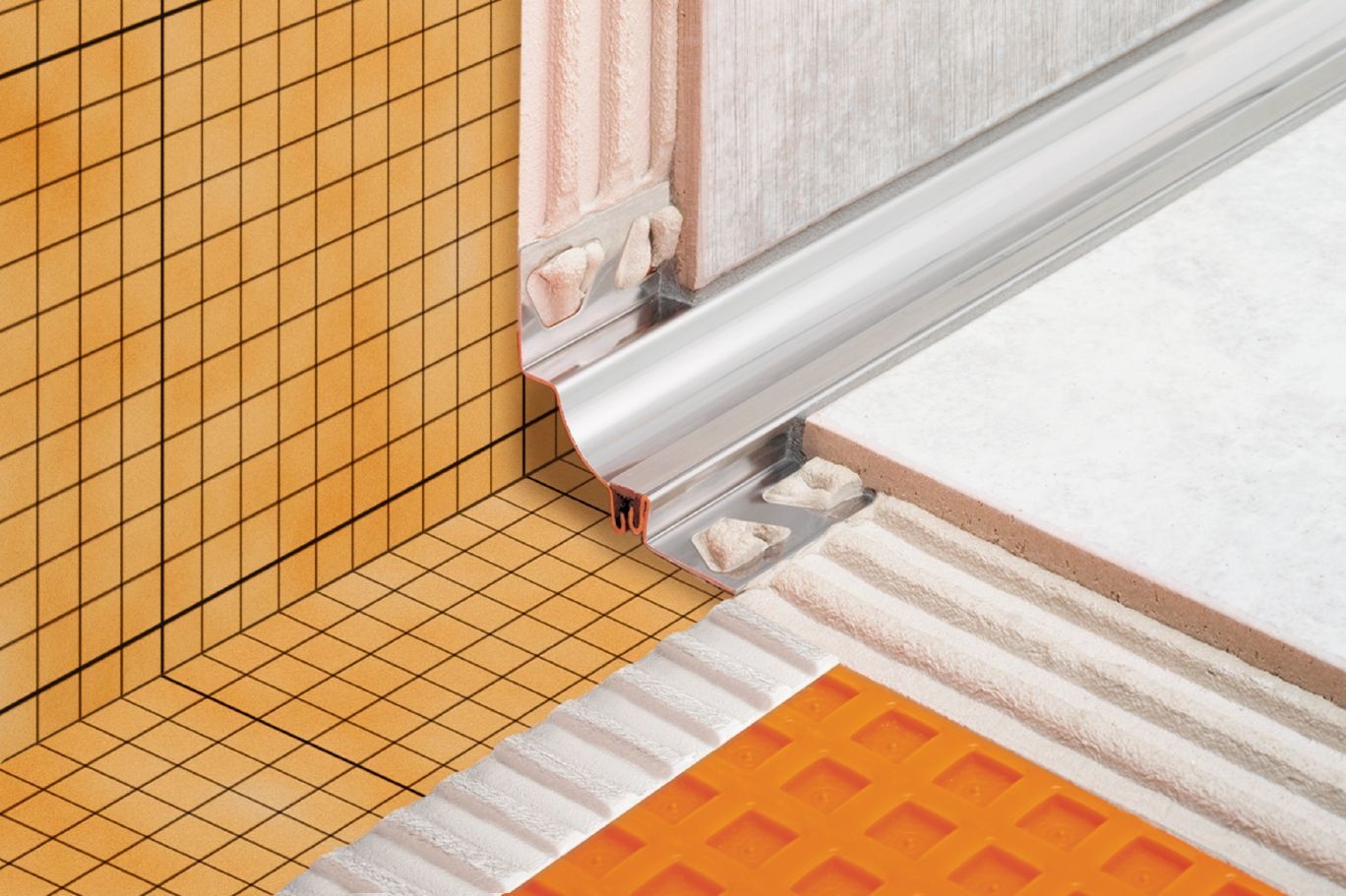

Stainless steel cove-shaped profile for floor/wall transitions, heavy-duty, and comes with dissimilar-sized tiles.	PVC cove-shaped profile for inside wall corners and floor/wall transitions designed for applications where limited movement is expected.

Surface & Expansion Joints

Schluter®-DILEX-AKWS	Schluter®-DILEX-BT	Schluter®-DILEX-BTS

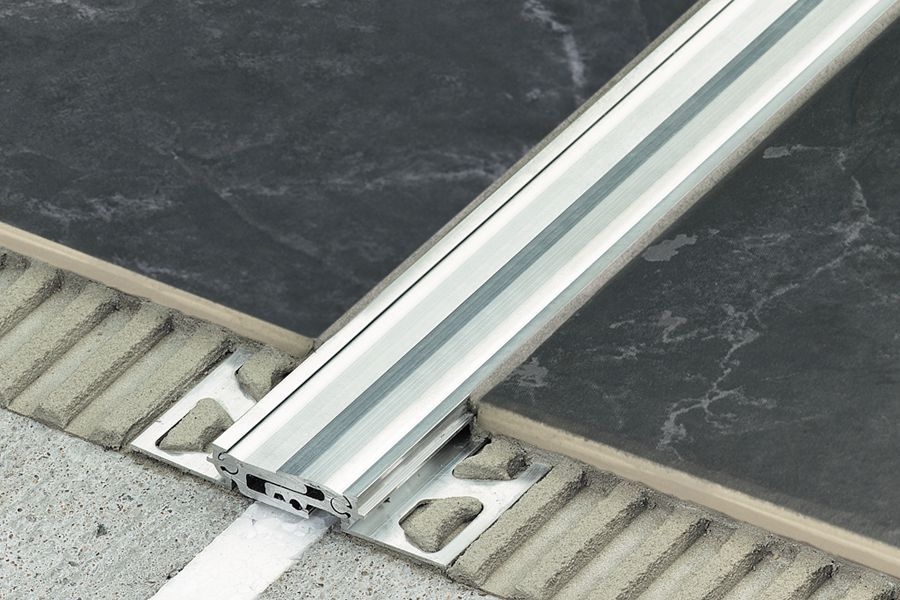

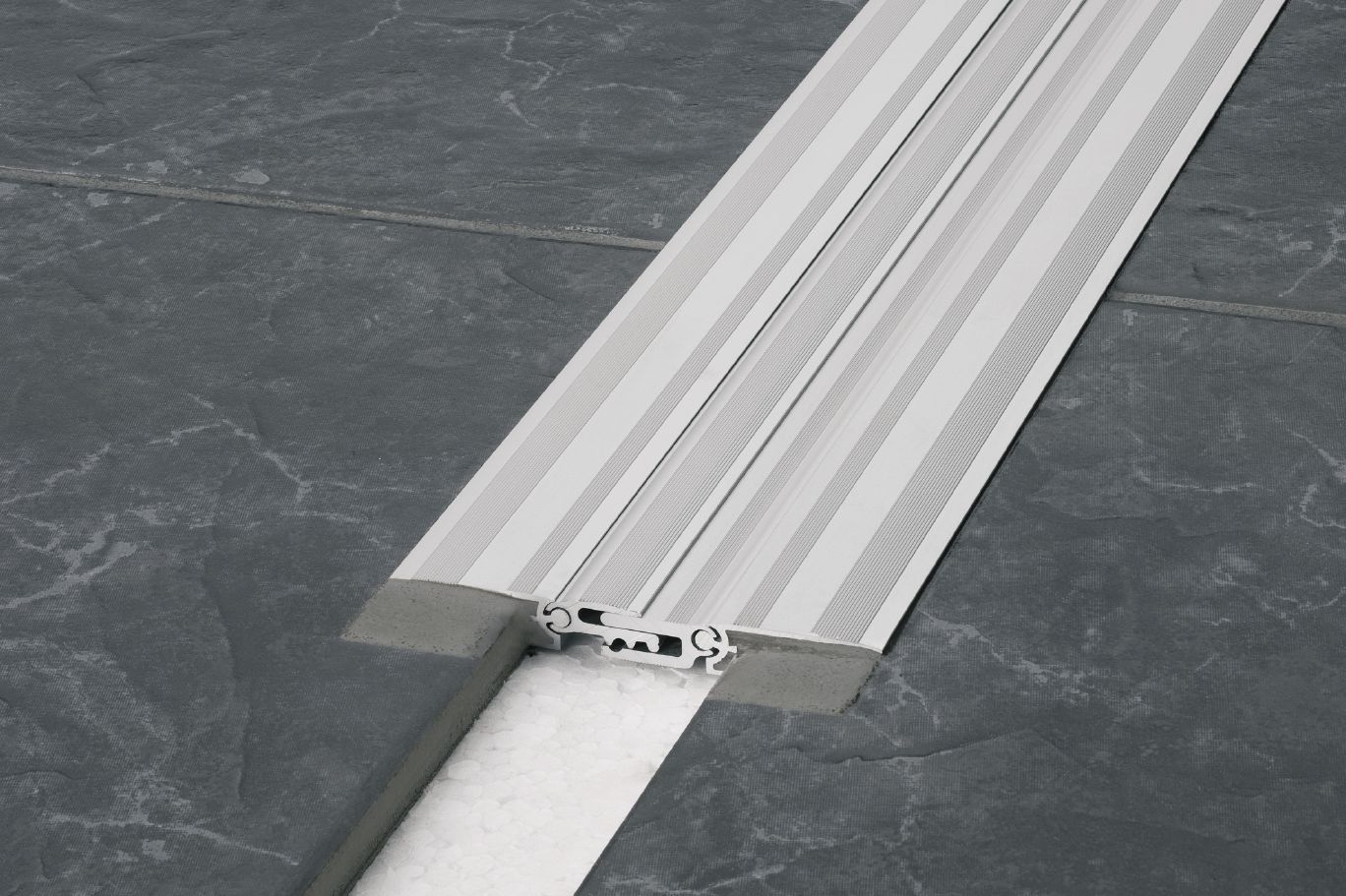

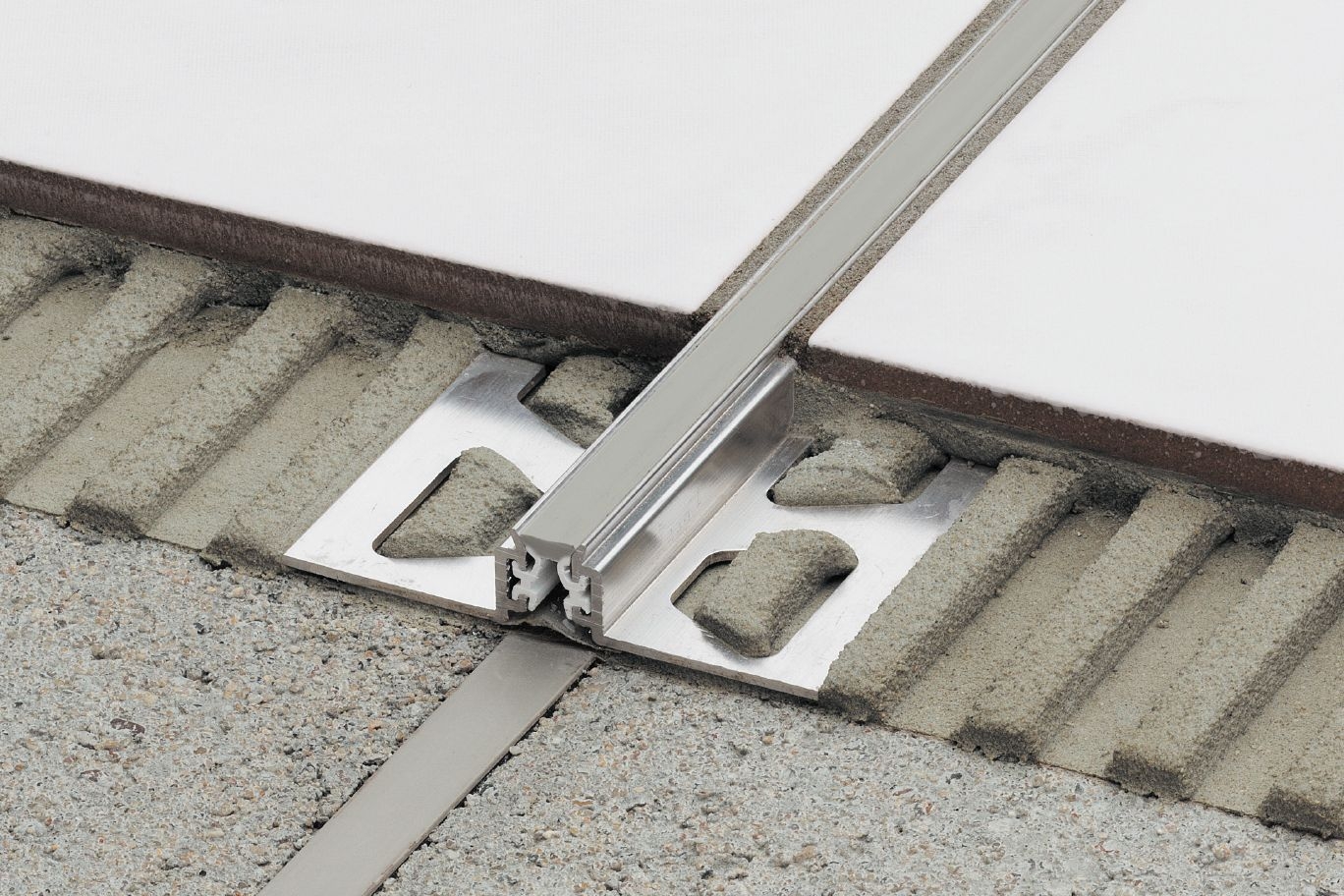

Surface joint profile with a PVC movement zone, made with aluminum anchoring legs that protect tile edges.	Heavy-duty expansion joint profile bridges expansion joints and accommodates movement via the telescopic center section.	Retrofit, heavy-duty expansion joint profile that bridges expansion joints and accommodates movement via the telescopic center section.

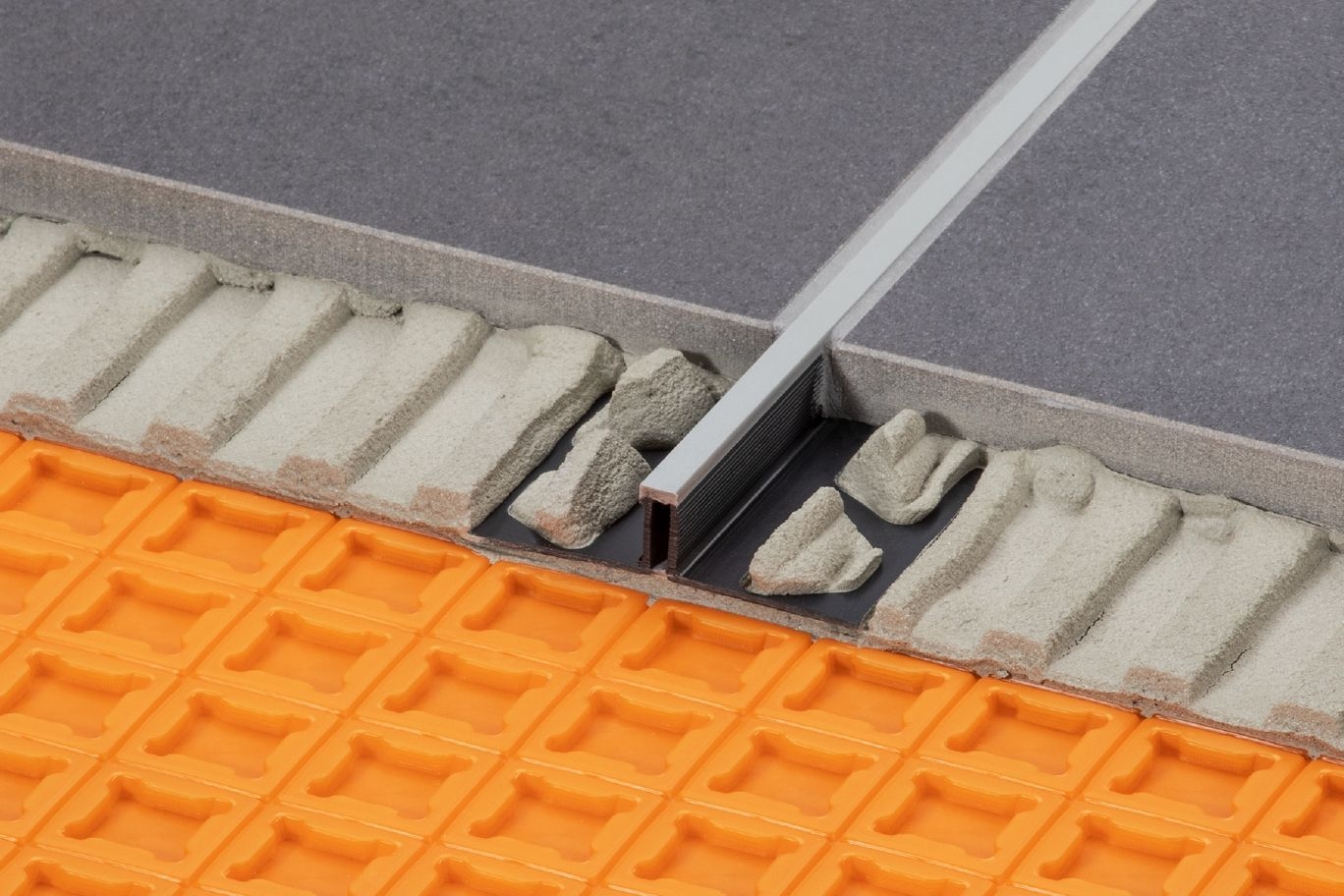

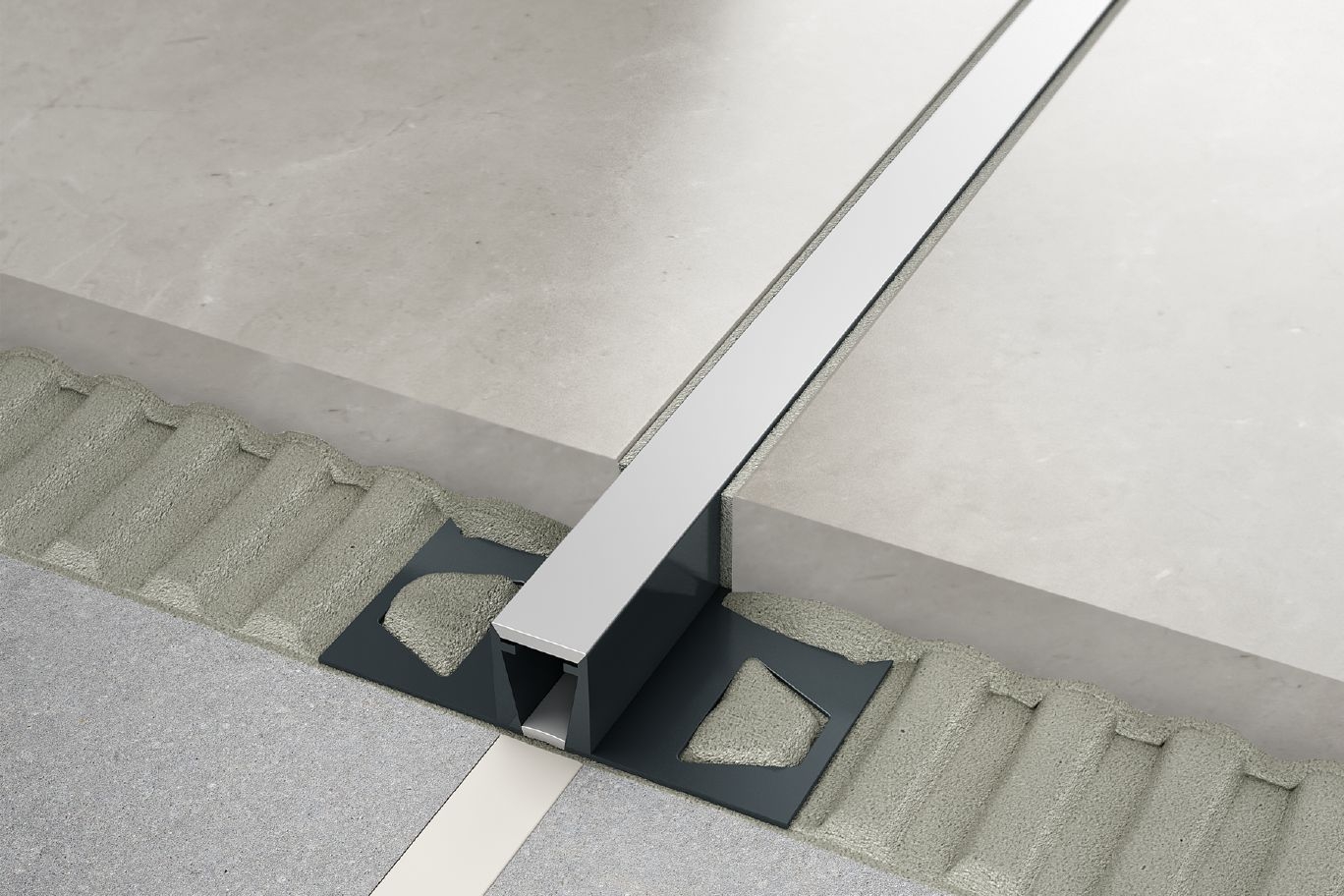

Schluter®-DILEX-BWB	Schluter®-DILEX-BWS	Schluter®-DILEX-EDP

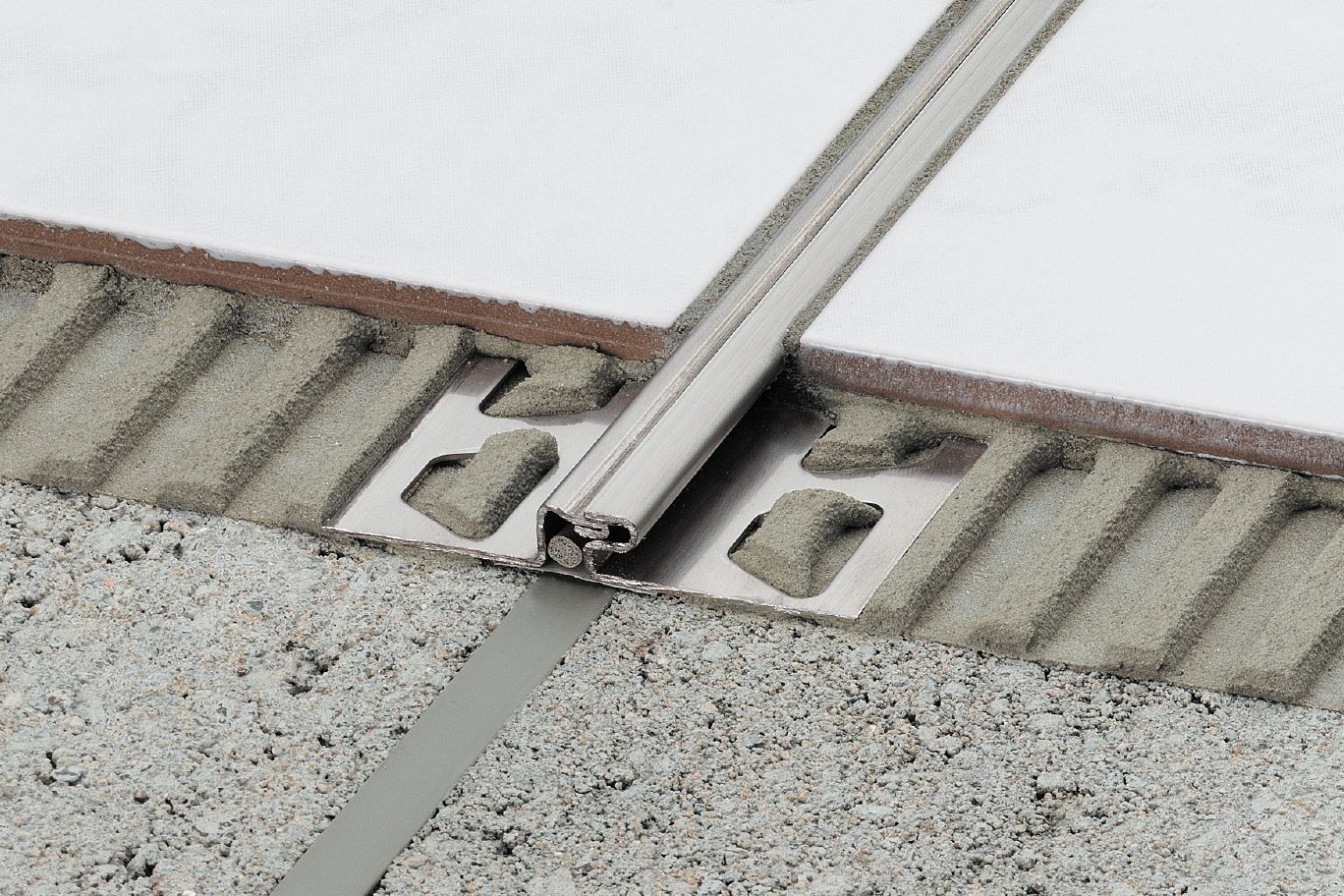

Prefabricated surface joint profile with a 3/8” (10 mm)-wide movement zone with rigid PVC anchoring legs that protect tile edges.	Featuring a 3/16” (5 mm)-wide movement zone, this prefabricated profile is equipped with rigid PVC anchoring legs that protect tile edges. It features a soft CPE movement zone that separates individual fields.	Surface joint profile with tongue-and-groove movement zone that protects tile edges and separates individual fields in the tile covering, ideal for areas exposed to continuous vehicular traffic.
Schluter®-DILEX-EKSB	Schluter®-DILEX-KSN	Schluter®-DILEX-EZ

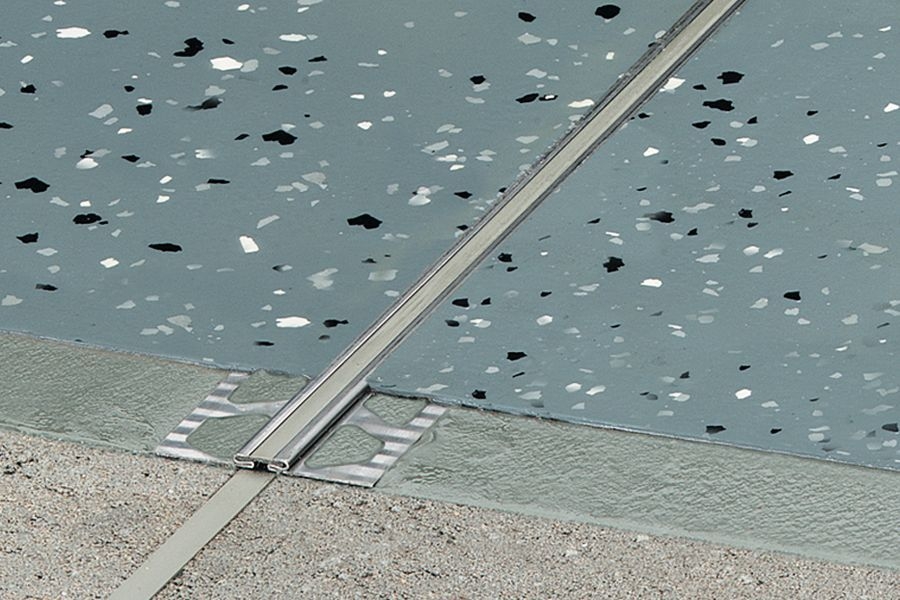

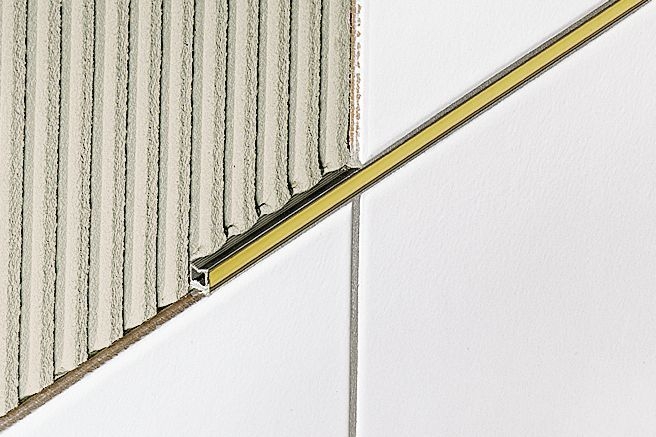

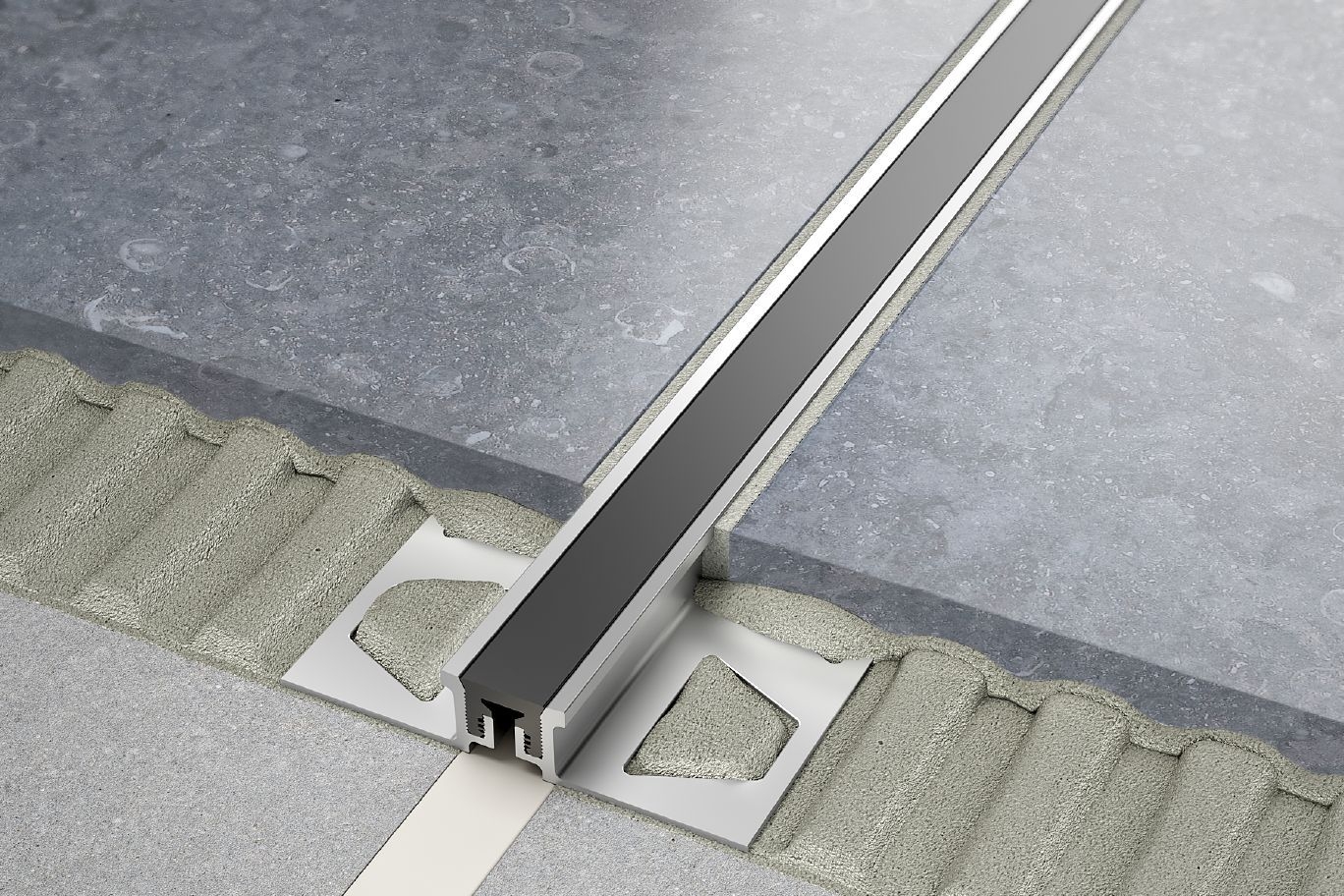

Surface joint profile for thinner floor coverings, with stainless steel anchoring legs and soft thermoplastic rubber movement.	Surface movement joint profile with replaceable rubber insert.	Decorative movement joint profile for wall and floor applications combining decorative design with stress-relieving function for tile and stone.

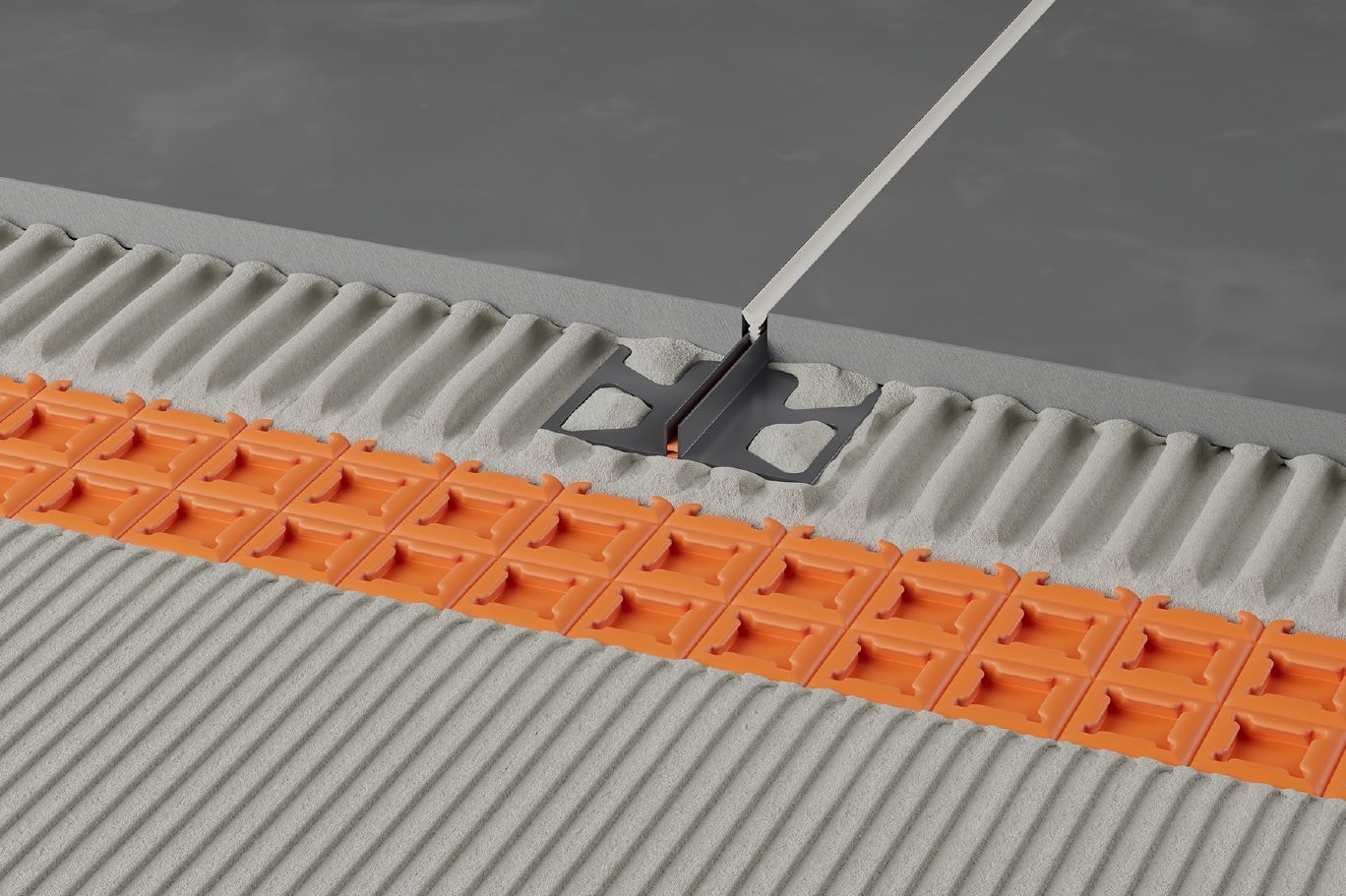

Schluter®-DILEX-F
Schluter’s slimmest movement joint profile is a surface movement joint profile. The two-part system consists of a carrier profile with anchor legs made of rigid, recycled PVC, and a slim replaceable silicone inlay that mimics grout lines.

Perimeter Joints

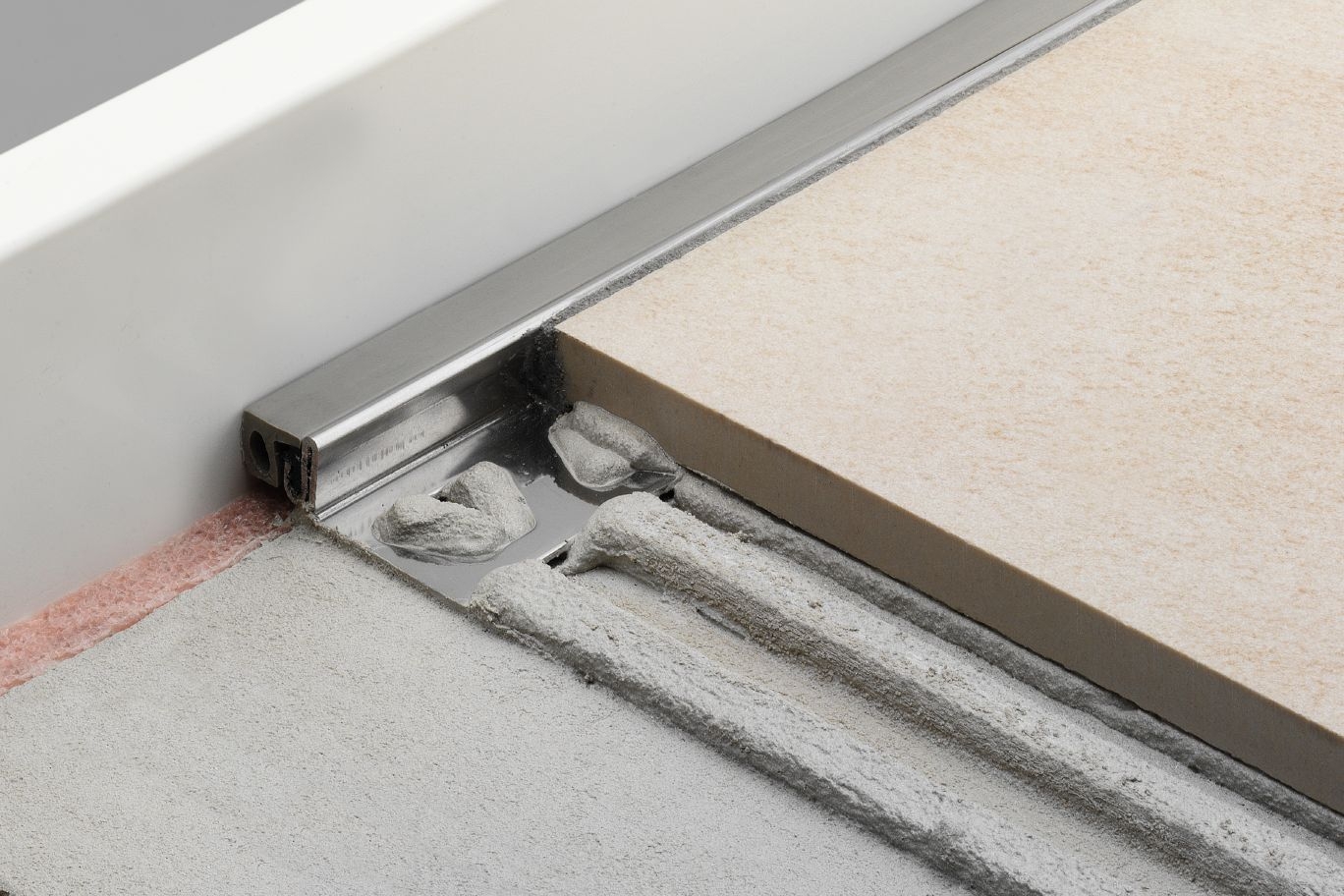

Schluter®-DILEX-AS	Schluter®-DILEX-BWA	Schluter®-DILEX-KSA

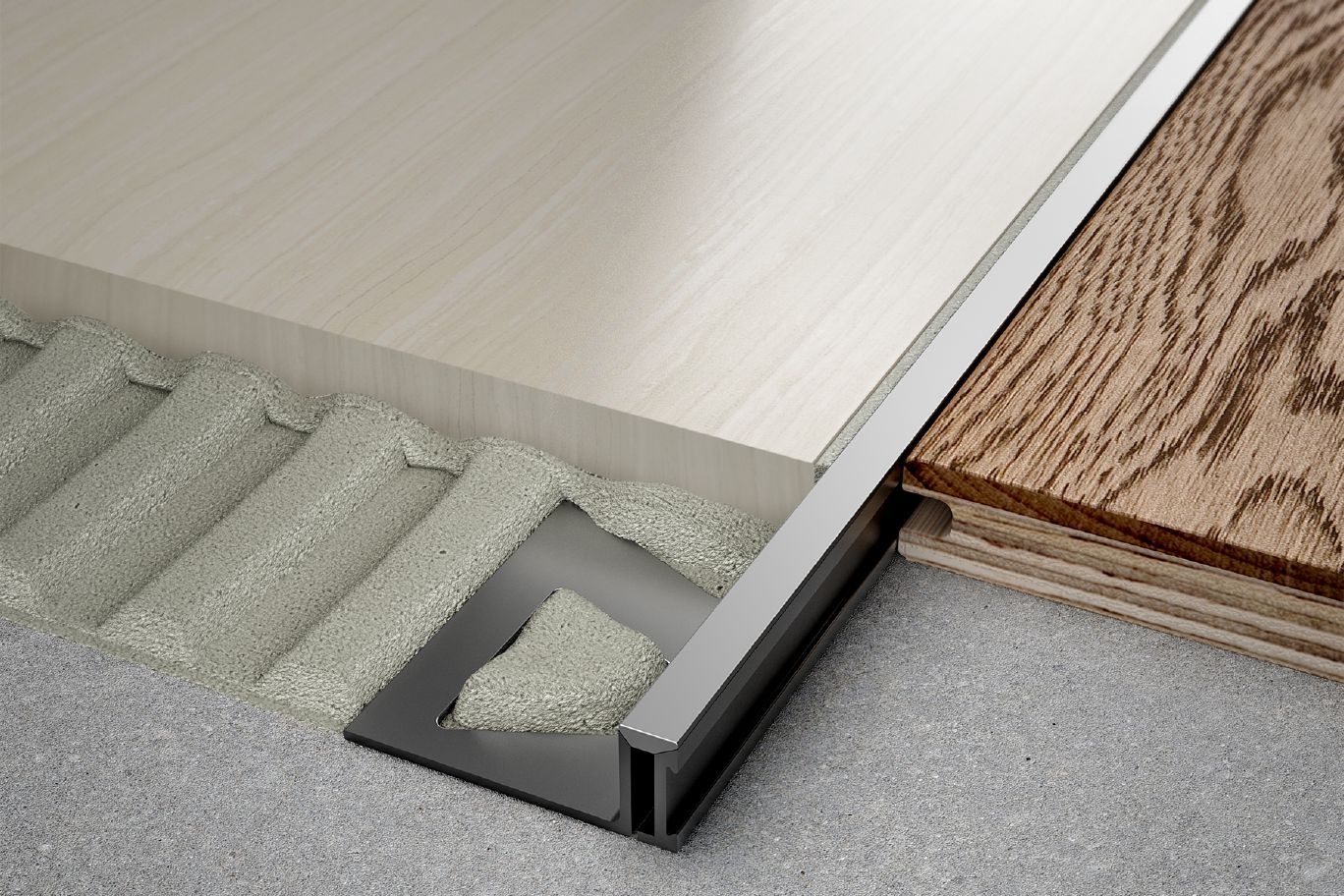

Perimeter joint profile with a rigid PVC anchoring leg and self-adhesive tape and a flexible joining leg with self-adhesive tape to bond the profile to fixed building elements, such as bathtubs and showers.	Perimeter joint profile that isolates tile covering, with a rigid PVC anchoring leg and a soft CPE movement zone that isolates the tile covering from fixed building elements	Perimeter joint profile with self-adhesive strip a stainless steel or aluminum anchoring leg and replaceable rubber movement zone that isolates the tile covering from fixed building
