USG develops innovative building and manufacturing solutions, enabling global customers to efficiently and affordably create sustainable and accessible spaces. USG Structural Panels offer a lightweight, non-combustible, and efficient solution to poured concrete for mezzanines, subfloors, and roof decks.

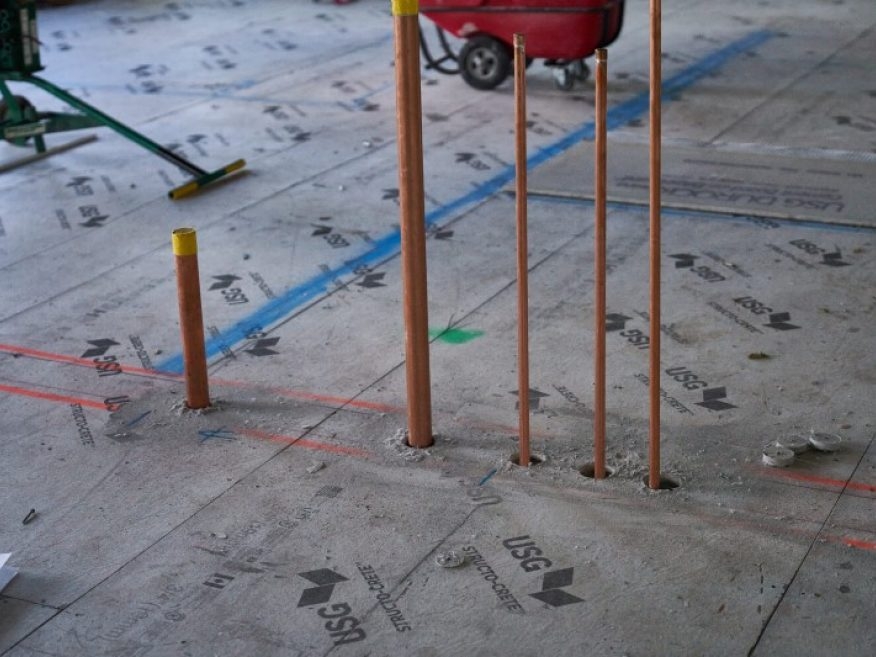

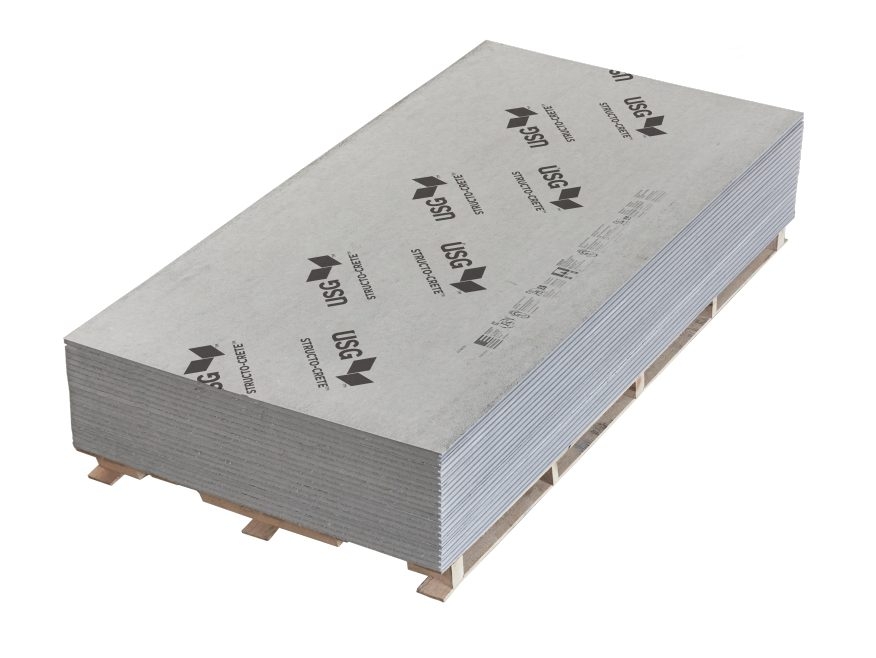

STRUCTO-CRETE® Brand Structural Panels
STRUCTO-CRETE® Brand Structural Panels are noncombustible, cementitious panels for subfloor assemblies in various building types. The system is easy to cut and install, providing flexible design options with high compressive and flexural strength.
Characteristics
- Fire-Rated Options: Available in 1-, 2-, and 3-hour rated assemblies
- Noncombustible Material: Meets ASTM E136 standards
- Resistant to Mold, Moisture, and Termites: Ensures long-term durability
- Dimensional Stability: Prevents buckling and warping
- Lightweight Construction: Easier handling than traditional concrete
- High Compressive and Flexural Strength: Supports versatile design applications
- Thickness: 3/4"
- Sizing: 4' x 8'; 4' x 6'; 4' x 6'-8" panels
- Pallet: 20 panels

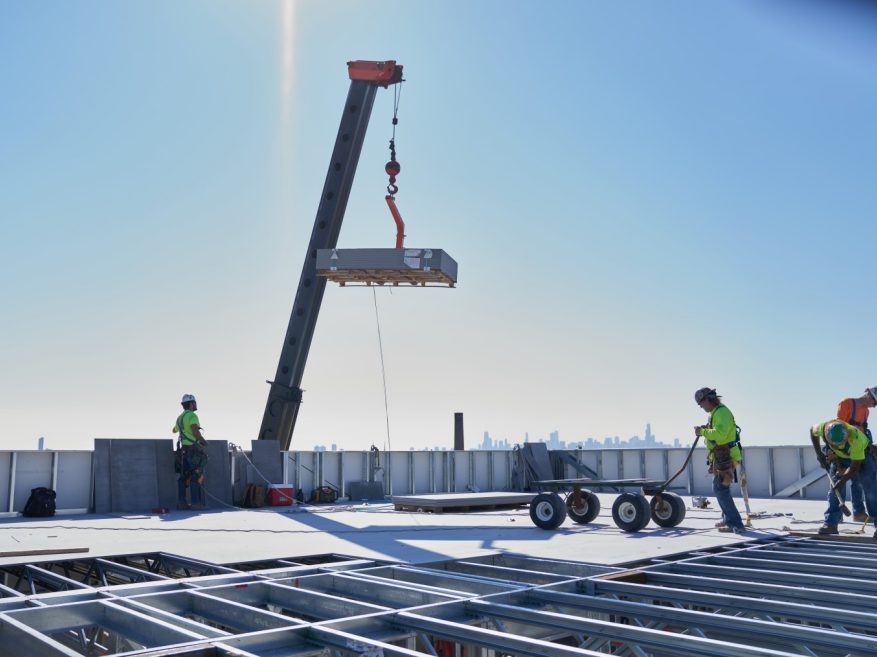

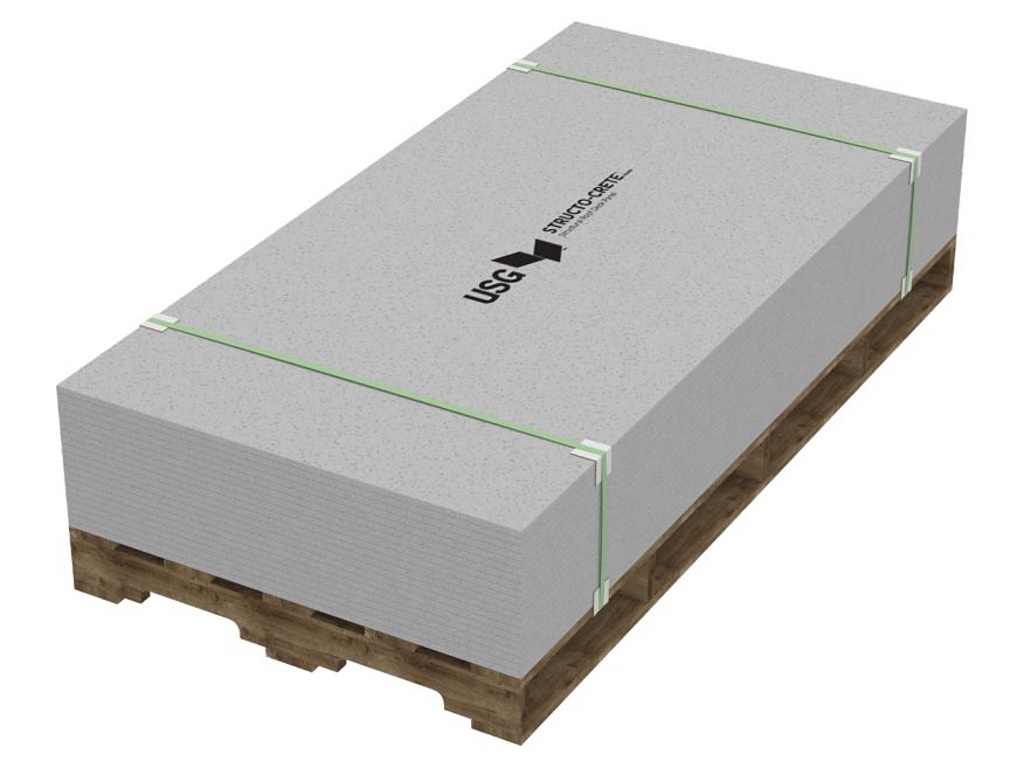

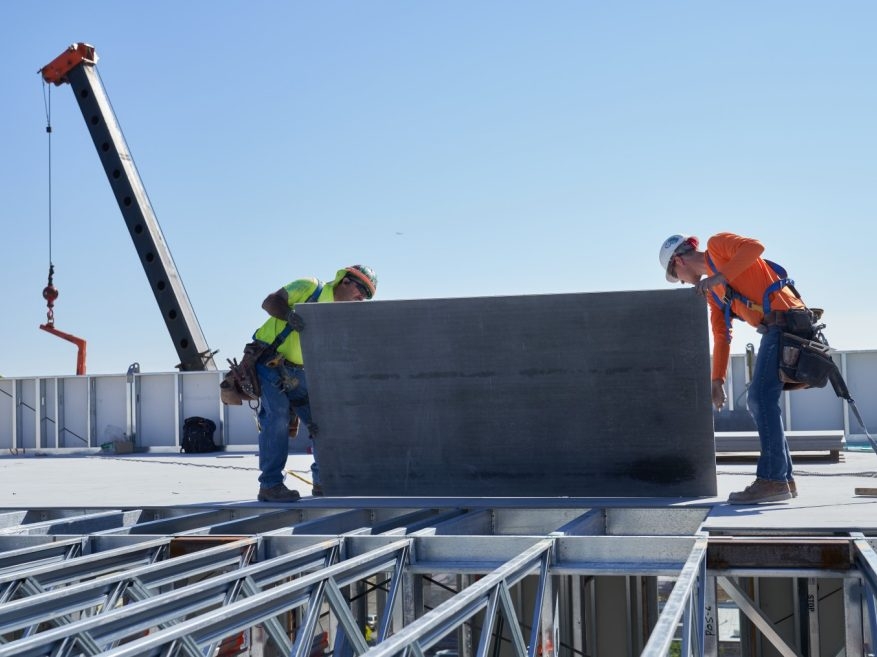

STRUCTO-CRETE® Brand Structural Roof Deck Panels
STRUCTO-CRETE® Brand Structural Roof Deck Panels are a cementitious roof sheathing solution that combines fire-rated performance and structural support for low and steep slope applications. These panels eliminate the need for thermal barriers, pouring, setting, or curing. They are installed easily with mechanical fasteners, acting as both the structural substrate and, where needed, the nail base or thermal barrier. These dimensionally stable panels resist buckling and warping, supporting immediate roof application after installation.
Characteristics
- Fire Resistance: 1- and 2-hour fire-rated assemblies
- High Uplift Ratings: Strong, durable construction for structural stability
- Installation Flexibility: Suitable for various framing systems, up to 48” on center
- Dry Construction: Allows immediate application of roofing after installation
- FM Approved: Meets FM Approval Standard 4472 for roof decks
- Thickness: 3/4"
- Sizing: 4' x 8'; 4' x 6'; 4' x 6'-8" panels
- Pallet: 20 panels
