Minimal Sliding Thermal System - Motion 51/51 Plus | Motion Facades

Available in United States
Use

Sliding system
Applications

Commercial, residential
Characteristics

Stainless steel rollers, high thermal insulation, suitable for panels up to 4 meters high, minimal design, inline or external drainage gutter

1 Product File

Product_brochure-Motion51-51PLUS-Motion_Facades

11 MB

pdf

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

5 General Catalogs

Catalog Motion Facades

27 MB

11 MB

8.2 MB

9.2 MB

6.1 MB

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

More about this product

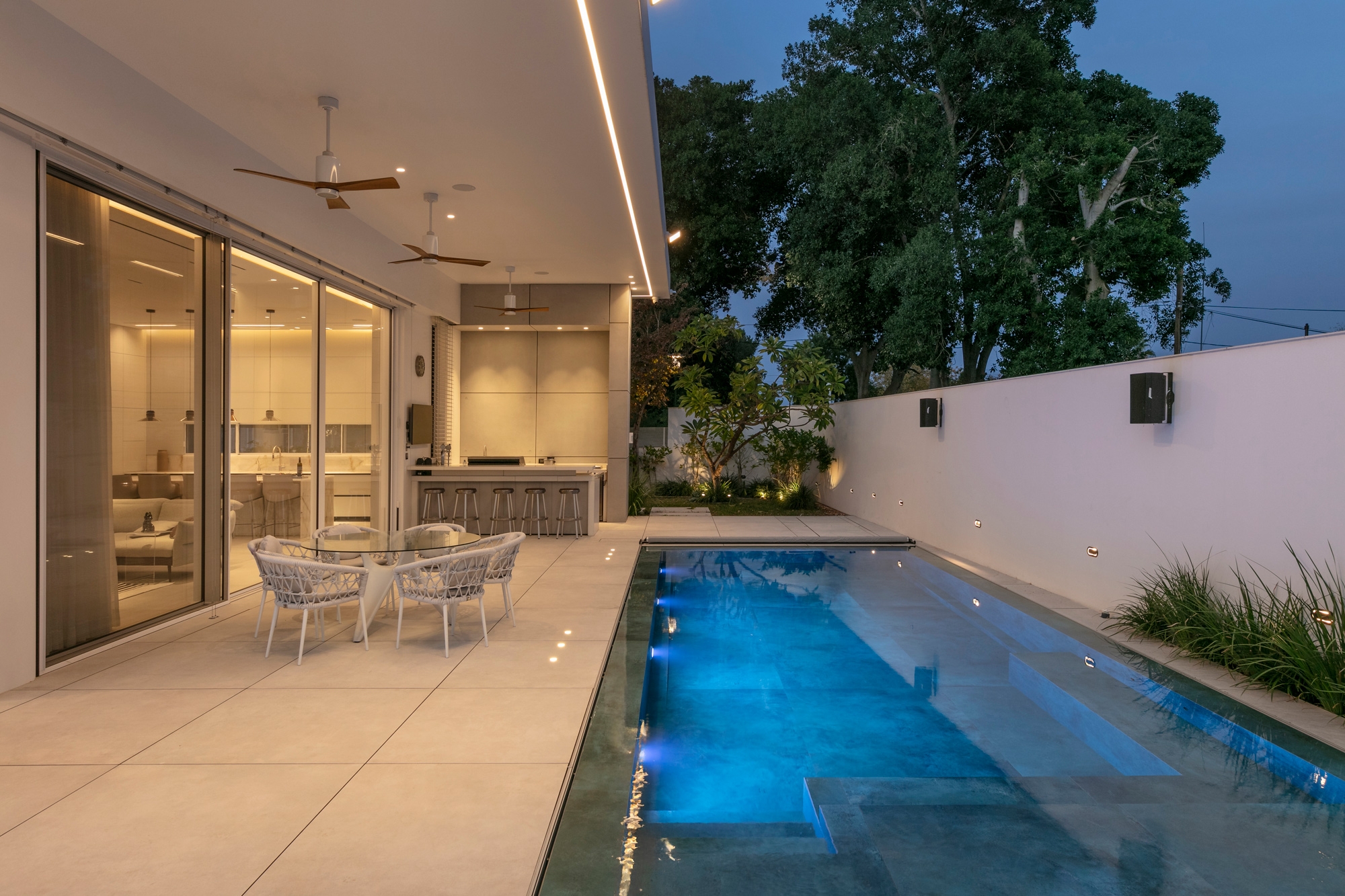

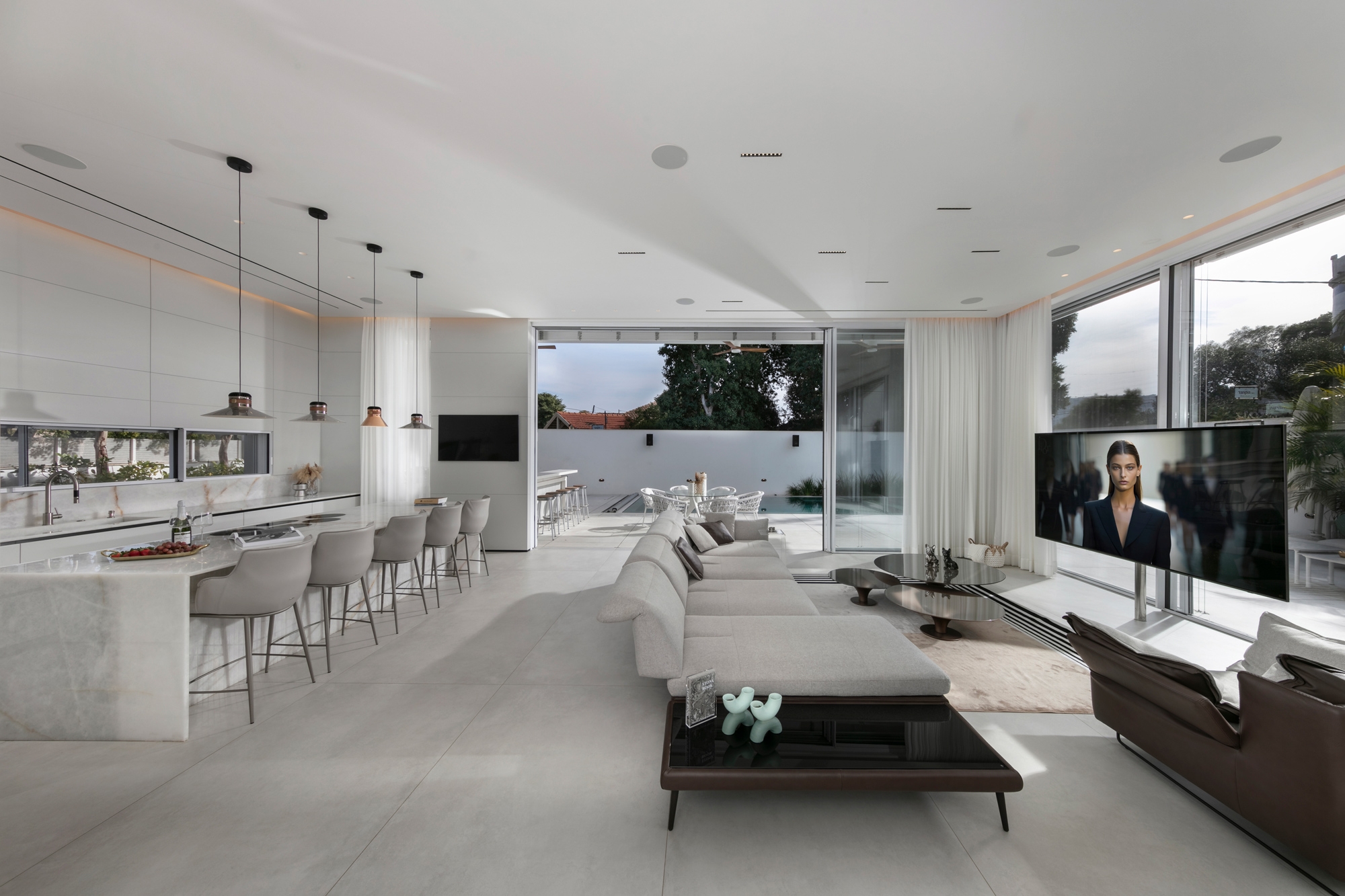

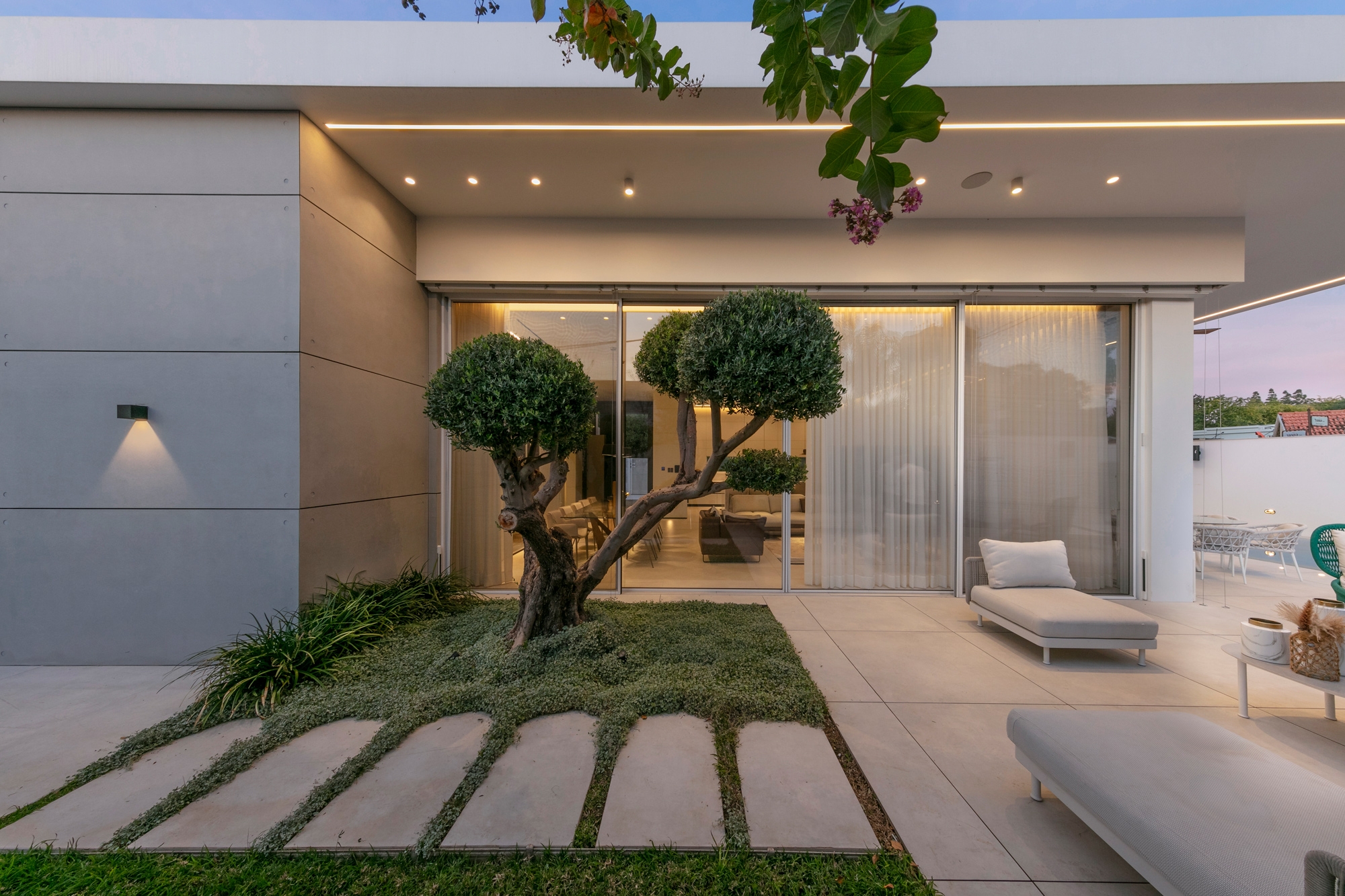

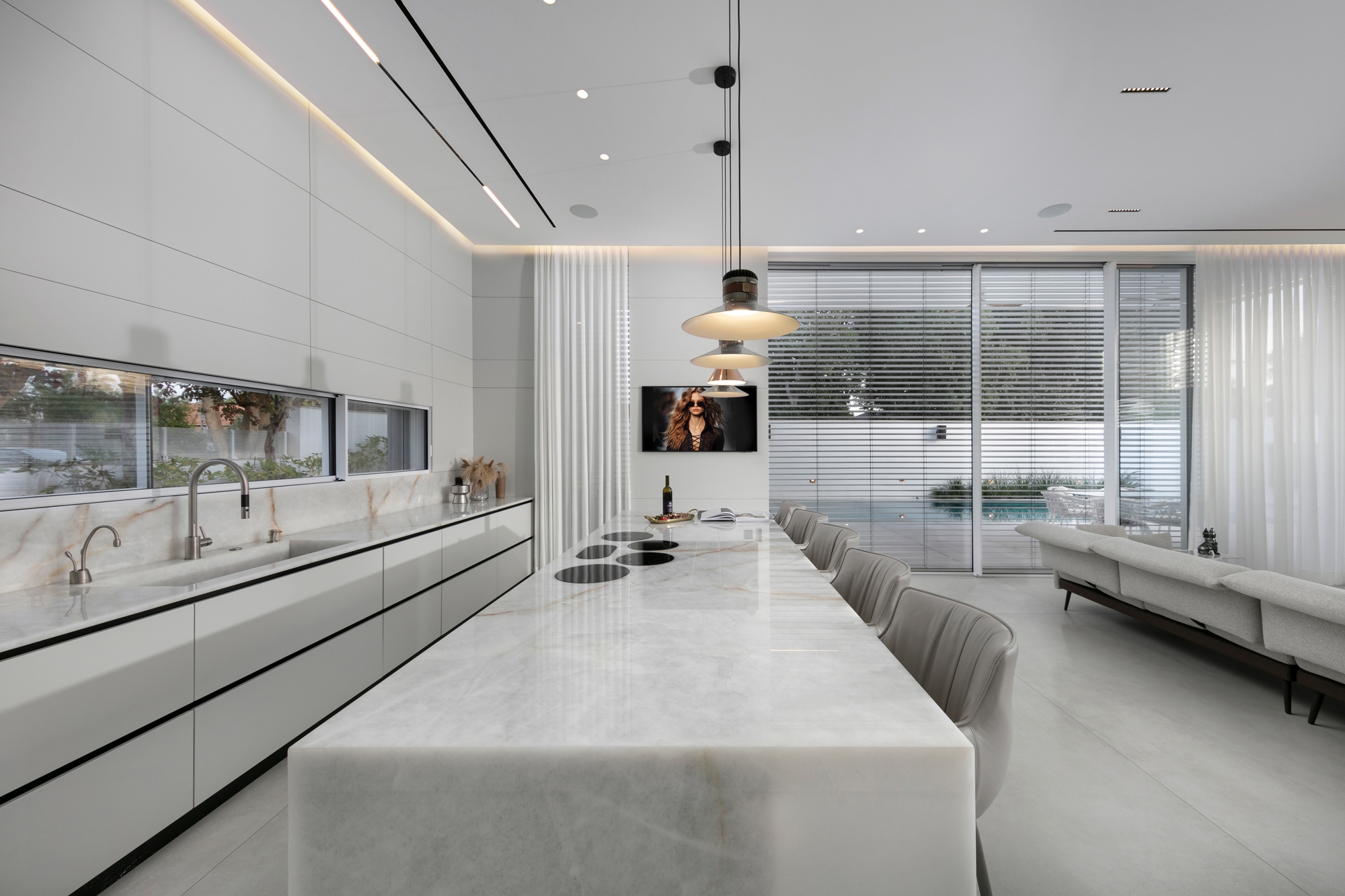

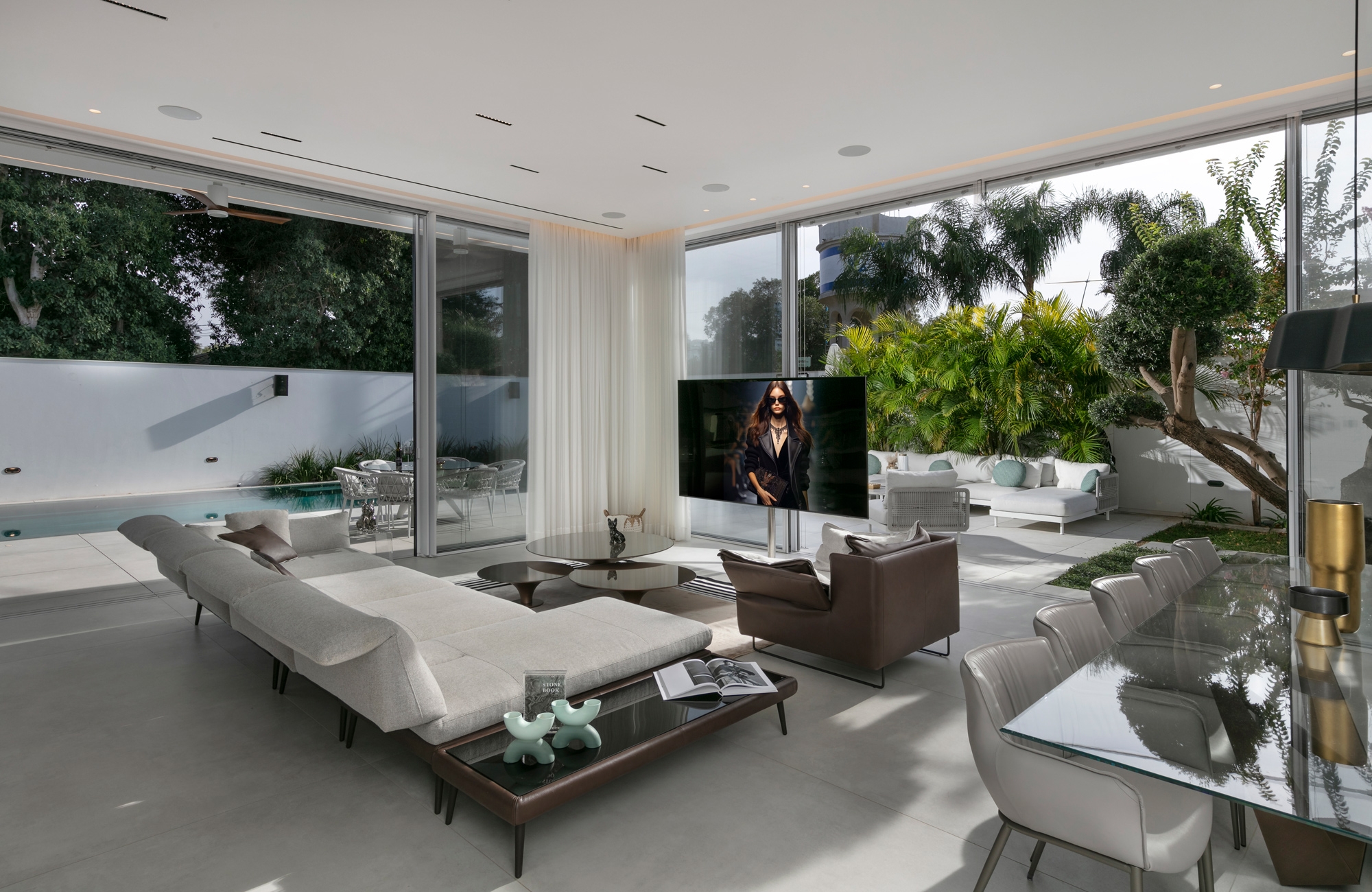

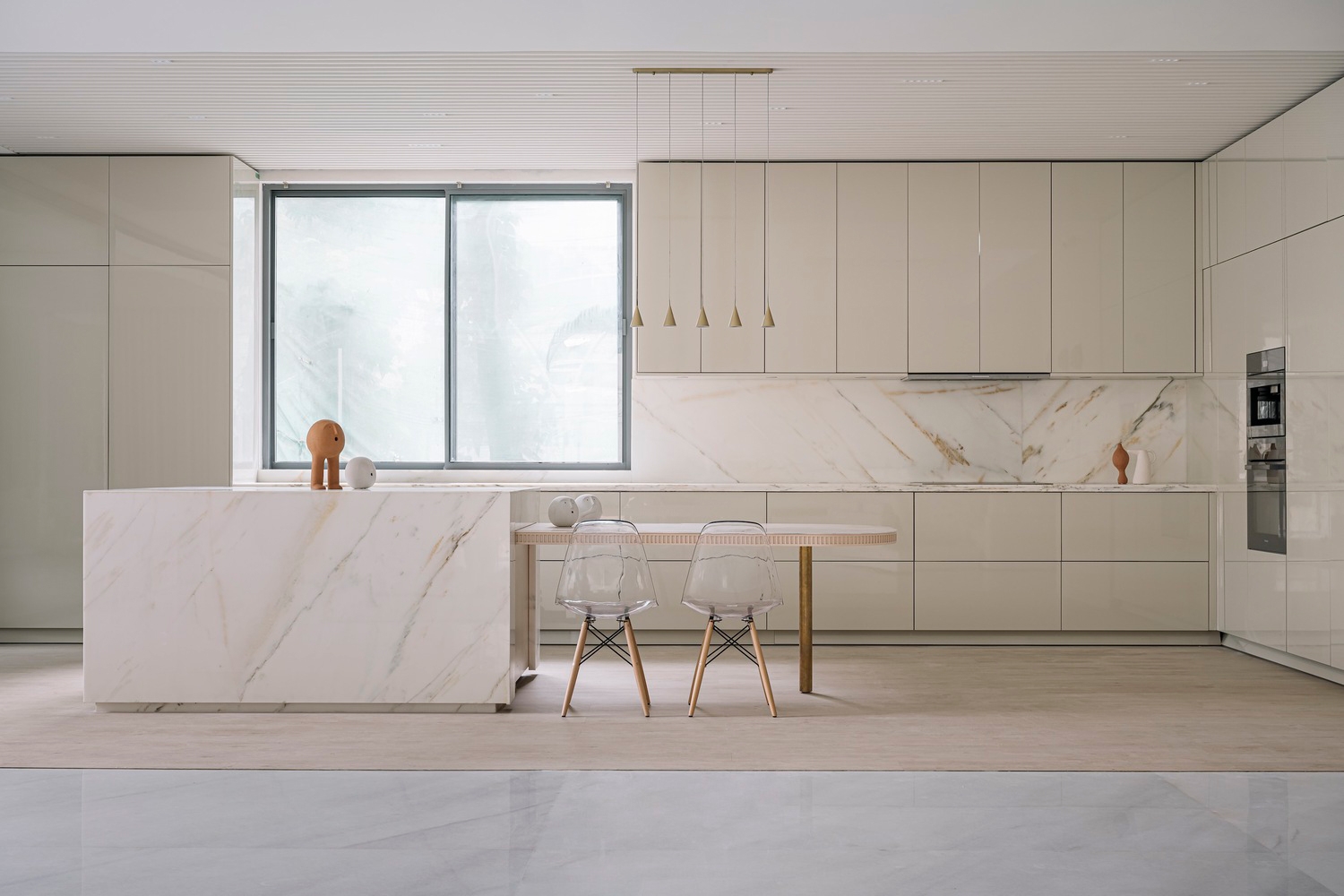

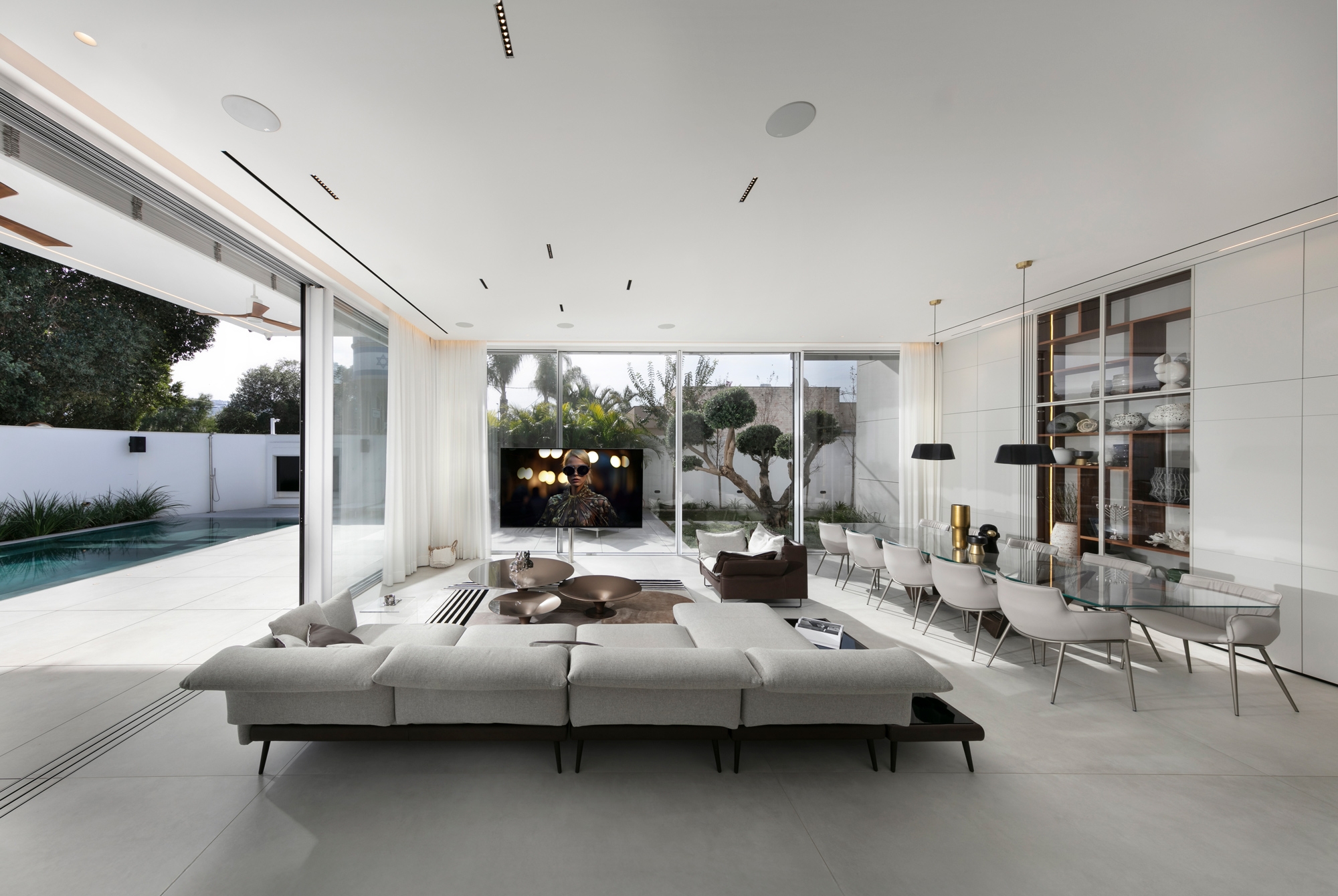

Motion Facades' minimal sliding system is engineered for large panels in exclusive commercial and residential buildings where high thermal insulation is required. This type of sliding system is perfect for spaces where a clean, minimal aesthetic is desired.

Save this picture!

The Motion 51 / 51 Plus system works by tracking parallel panels with stainless steel wheels and running guides for seamless sliding movement and durability. Its design also includes top alignment rollers—important for panels wider than 2 meters.

Specifications

Maximum sash height	4 m
Maximum sash width	3 m
Maximum weight per sash	600 kg
Glazing width possibilities	32 mm
Maximum locking points	6
Frame height	42 mm
Frame width	62 / 33 / 205 / 276 mm
Floor typology	Step, submerged
Riding typology	Hovering, semi-submerged
Sash height, vertical	20 / 30 mm
Sash height, horizontal	38 / 53 mm
Sash width	47 mm
Center mullion visible height	16-20 mm

Product gallery

Contact manufacturer

By using ArchDaily, you agree to our Terms of Use, Privacy Policy and Cookie Policy.

Minimal Sliding Thermal System - Motion 51/51 Plus | Motion Facades

Use

Applications

Characteristics

Motion Facades

More about this product

Application and use in Construction

Window Type

Properties

Product gallery

Latest Catalogs and Files

Motion Facades

Contact manufacturer

Motion Facades

Contact manufacturer

Motion Facades

Related Products

Minimal Sliding Door System - Motion 520

Motion Facades

Lift & Slide Sliding Door System - Motion 5200

Motion Facades

Minimal Super Slim Pivot Door System – Motion 11000

Motion Facades

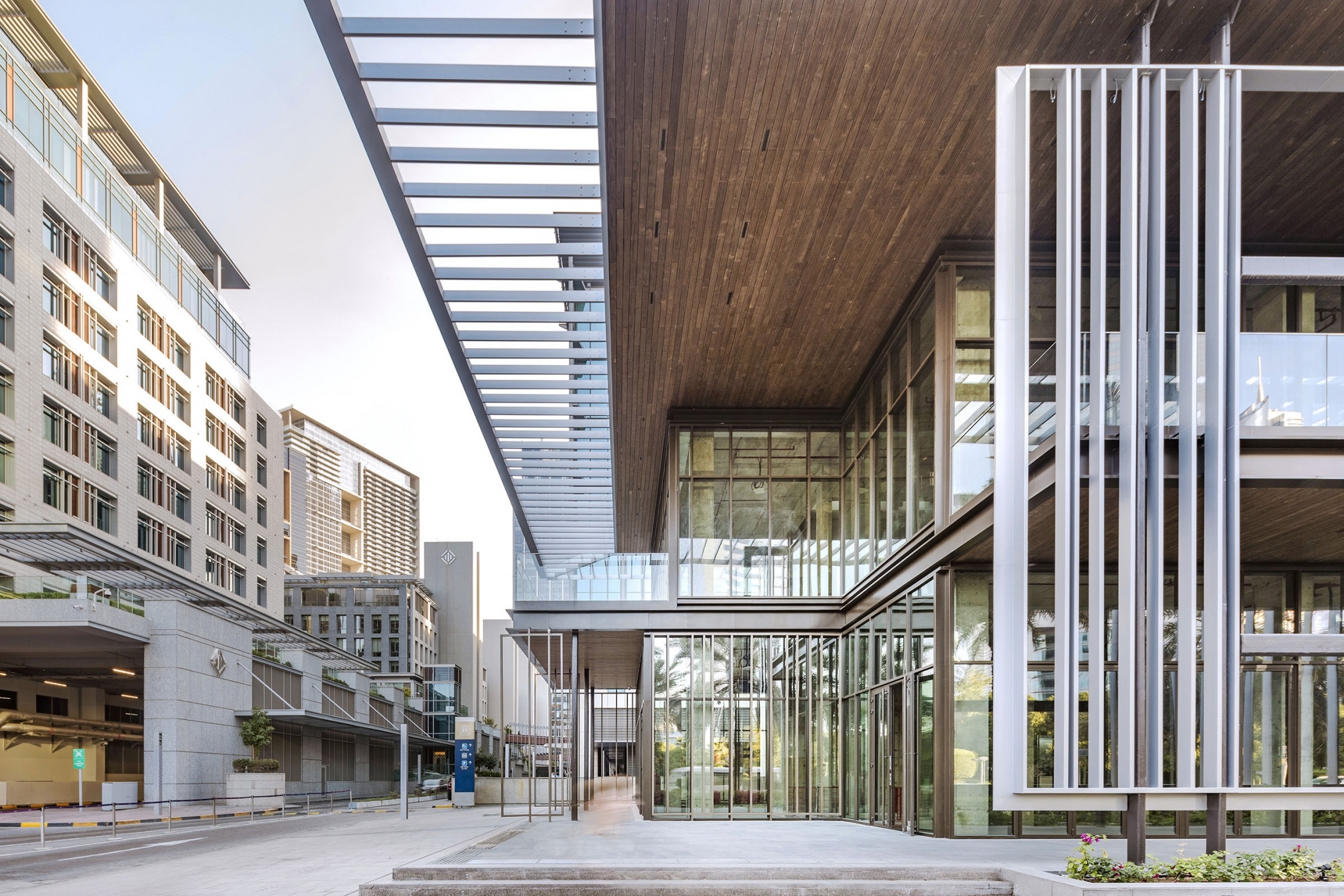

Pivot Slide Folding Door System – Motion 60PS

Motion Facades

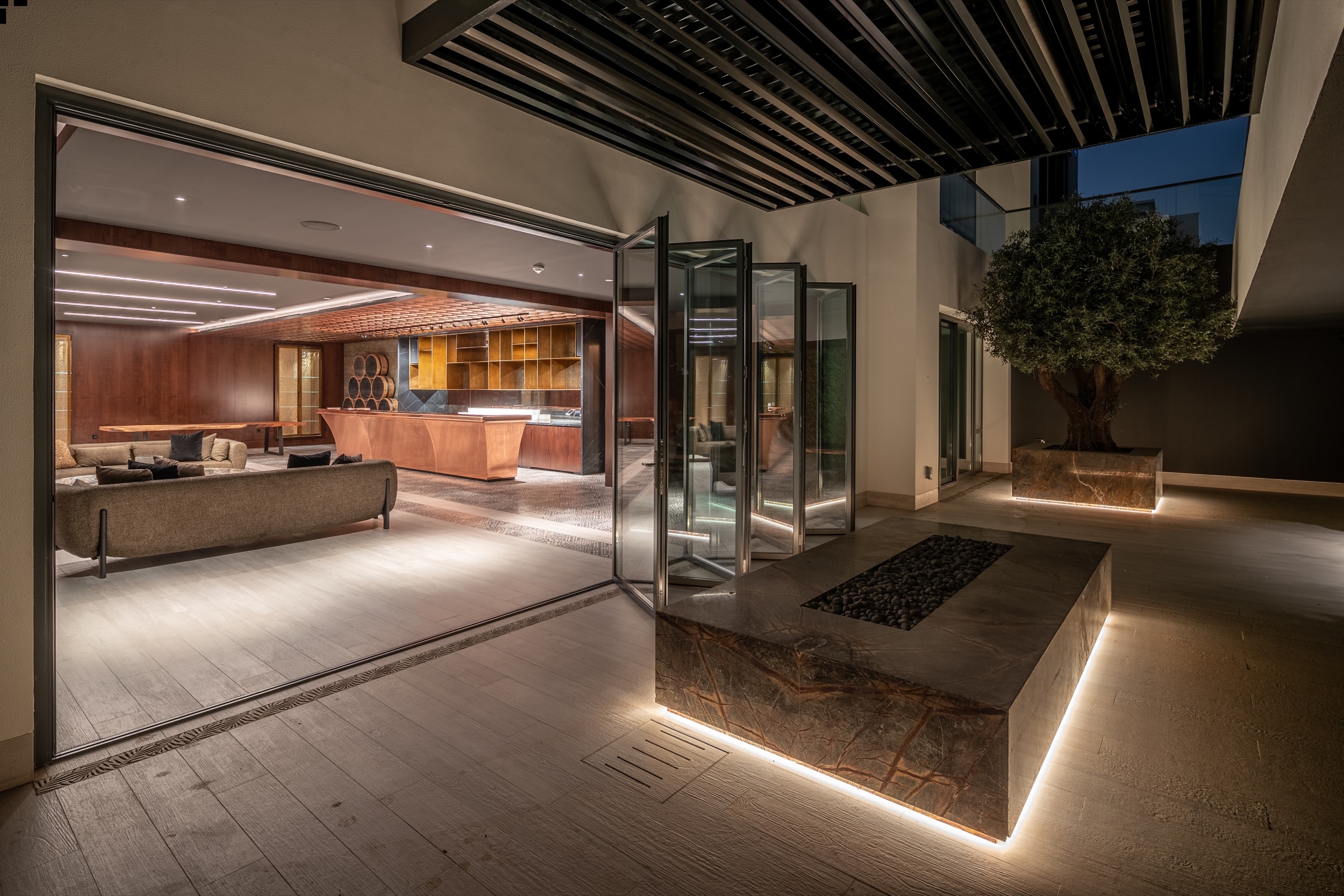

Minimal Folding Door System - Motion 6010
