Kingspan Light + Air is a manufacturer of innovative daylighting and natural ventilation solutions, supporting efficiency, style, and safety while prioritizing sustainability and community impact. Kingspan Light + Air offers a selection of canopy systems and walkways in a wide variety of standard color options - custom and matching are also available.

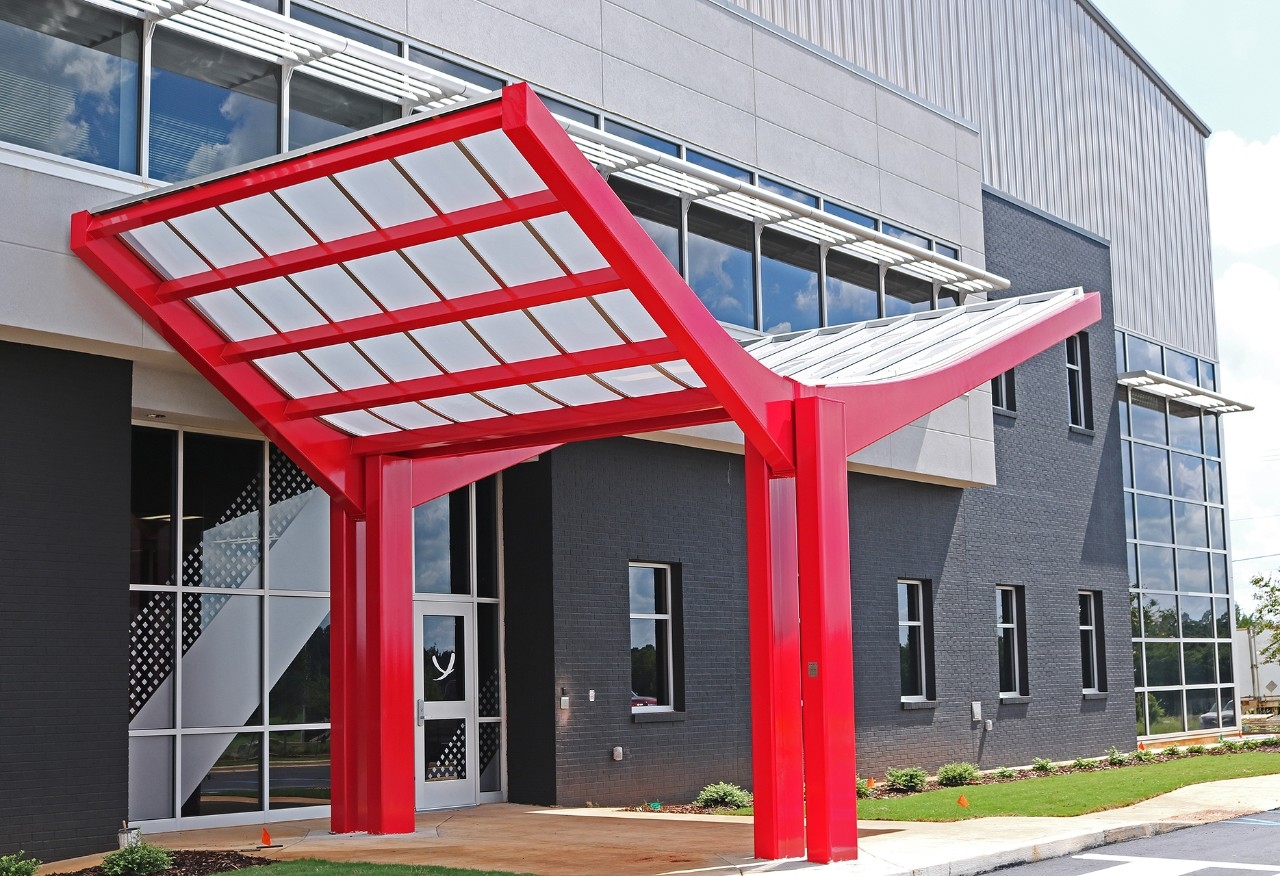

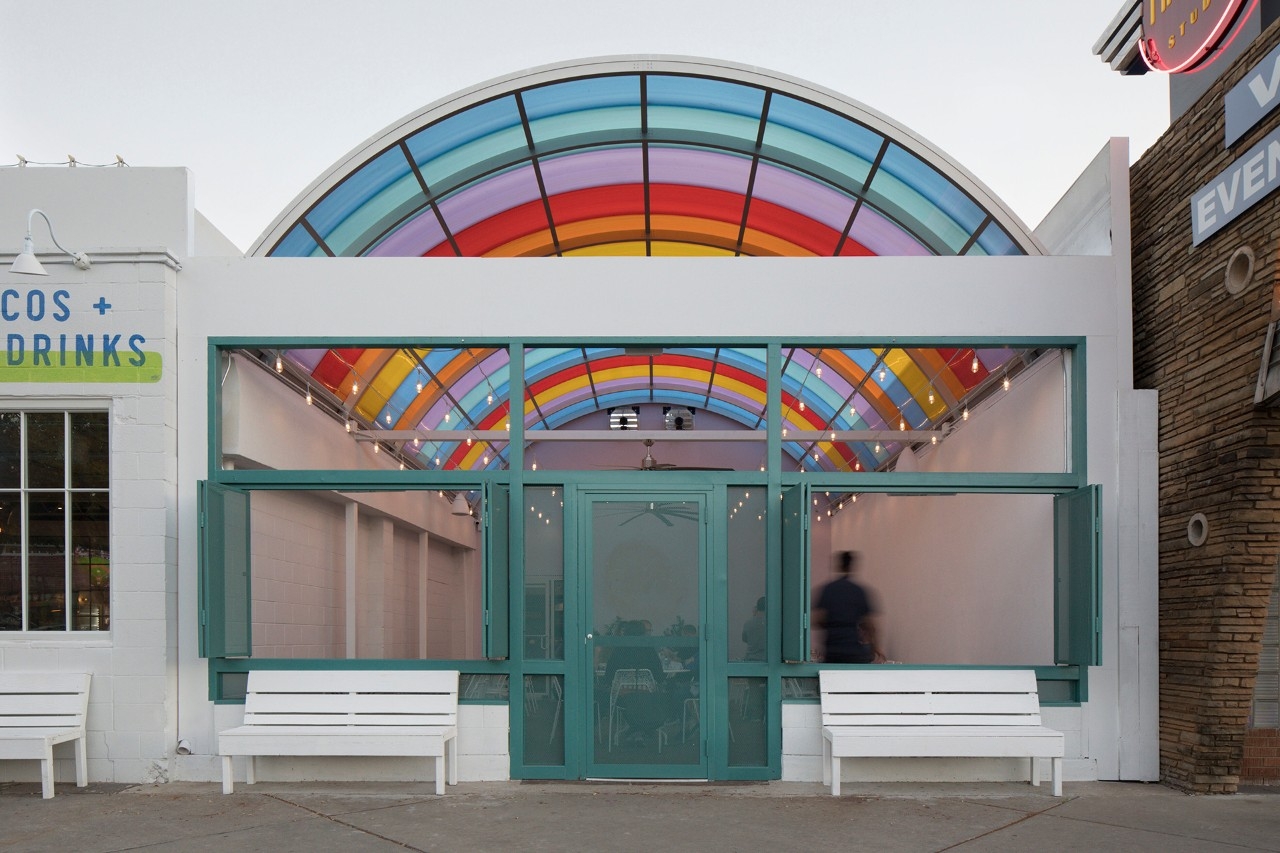

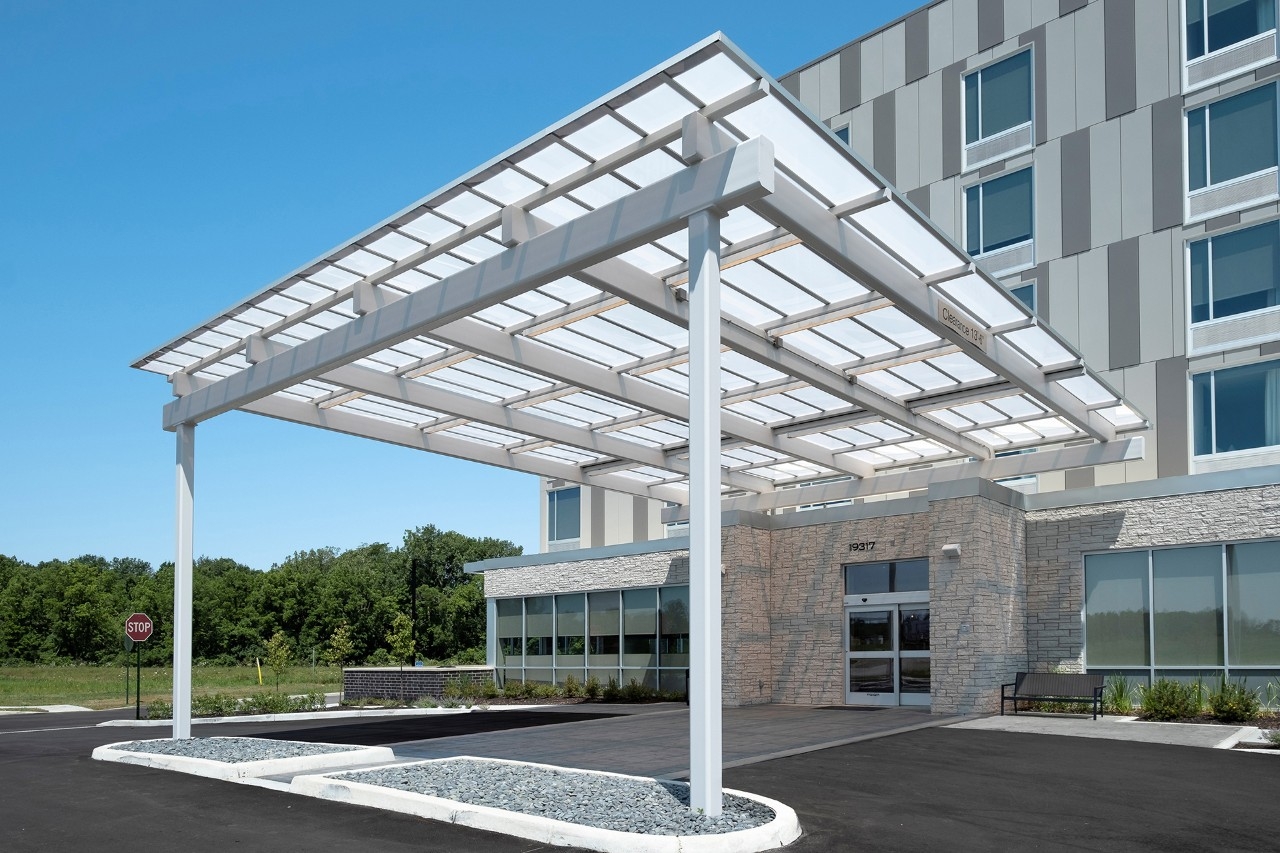

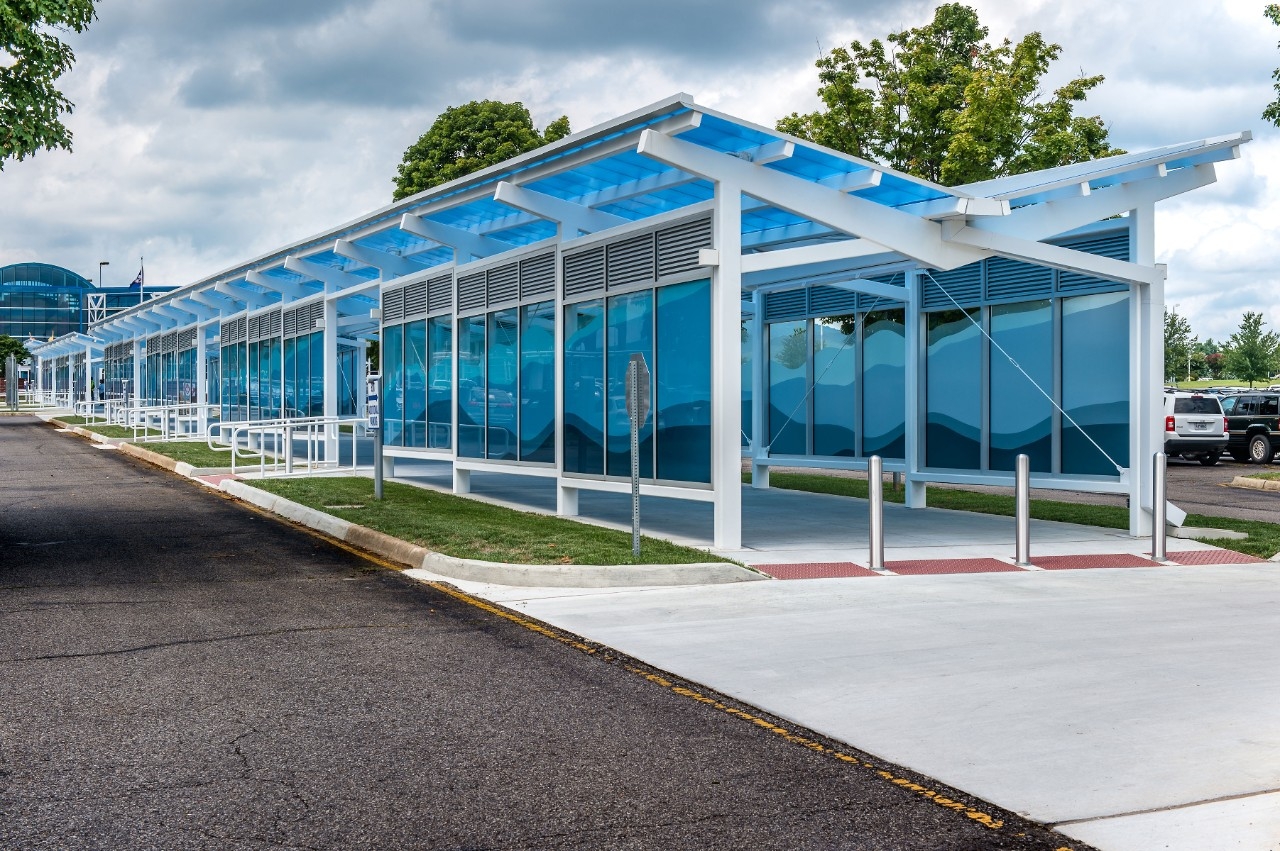

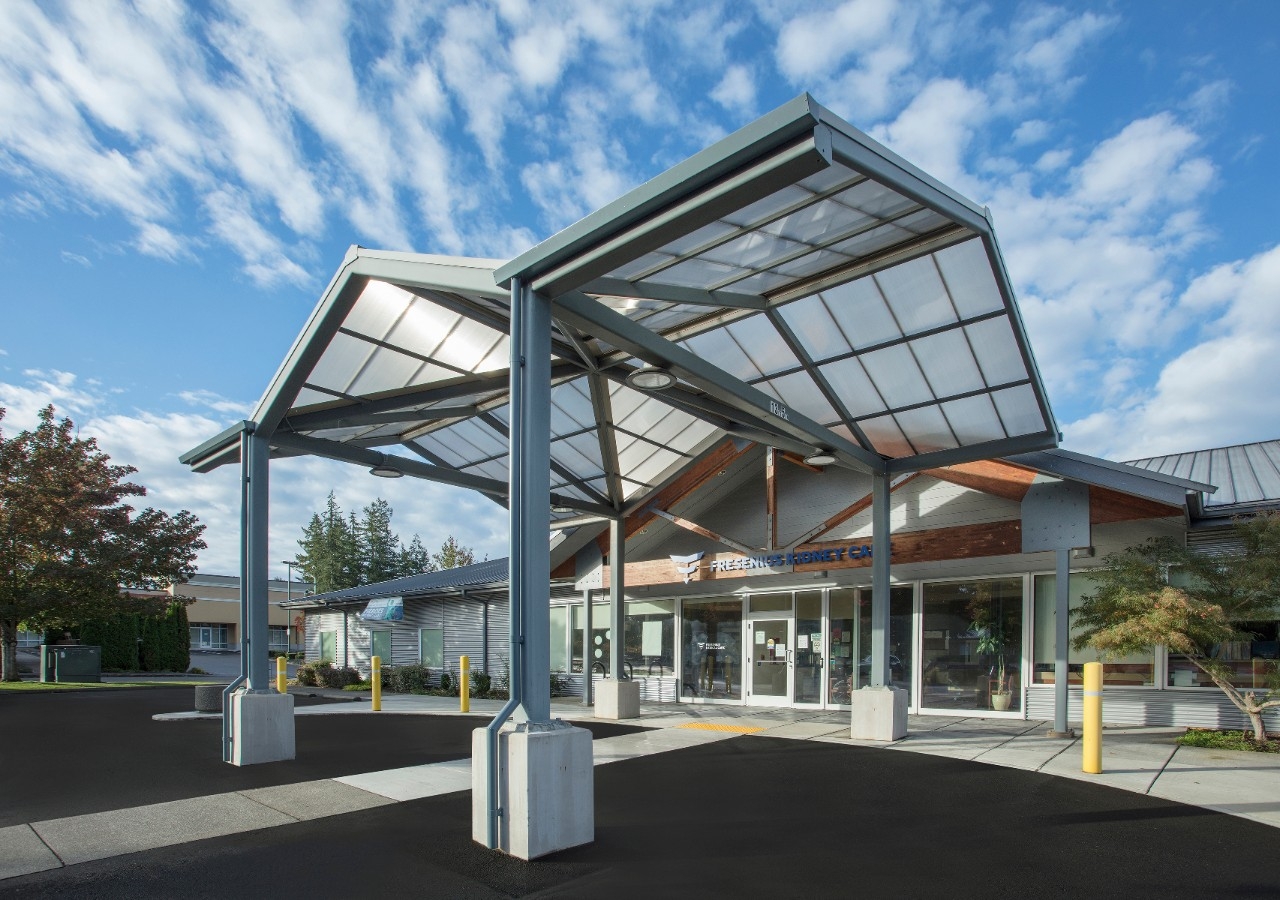

Briteway® Canopy System
Briteway® canopies and walkways offer shelter and protection for building occupants plus the benefits of diffuse natural light - in a system that’s also cost-effective and easy to install. Whether it’s a simple design or complex custom configuration, Briteway® canopies and walkways feature prefabricated components for reduced labor time, a strong double-tooth standing seam connection for durability, and a wide range of glazing color options to accommodate just about any design need.

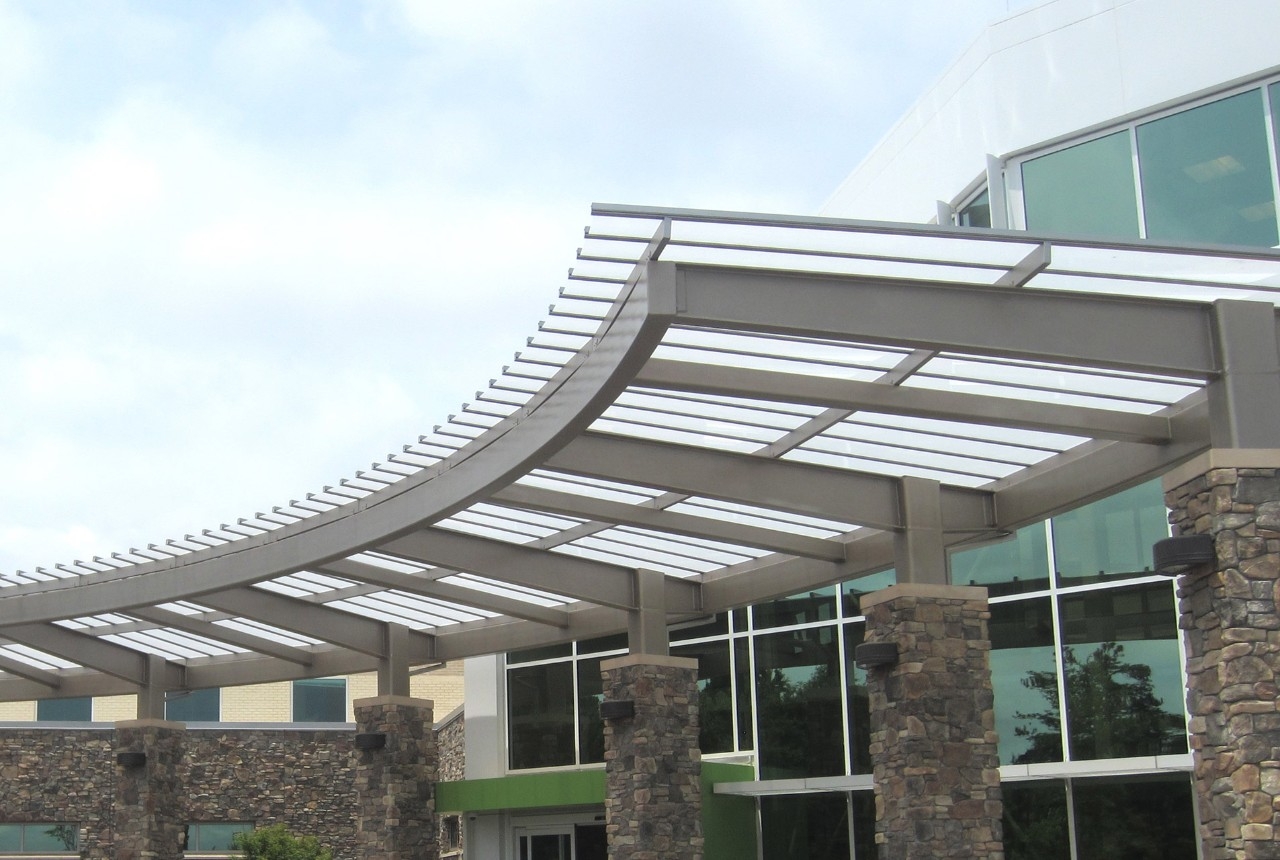

U-Lite™ Canopy System
The slim profile of the glazing panels in Kingspan Light + Air’s low slope canopies gives the U-Lite™ system a sleek, contemporary look without the high cost or difficult installation of glass. The system is designed without a perimeter frame, giving an exposed floating edge. The lightweight panels are easy to install, and the glazing material is inherently flexible so it will not shatter upon high impact. The polycarbonate glazing is extremely durable ensuring longevity and minimizing maintenance cost.

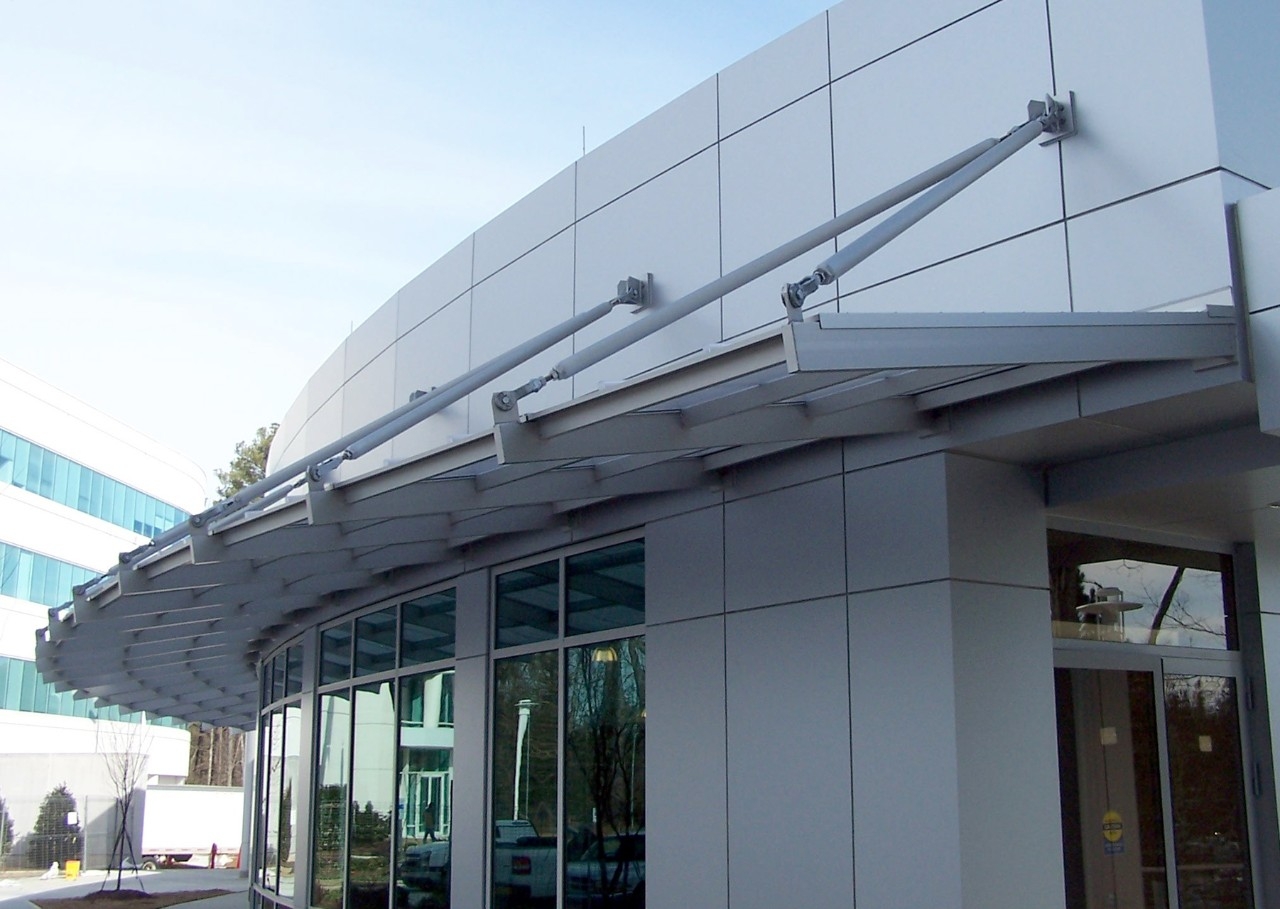

LiteBrow™ Suspended Canopy System
LiteBrow™ suspended canopy systems are a pre-engineered attached canopy system. The modular canopy units come in three standard sizes - 5ft x 4ft, 5ft x 8ft and 5ft x 12ft (custom sizes available) - and feature multi-cell or monolithic polycarbonate glazing. They ship fully assembled for easy installation, with necessary components and hardware included (structural components at the points of attachment to the building are required).

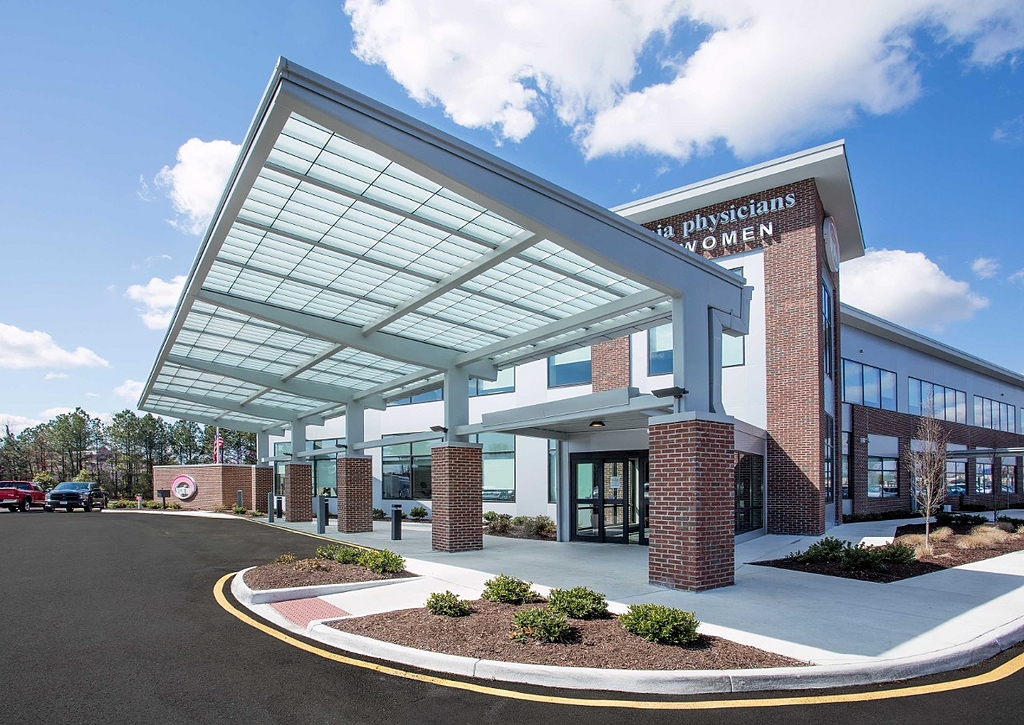

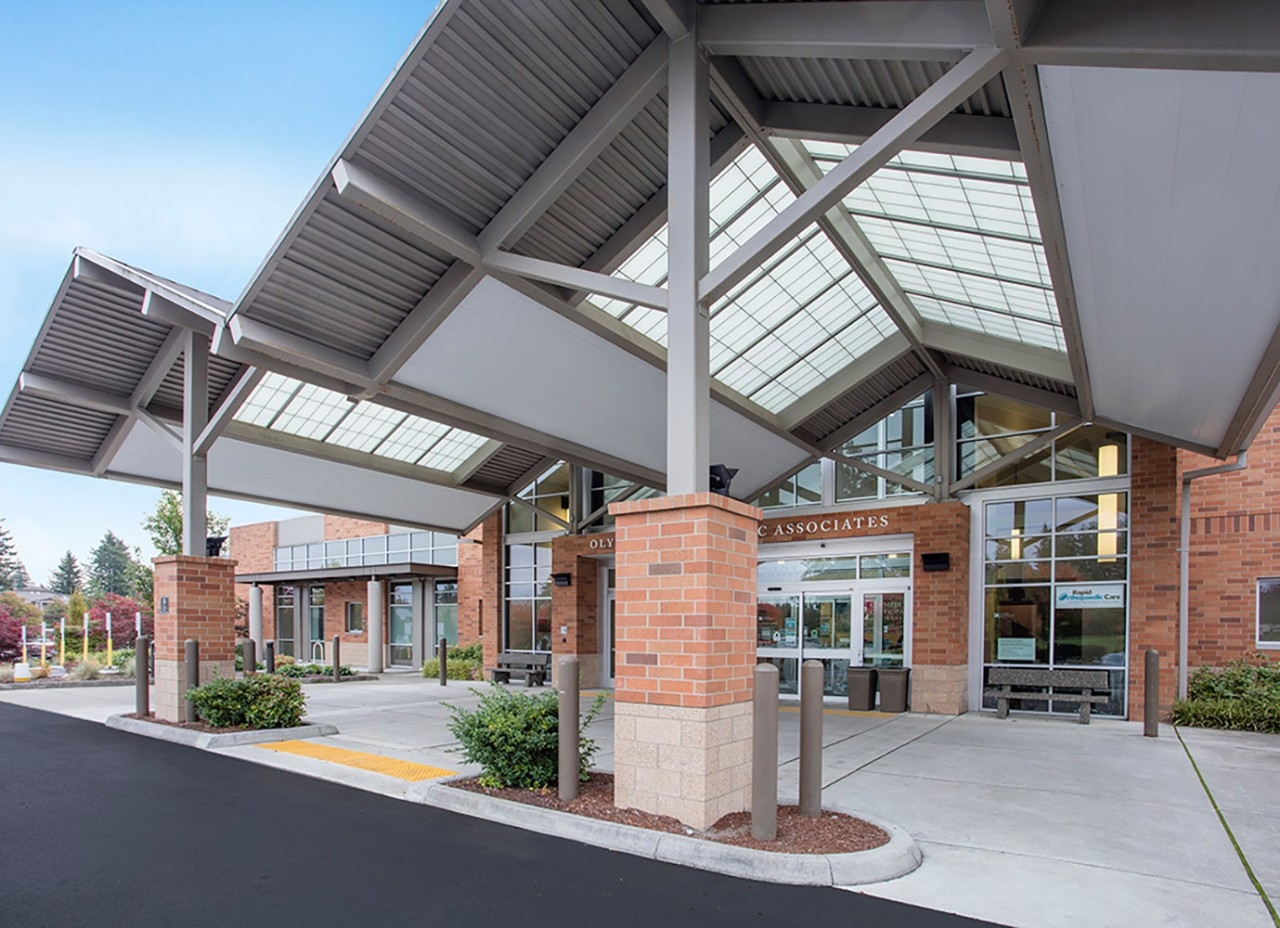

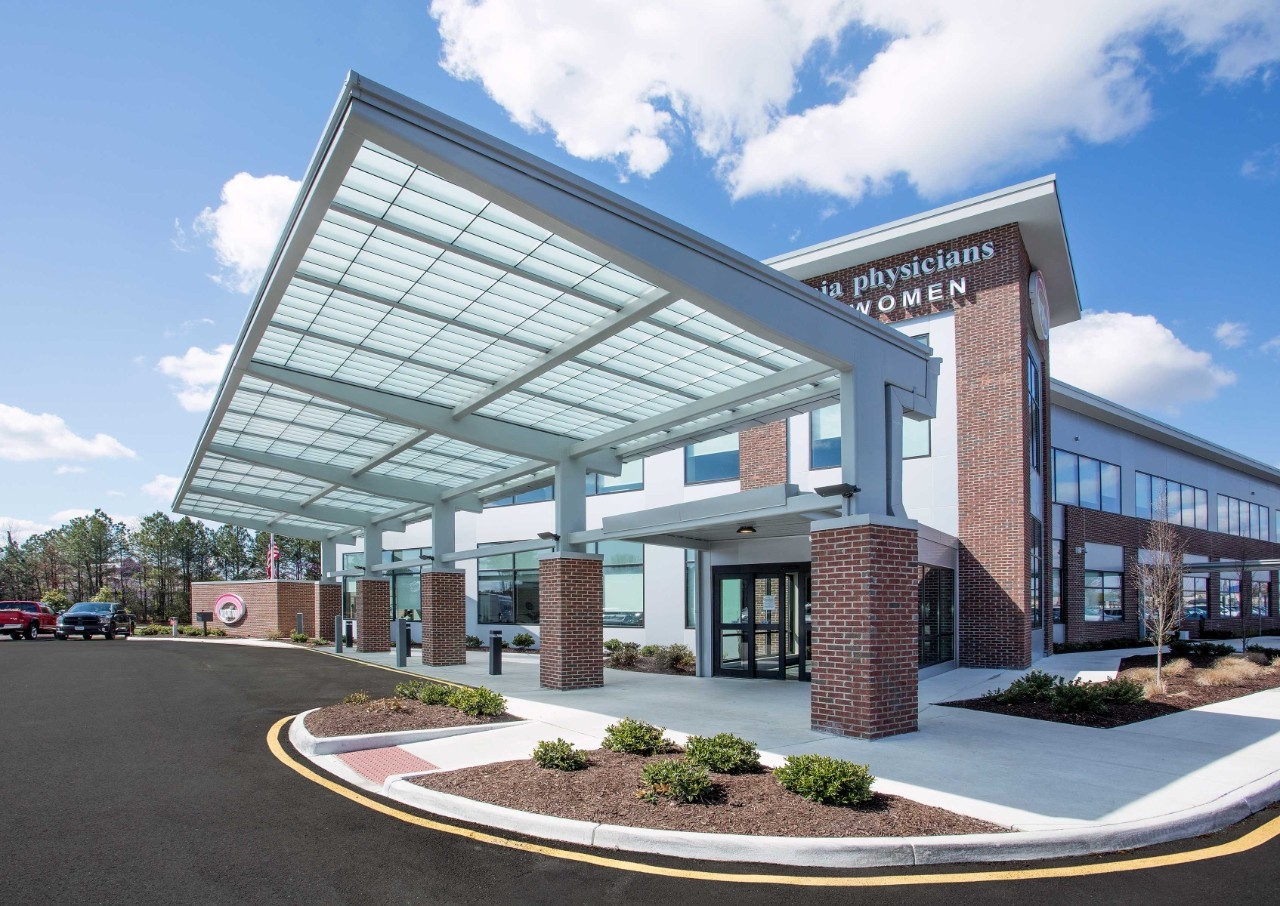

Liteway™ Canopy System
Liteway™ translucent panel canopies feature a lightweight sandwich panel design with fiberglass-reinforced polymer (FRP) face sheets that provide light and solar heat gain control. Their lightweight and unique aesthetic make them a versatile design tool that’s customizable for a range of canopy, walkway and awning applications.

Product Characteristics

Briteway® Canopy System

  • Innovative clearspan design
  • Polycarbonate glazing
  • Standing seam design with triple tooth-connection
  • Tight-cell extrusion
  • Co-extruded UV protection integration
  • Rust-free aluminum
  • A single-source solution supplying everything from the ground up
  • Components shipped fabricated and ready to assemble
  • Overall curved clearspan walkway widths of up to 20 feet
  • Wide variety of styles including vaults, ridges and single slope configurations - custom designs also available

U-Lite™ Canopy System

  • Engineered for, but not limited to, canopies designed with a pitch minimum of ½”:12
  • Systems utilize a 4mm thick monolithic standing seam glazing panel
  • Designed without a perimeter frame - optional enclosed edge is available
  • Wide range of glazing colors with translucent and transparent options available
  • Can accommodate both standard and flared end designs
  • Glazing panels are extremely durable and resistant to high impact
  • Aluminum glazing bars
  • Lightweight system
  • In-house CNC fabrication
  • Systems available for high velocity hurricane zones (HVHZ)
  • Co-Extruded UV protection integration

LiteBrow™ Suspended Canopy System

  • Standing seam design with triple tooth-connection
  • Co-extruded UV protection integration
  • Can utilize either tight-cell or monolithic polycarbonate glazing panels
  • Clear monolithic polycarbonate can be an affordable alternative to glass glazing
  • Translucent tight-cell extrusions
  • Three standard sizes - 5ft x 4ft, 5ft x 8ft and 5ft x 12ft – with custom engineered systems also available

Liteway™

  • Numerous standard shapes (pyramids, polygons, single slopes, ridges) as well as fully custom designs
  • Standard or custom grid patterns allow for design flexibility
  • FRP face sheet is available in a range of colors
  • Individual panels up to 5 feet wide and 20 feet long (depending on load requirements)
  • Spectra-Grid™ color option
  • Numerous finish options available
