Rooflight Window - WING 105 DI | RAICO

  • Available in

  • Use

    Exteriors
  • Applications

    Roof systems
  • Characteristics

    Inclination of up to 2°, small projection

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

2 General Catalogs

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
RAICO Logo

Contact manufacturer

RAICO

RAICO Logo

Contact manufacturer

RAICO

More from RAICO

Website Phone

More about this product

RAICO develops and sells tailor-made glass facades that allow unique architecture. RAICO offers WING 105 DI, a rooflight window.

Characteristics

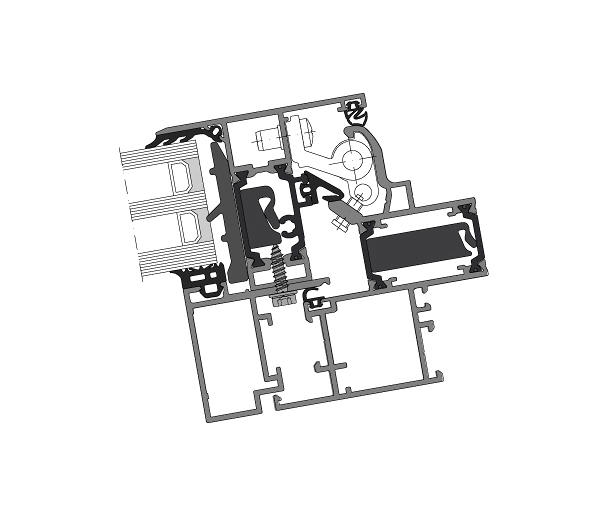

  • Two-part sash construction without visible screw connections for glass retaining strips
  • Safe drainage thanks to special profile geometry and multiple sealing system for reliable tightness
  • Vertical rotating hinges can be installed on either side
  • Only 37 mm glass fold offset between glass roof and skylight
  • Available as system goods or ready-made elements

Technical Features

  • Max. width: 2,500mm
  • Max height: 2,500mm
  • Max. sash weight: 165kg (110kg rotating)
  • Opening angle: 65° (90°)
  • Installation thickness: 9-48mm

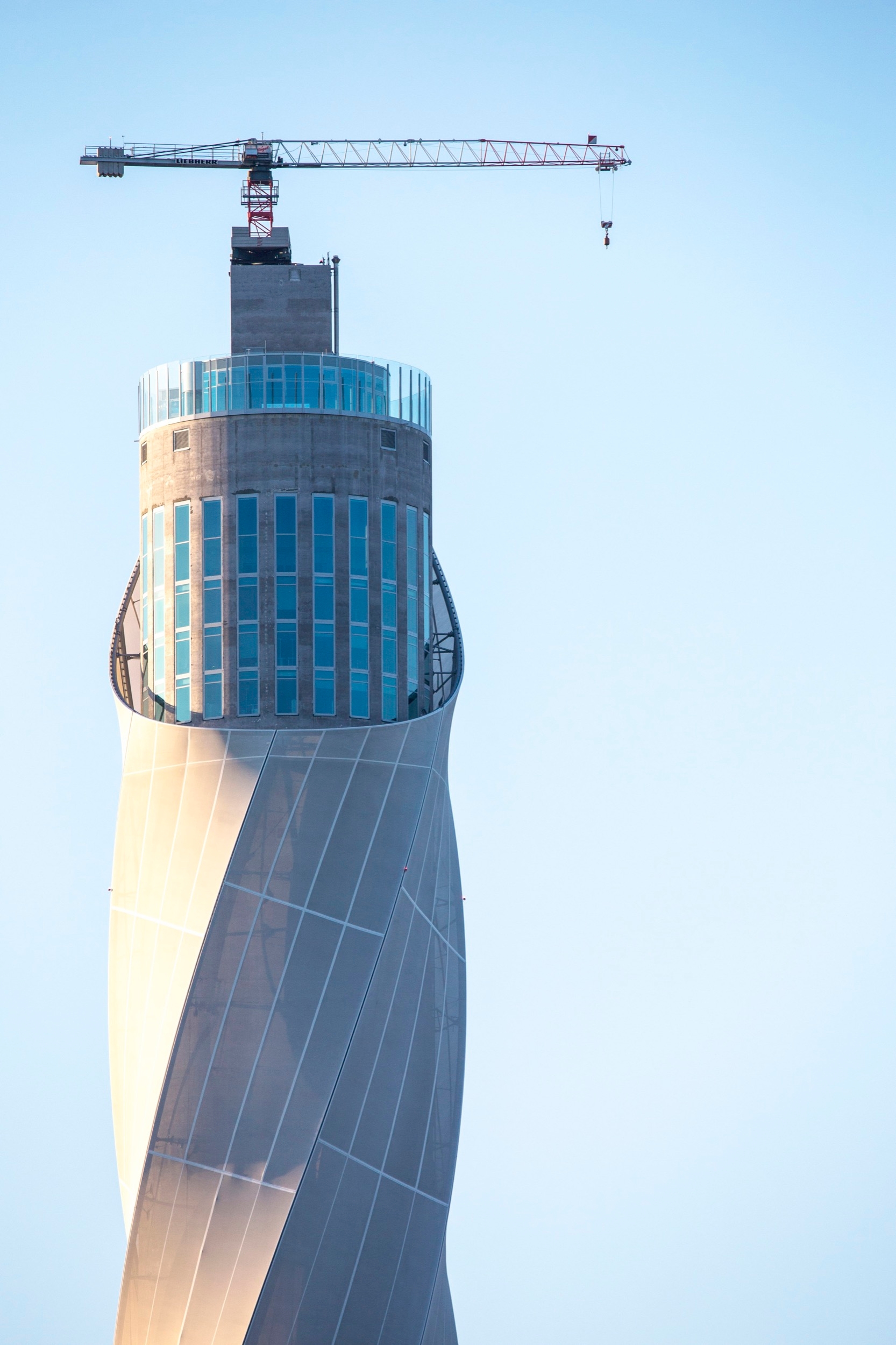

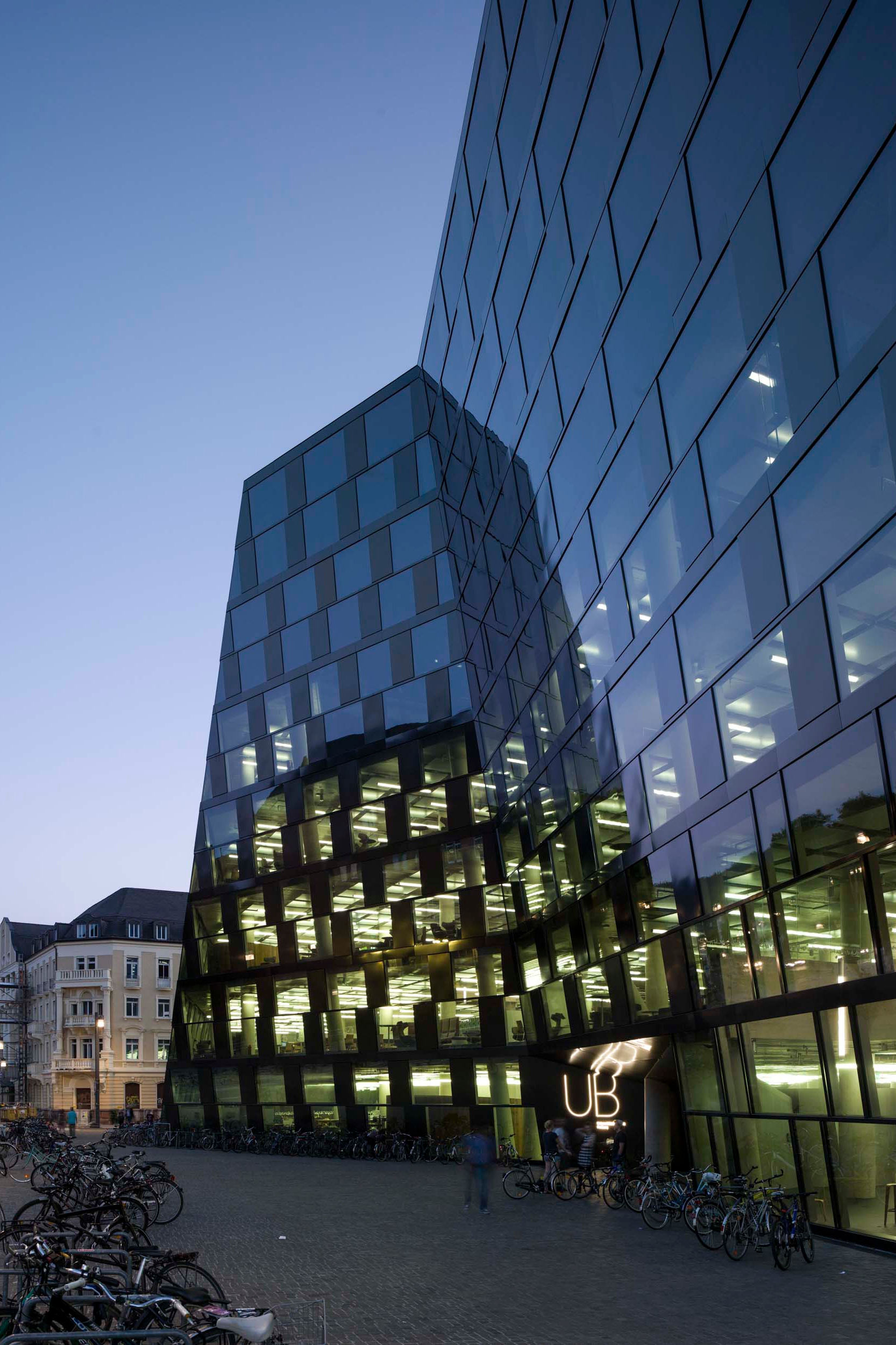

Product gallery
