Interior Linear Lighting | iGuzzini

The indoor linear lighting systems from iGuzzini offer continuous light that can be straight or curved. The lighting effects emphasize the geometrical shape of space. Besides the functional use of light, the light blades can be used to outline volumes, map out paths, or as a decorative element. The lights are made with LED lamps, specifically designed to improve energy efficiency. The light can be either static or dynamic in terms of both color temperatures and RGB tones. iGuzzini has four systems in its indoor range, the Libera System, iN 60, Underscore15, and Underscore18.

Libera System

The Libera system provides design freedom for custom creations, from intricate systems to standalone lights. It combines compact optics with smart tech, refined aesthetics, and selective materials. Libera can craft dynamic graphics that interact with space. Its joint offers full 360° rotation in three planes, ensuring adaptability to any setting. Achieving an efficiency of up to 125 lm/watts.

Features

• Opti Diamond integration offers high-performing miniaturized optical technology, that is only 15 mm
• Optic optionally available with an optic diffuser, including up/down in two colors to perform functional tasks when on, and create an aesthetic when off
• Extruded aluminum body with flush die-cast Zamak end caps
• 272 lumens
• Versions are available in different lengths

Models

Libera System - Ceiling to Floor	Libera System - Wall	Libera System - Pendant

iN60 EVO

iN60 is a modular lighting system for continuous lines. It represents a new innovation for the collection with the introduction of two new optics, both with very high efficiencies and visual comfort. The iN60 Evo Space version uses patented Opti Diamond optics, in two finishes, to produce a lighting distribution on both vertical and horizontal planes. With efficiency levels up to 150 lm/W and high fluxes. The iN60 Evo MMO version, with the new modular optic metallic (MMO), creates an efficient and comfortable light effect, with values up to 140 lm/W e UGR <19.

Features

• Modular lighting system for continuous rows
• Possibility of single or combined installation
• High level of light output
• Downlight and up/downlight versions
• Frame versions (support type) - minimal versions (flush with the ceiling)
• Extruded aluminum profile and zamak heads
• Pendant, recessed, surface mounting, and wall-mounted installation
• Electronic wiring and DALI are available
• Suspension versions have cables fitted with a creep adjustment system

Models

iN60 Evo - Opal White	iN60 Evo - Space	iN60 Evo - MPO Micro Prismatic Optic
iN60 Evo - MMO Metalized Modular Optic	iN60 Evo - Wall Washer

iN90

Modular lighting systems for continuous lines in an extruded aluminium profile, meant for general lighting. It is equipped with an opal diffuser screen for soft and comfortable lighting.

With zama end caps, it is mounted on a sheet steel wired lamp holder plate.
It has a high level of light output and an available pendant version with cables equipped with a system for millimetric regulation.
UGR<19: a comfort version with a microprismatic screen specifi cally for workplaces ensuring values of UGR < 19 and controlled luminance < 3000cd/m2.

iN90recessed Flush mount installation.	iN90ceiling-mounted Ceiling-mounted installation.
iN90pendant Pendant installation.	iN90wall-mounted Wall-mounted installation.

Underscore

Underscore is a technological combination of a frontal emission strip with a cover or sheath to protect the LEDs and a slim aluminum profile. The system is designed with two different usage options. Either a Ledstrip or a Ledstrip Tube can be fitted on the aluminum profile. Both types are easy to replace.

The Ledstrip is covered with a layer of polyurethane. The material reduces the risk of the strip being broken and maintains the LEDs by preventing any contact. The Ledstrip Tube is covered with a silicone sheath, which also protects the strips from breakage by reducing the stress that could lead to tears.

Features

• Linear illumination with monochrome LEDs
• Wall/ceiling mount installation
• Can be sectioned at pre-set intervals depending on the version
• Non-sectioned strips (full length) have IP65 protection class; circuit ends are fitted with IP20 end connectors, therefore the installer is responsible for completing connector insulation operations
• The values specifying the color temperature of the white LEDs are indicative and subject to variation

Models

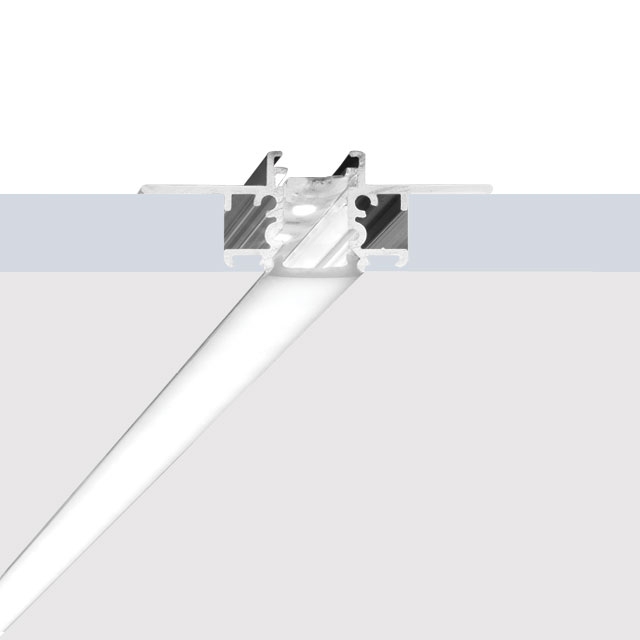

Underscore15 - Recessed	Underscore15 - Surface Mounted	Underscore15 - Perimetral
Underscore15 - Corner	Underscore18 - Recess Minimal	Underscore18 - Perimetral
Underscore18 - Surface

LineaLuce
Linealuce is a linear product that brings architectural details to life. The range has higher performance solutions that minimize energy consumption per meter, in accordance with the size of the wall being lit. The Compact and Mini, surface-mounted and recessed versions, are
available with a vast range of optics and colour temperatures and when combined with control systems are ready to help designers create new narratives for architecture to tell.

• Luminaire intended for use with monochromatic, RGBW, Tunable White and Tunable Warm LED.
• Ceiling, wall, surface installation.
• Extruded aluminium body and flush end caps in die-cast zamak.
• 4 optics types available: Wall Grazing, Wall Grazing with Microlouvre, Accent and Flood Light and No Dot.
• The LineaLuce is divided in the Mini and Compact versions, both available in surface and recessed versions

Linealuce27 surface	Linealuce37 recessed
Linealuce47 surface	Linealuce47 recessed
