Minimal Sliding Door System - Motion 520 | Motion Facades

• Available in

• Use

  Door system

• Applications

  Residential, commercial

• Characteristics

  Thermal insulation, 6 maximum locking points, minimal sliding

Contact manufacturer

Motion Facades

Contact manufacturer

Motion Facades

More from Motion Facades

Website Phone Send Message

More about this product

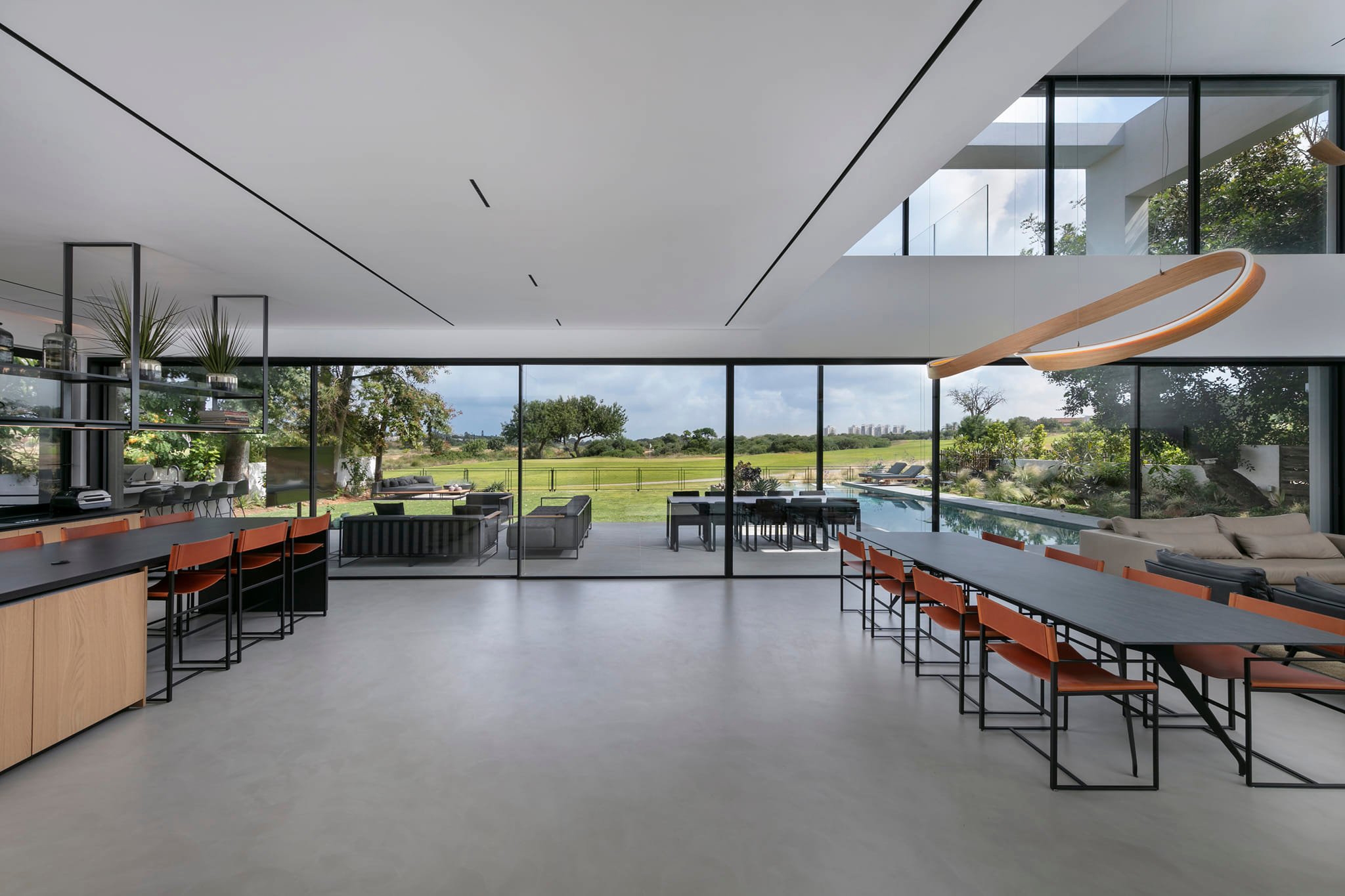

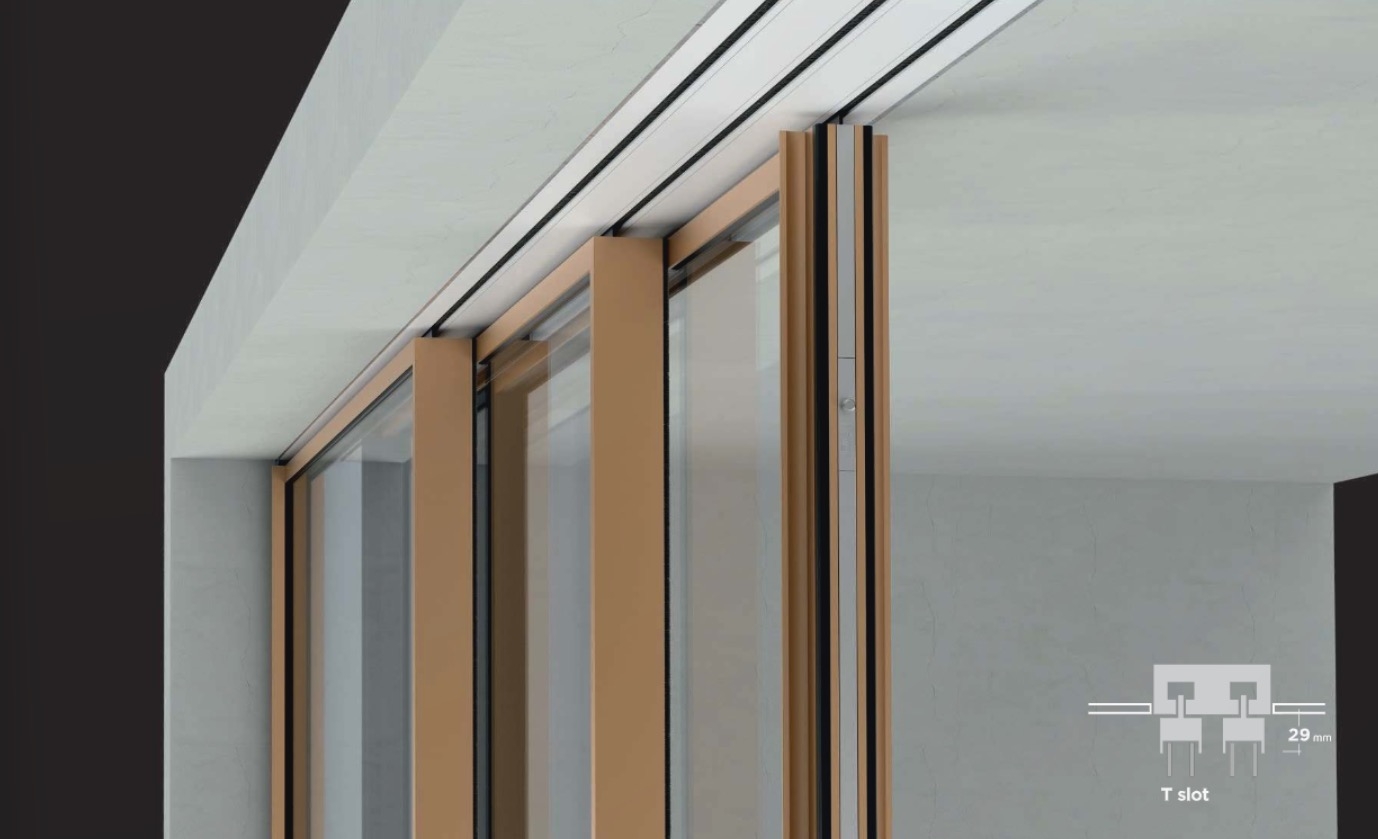

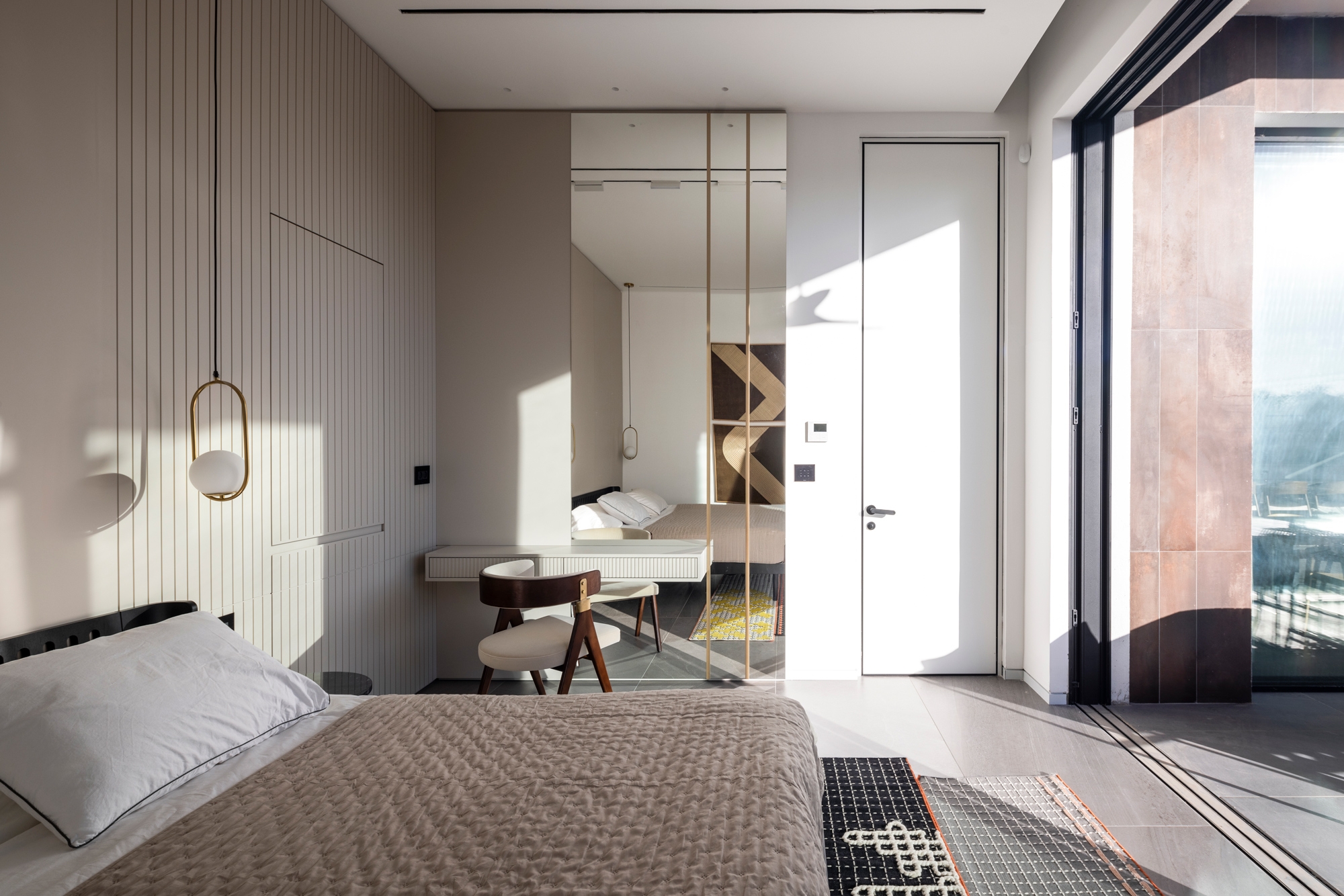

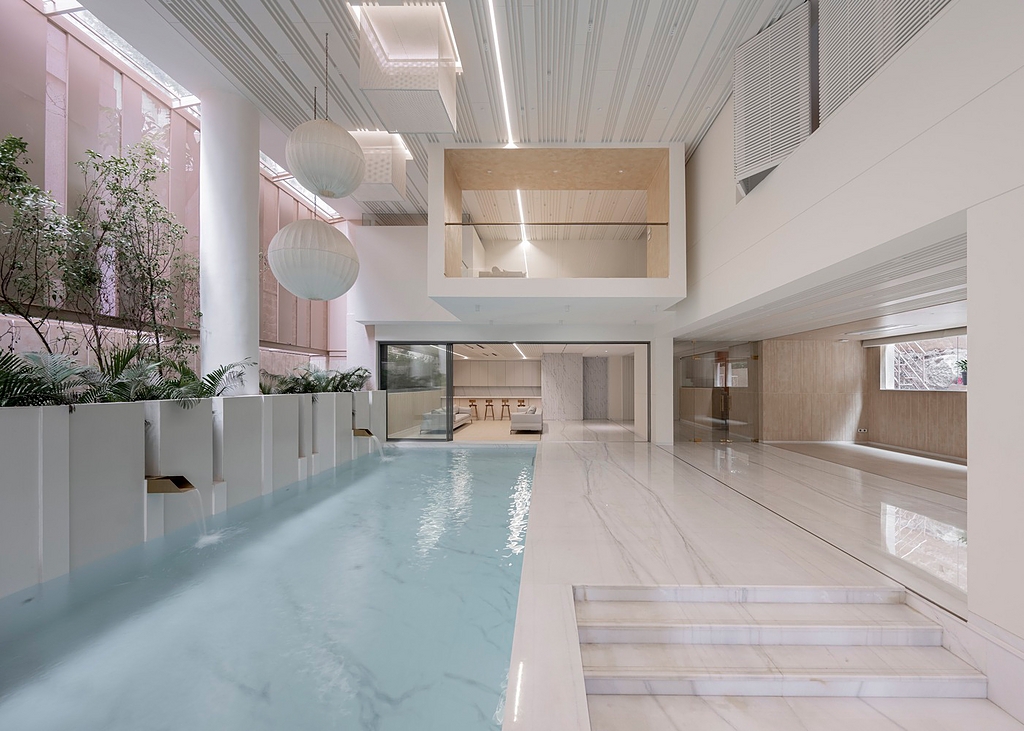

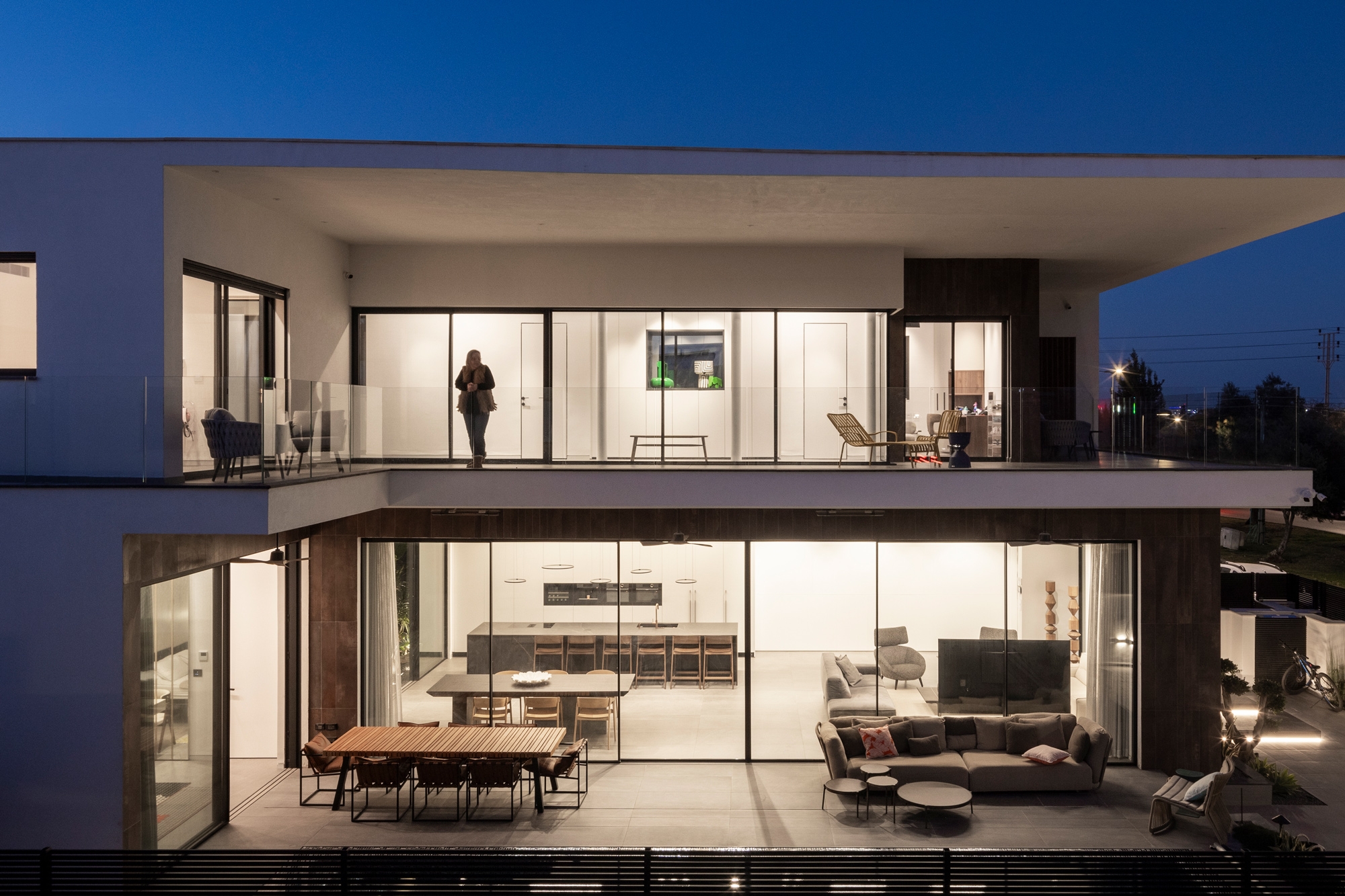

Kinetic Facades presents Motion 520, a minimal sliding door system with thermal insulation properties.

Technical Characteristics

Frame Height, Vertical	42 mm
Frame Height, Horizontal Bottom	57 mm
Frame Height, Horizontal Top	60 mm
Frame Width	62 / 133 / 205 / 276 mm

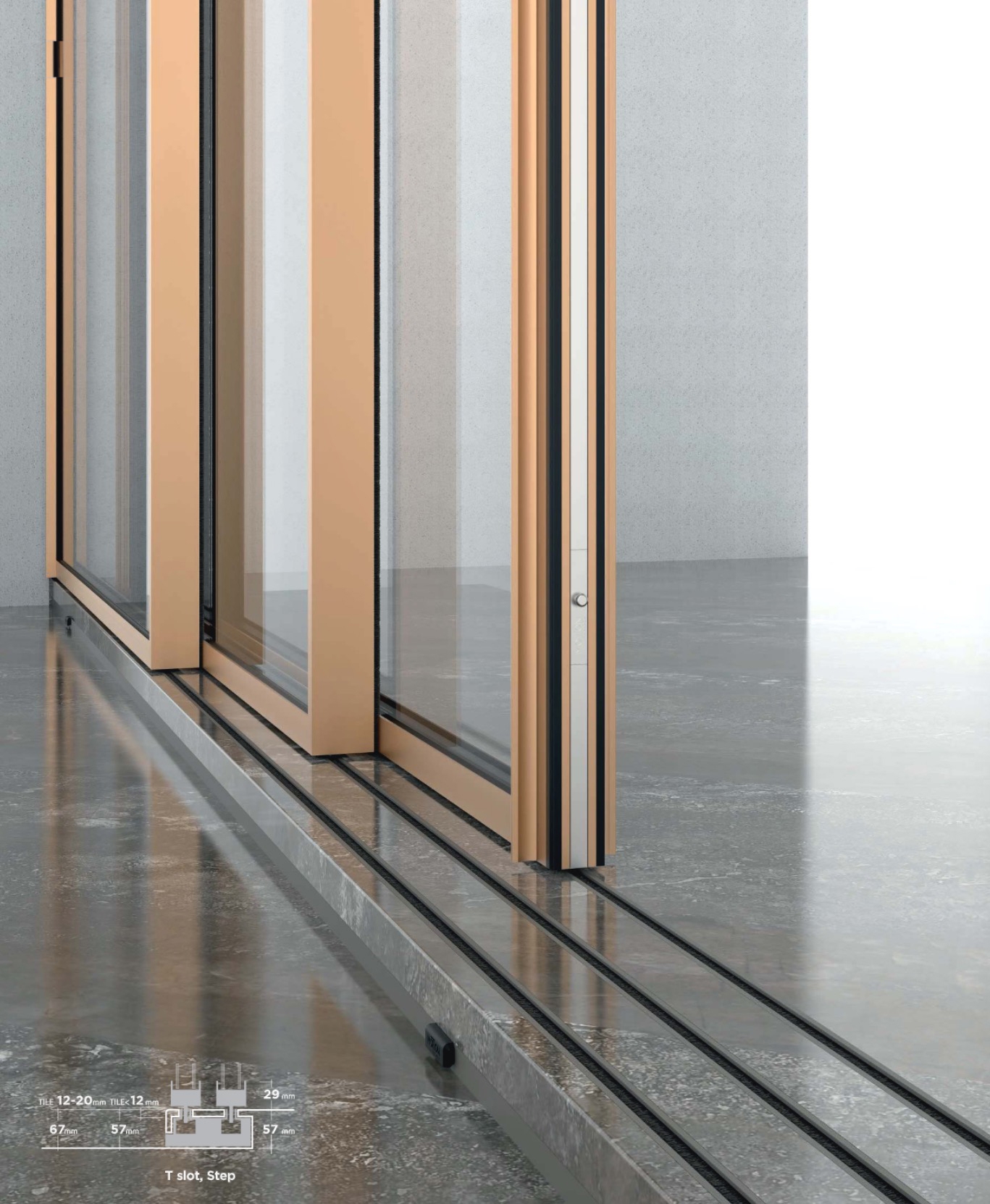

Floor Typology	Step, Submerged
Riding Typology	Blade
Sash Height, Vertical	16 / 20 / 30 mm
Sash Height, Horizontal	29 mm
Centre Mullion Visible Height	16 / 20 mm
Max. Weight per Sash	600 Kg
Max. Sash Width	3000 mm
Max. Sash Height	4000 mm
Glazing Width Possibilities	32 mm
Glazing Type	Glazing bit + Bonding
Sealing Type	2 layers of Gask
Fabrication Thermal Transmittance	≥1.3 W/(m2K)
