Gres Aragón's ventilated facade solution by Faveker^® can be installed on light fixing systems that optimize the costs of the substructure, emphasize the linearity of the design, and absorb vibrations. The systems are easy-to-assemble and are compatible with a variety of Faveker tiles allowing for a large range of customization possibilities.

Fixing Systems

FTS 502 A	FTS 502 B

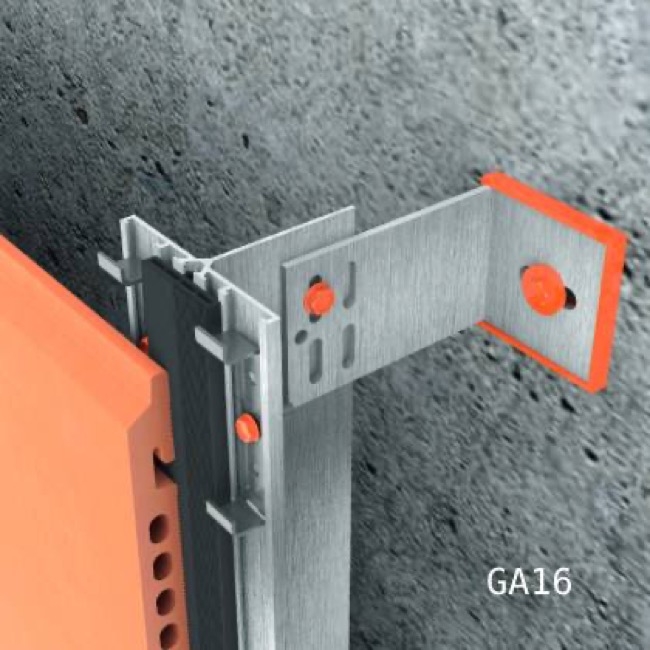

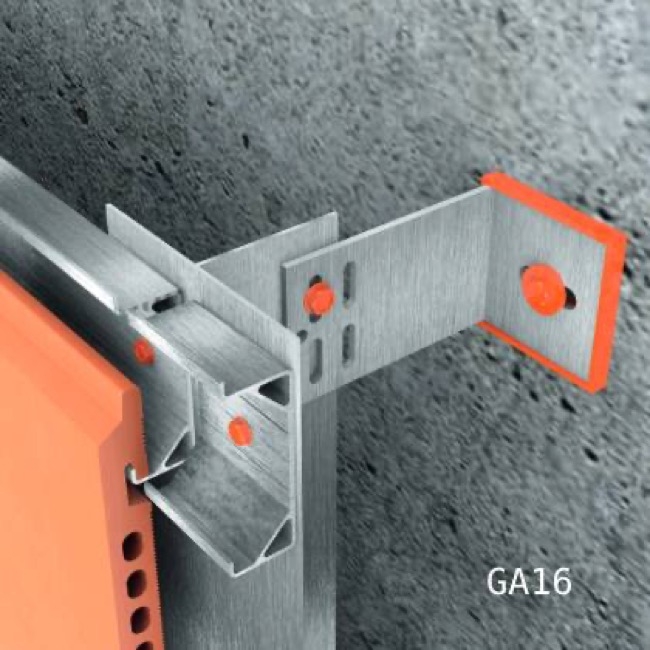

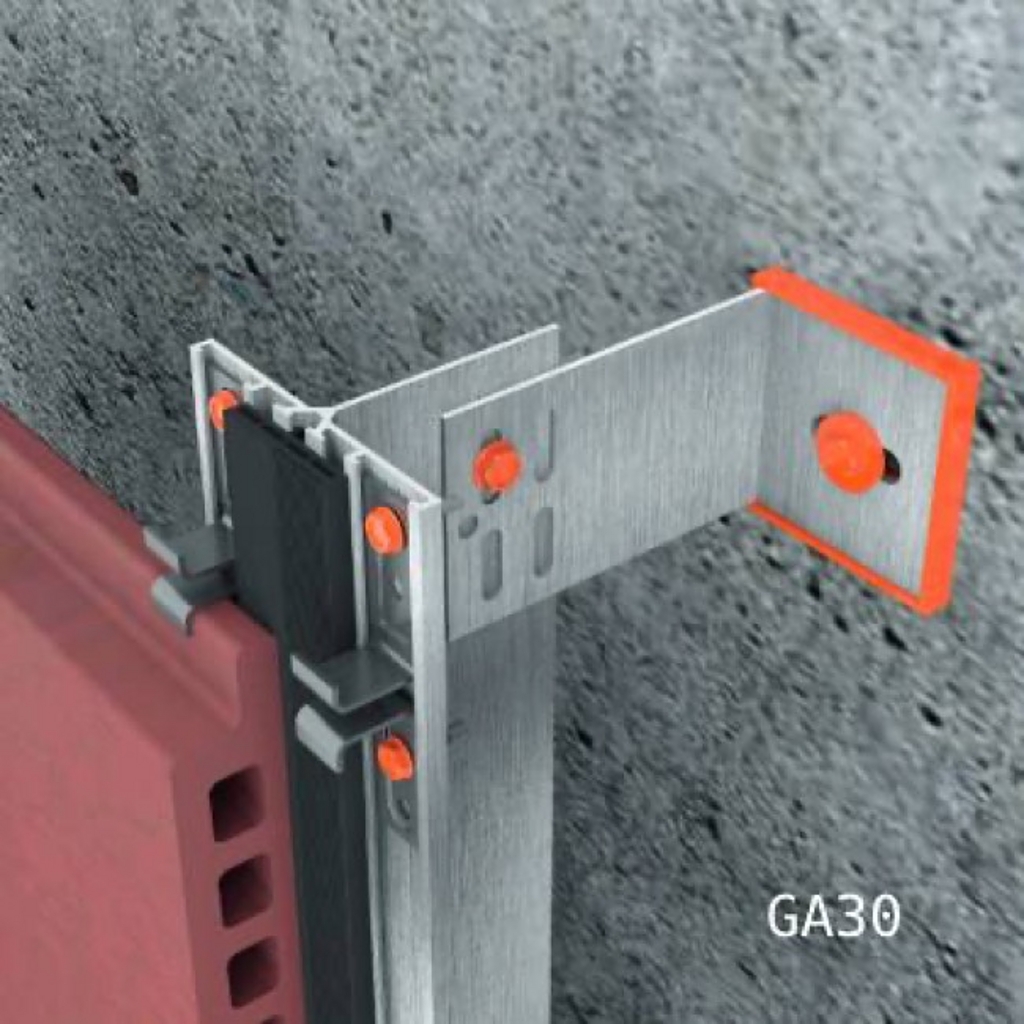

A hidden fixing system with horizontal profiles that absorbs vibrations using spring clips or polymer resin Available in aluminum or stainless steel Allows designs of façade that break up the vertical linearity Compatible with GA16 and GAV Ideal for refurbishment and buildings with small-size tiles Horizontal profiles are installed on vertical profiles which are fixed on brackets	Fixing system with vertical profiles made of vertical and horizontal load brackets Simple and double stainless-steel clips and connecting elements The continuous vertical joint includes an EPDM profile to avoid the entry of water and vibrations The brackets are designed to be adapted to different air chamber thicknesses It allows lengths up to 1200 mm between vertical profiles Compatible with GA16, GA20, and GA30
FTS 502 B Vertical	FTS 506

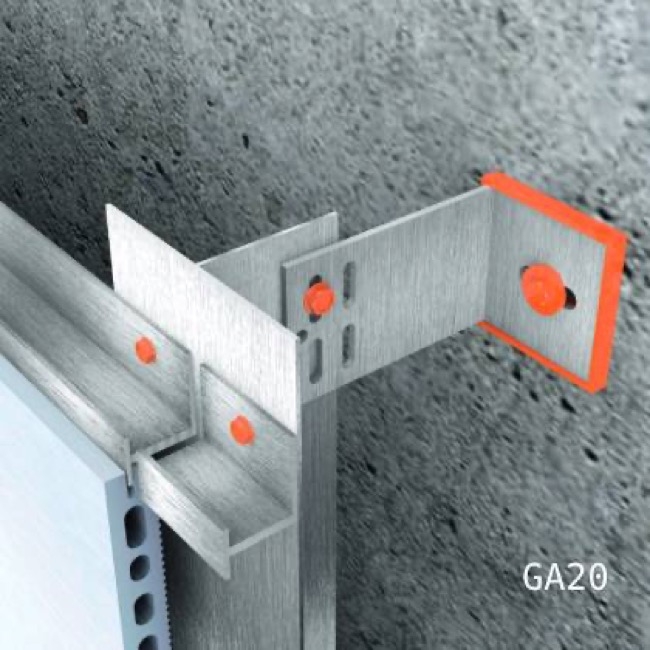

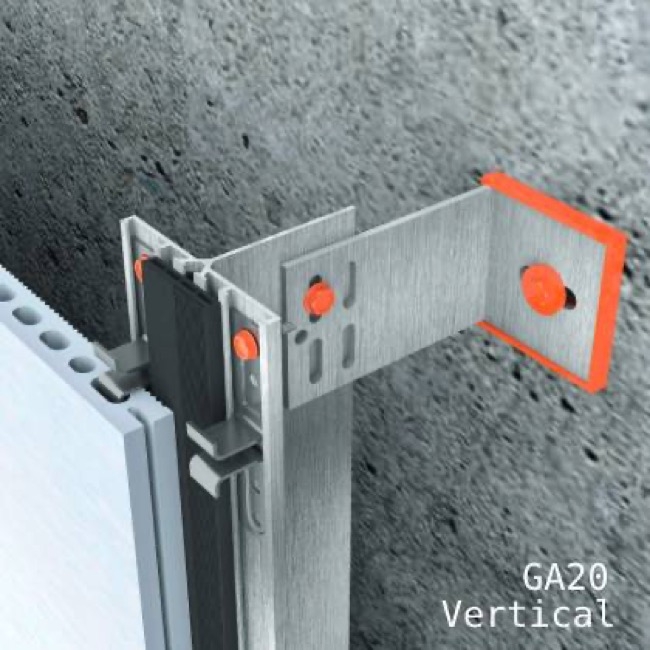

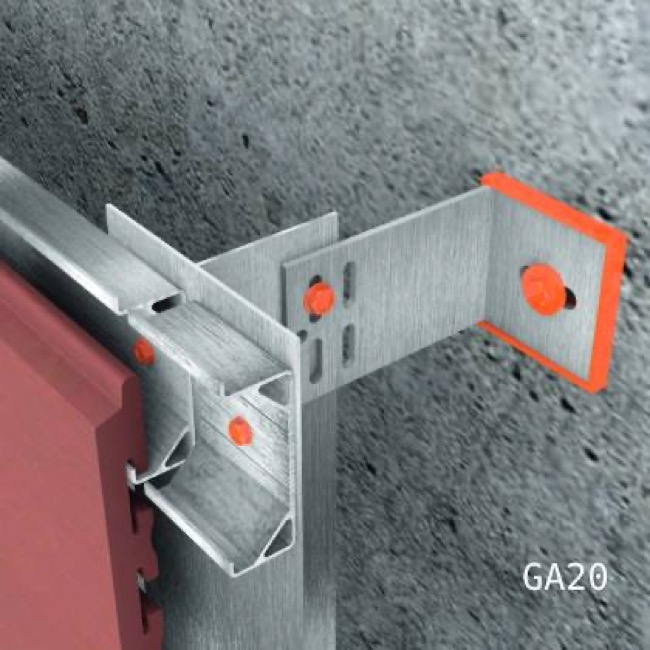

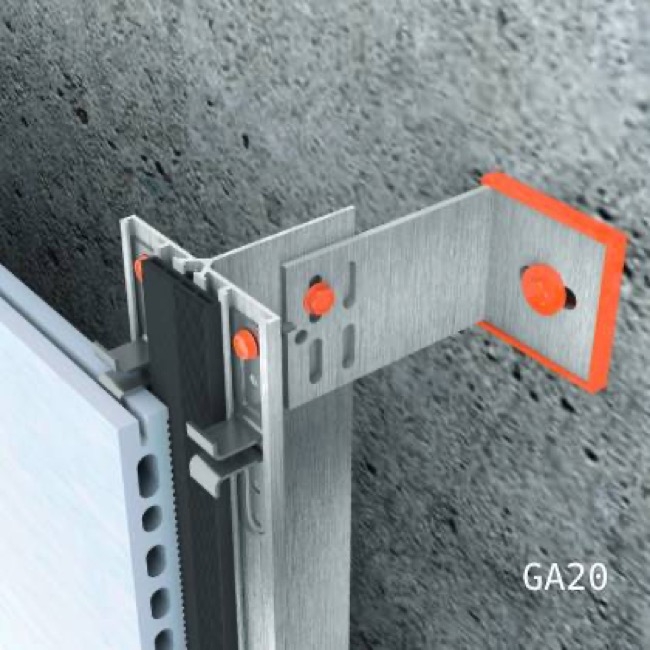

Variation of the FTS 502 B system that allows for a vertical orientation of the GA20 ceramic pieces It is made simply by anchoring the pieces entering the clips on the holes of the piece instead of the longitudinal groove	A hidden fixing system made of vertical and horizontal load brackets Horizontal battens enable out-of-phase layouts with the Faveker tiles Horizontal profiles are installed on the vertical profiles which lay on the brackets The tolerance fitting between the ceramic tiles and the horizontal profile is made using polymer polyurethane mastic Compatible with GA20
FTS 506 GR	FTS 505

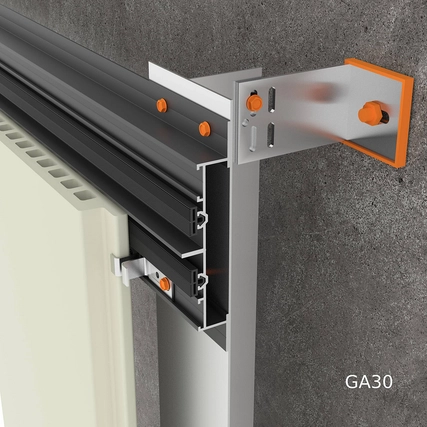

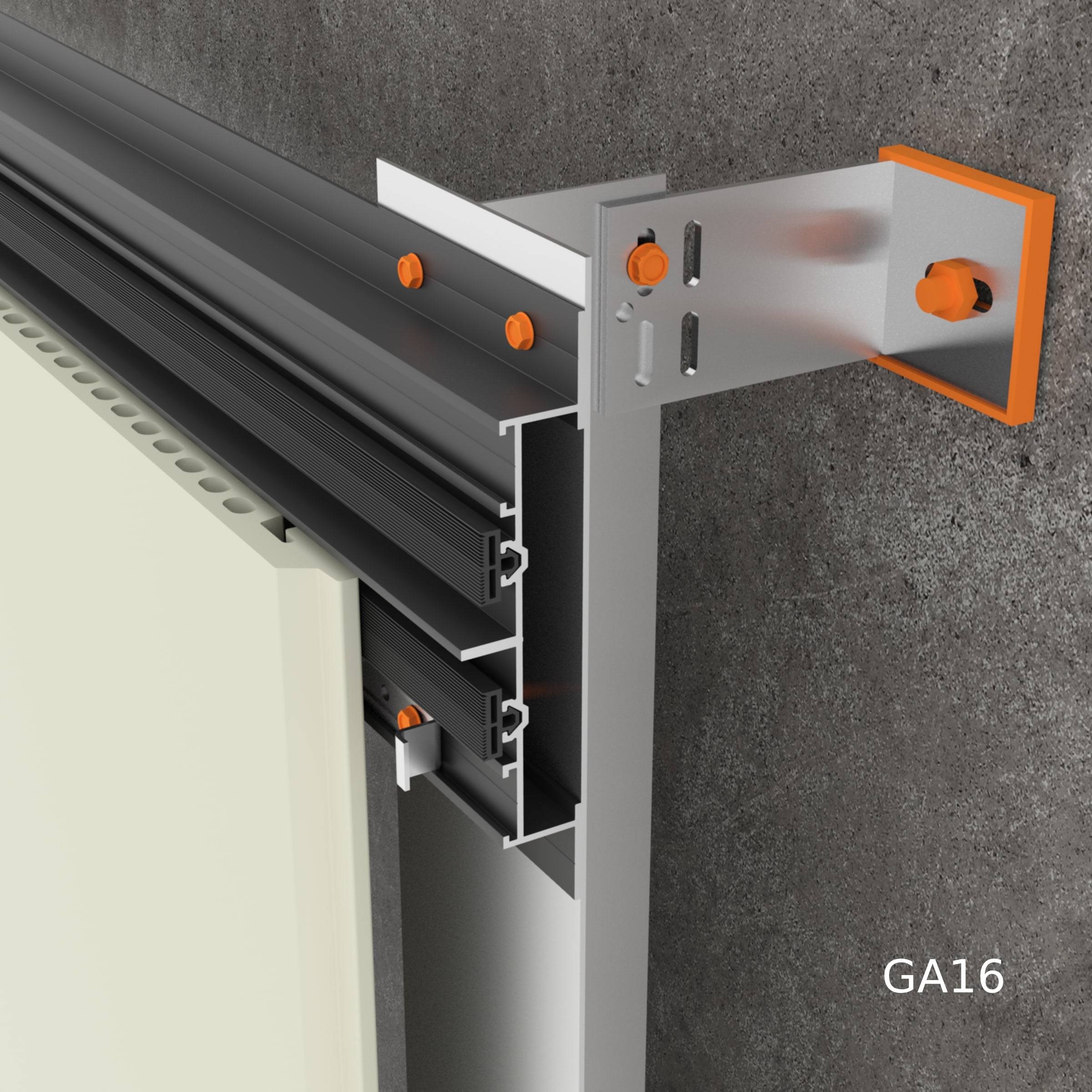

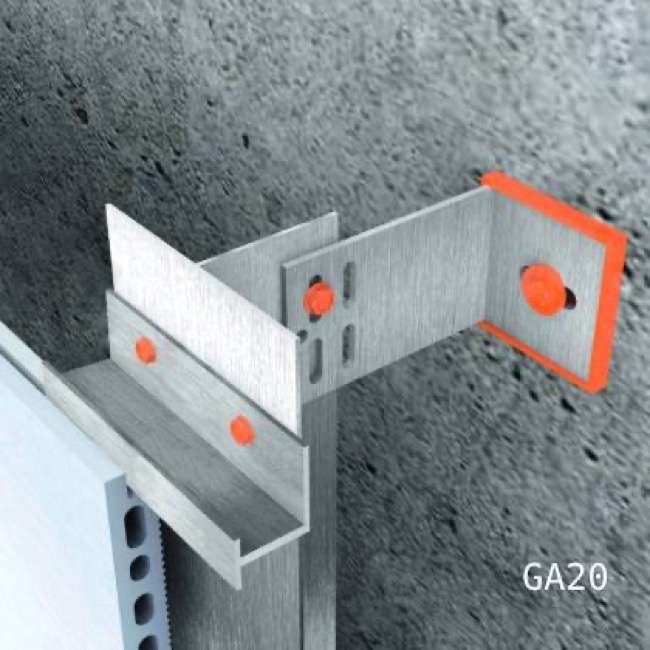

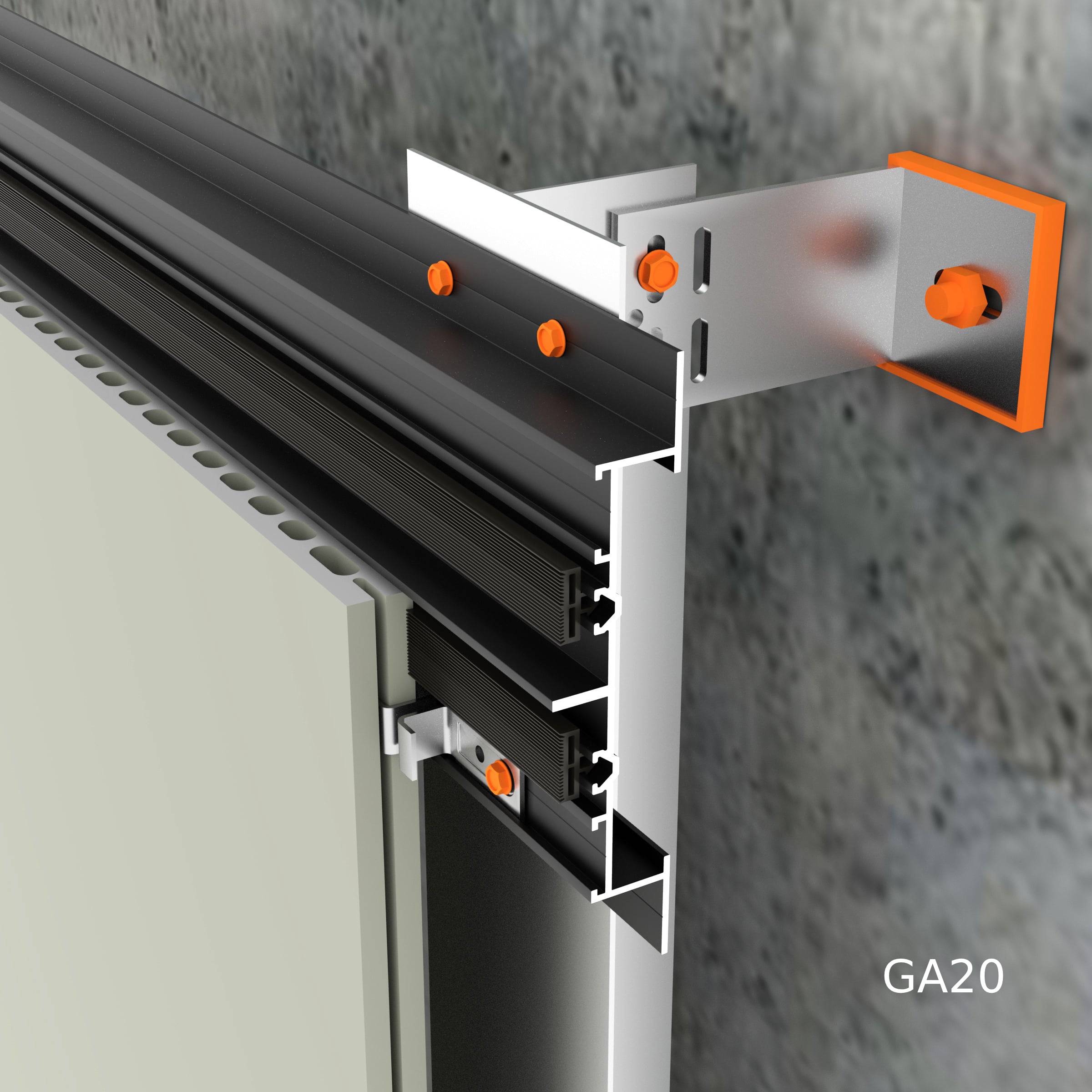

A hidden fixing system made of vertical and horizontal load brackets with horizontal sections of 150 mm long battens This system allows for optimization of the necessary amount of horizontal profile whilst maintaining high resistance performance as well as shortening installation time due to its easy and simple assembly Compatible with GA20	Designed for the vertical installation of GA16, GA20, and GA30 ceramic pieces. The clip is placed in the groove, not in the cavities. This system provides verticality to the facade and allows staggered joint installation. The FTS 505 has an EPDM profile along the horizontal joint to protect against water ingress and cushion vibrations.
