Wired Channel Glass | Appleton

  • Available in

  • Use

    Outdoor facades, interior partitions
  • Applications

    Commercial, residential, educational, refurbishment, transportation
  • Characteristics

    Low iron oxide content, profiled glass
  • Sizes

    Up to 90mm in flange height and 11 meter in length
  • Certification

    European channel glass standard EN572-7

1 Product File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Appleton Logo

Contact manufacturer

Appleton

Appleton Logo

Contact manufacturer

Appleton

More from Appleton

Website Phone

More about this product

Appleton is specialized in channel glass manufacture which provides channel glass solutions. Every piece of Appleton Uniprof™ U channel glass is produced as per European channel glass standard EN572-7 which is rigorous and reliable.

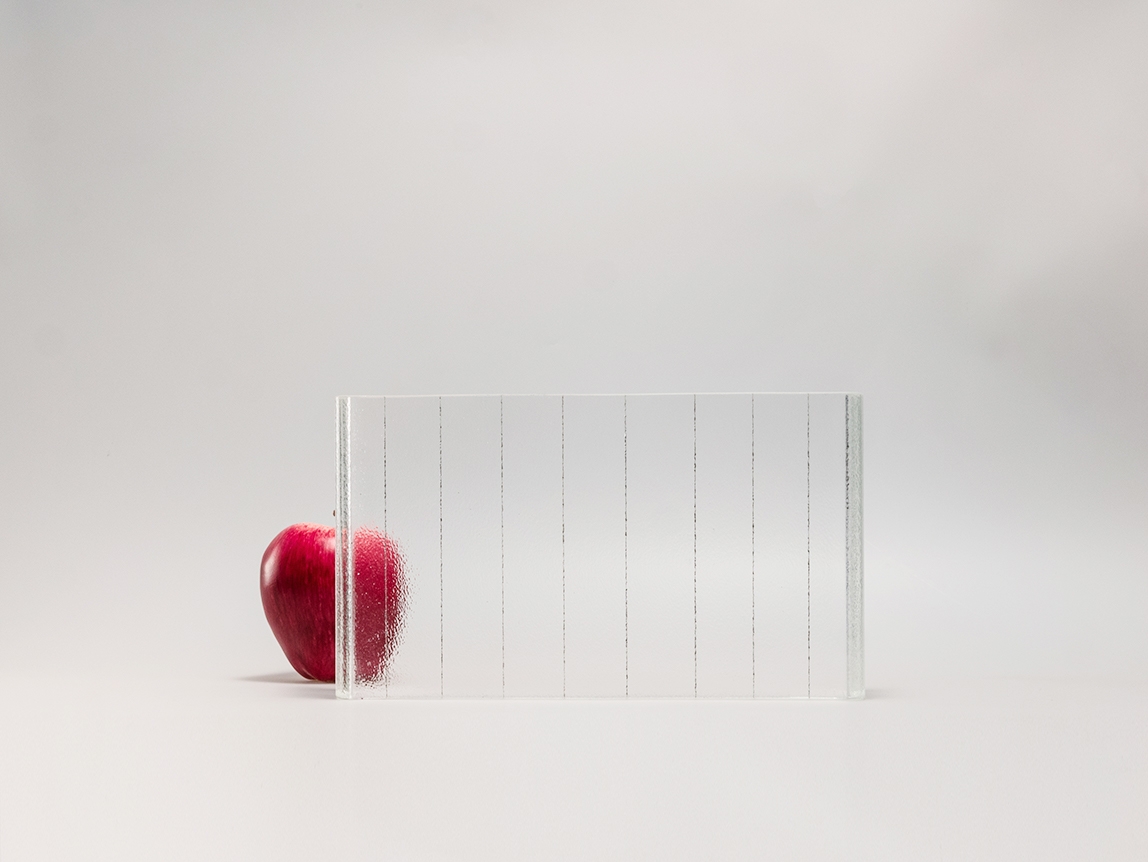

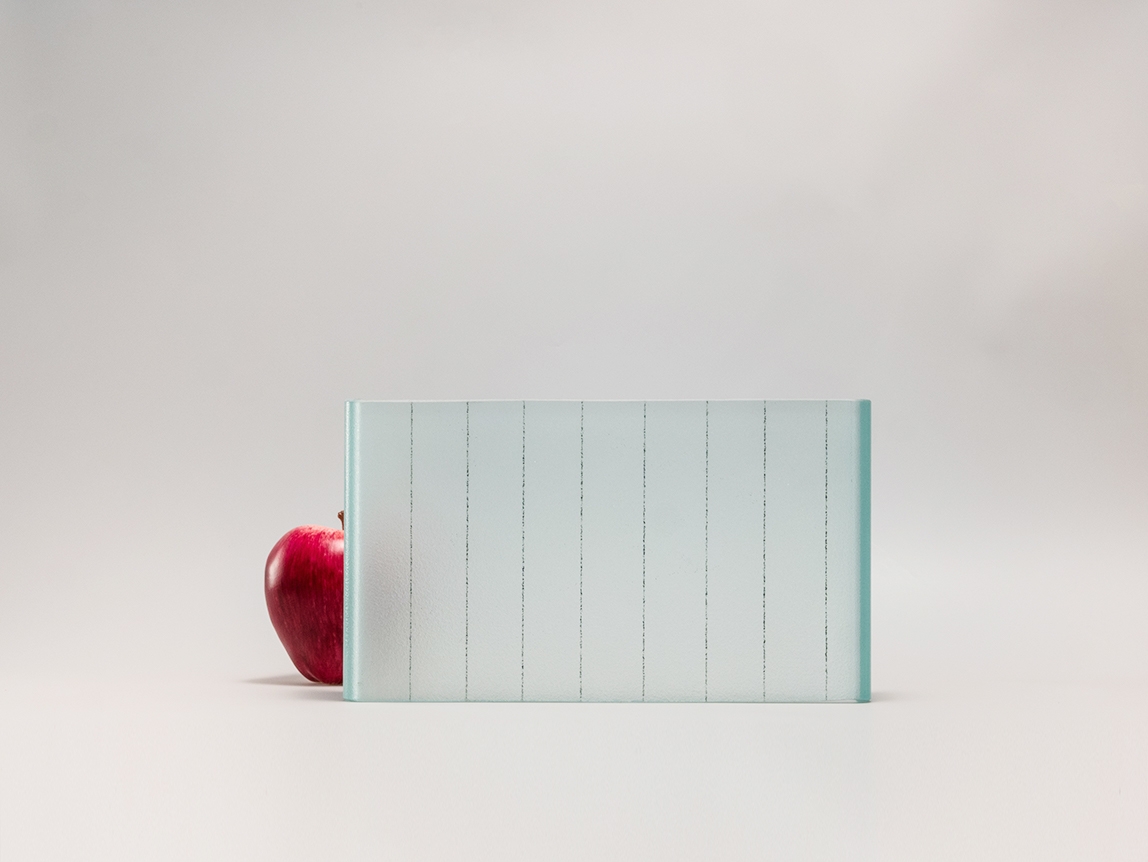

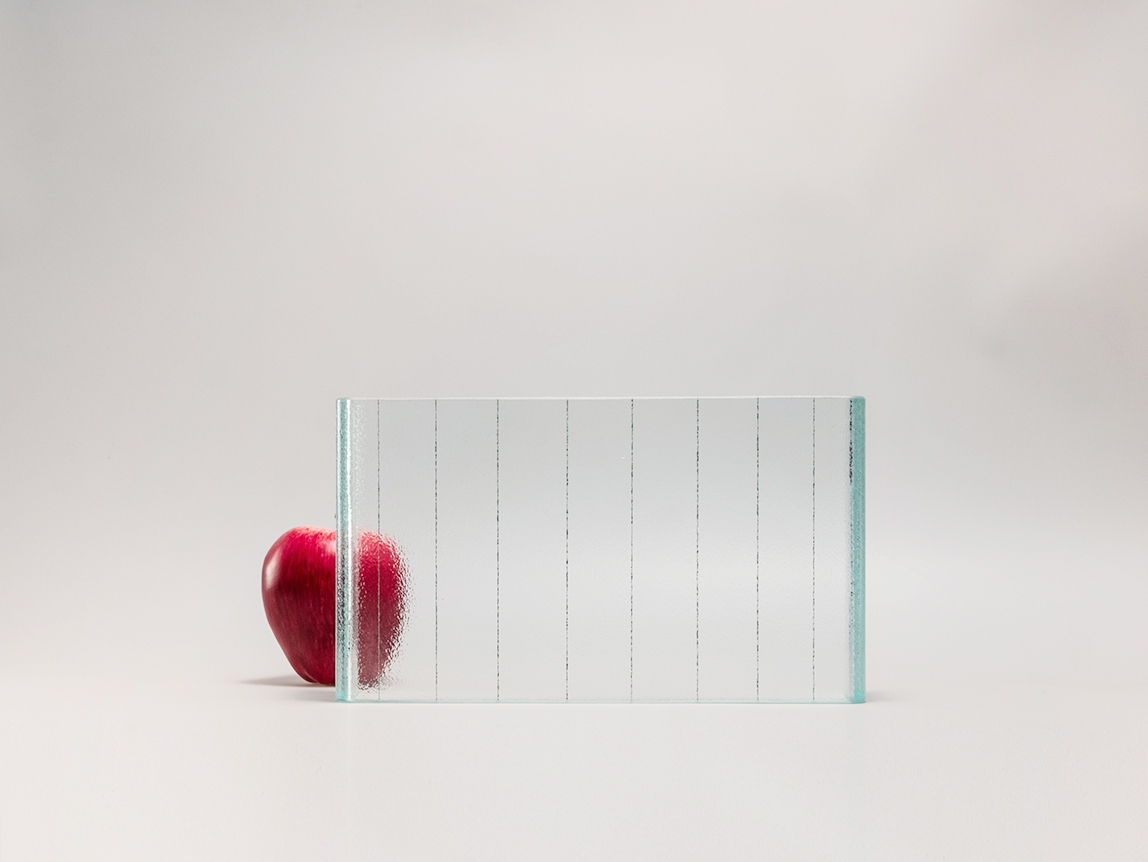

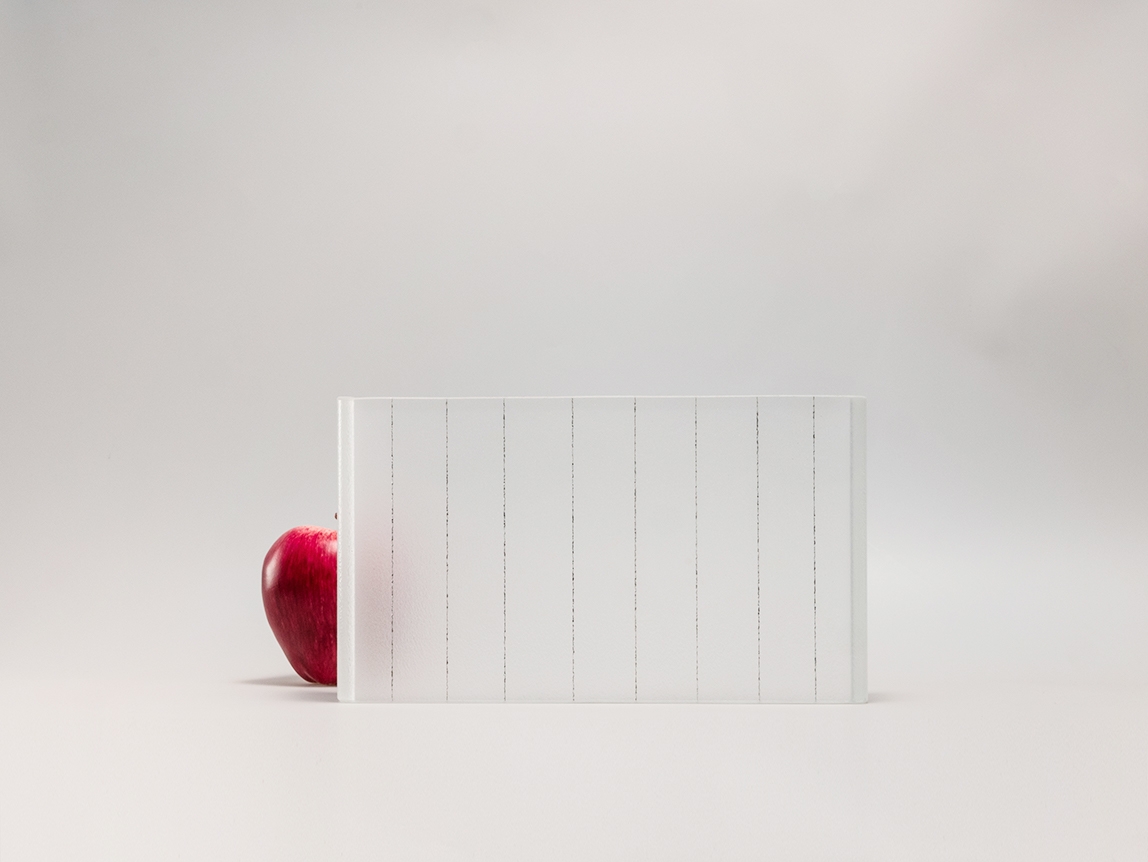

Wired Channel Glass

Appleton Uniprof™ Wired U channel glass is available in 504 Standard surface textures. The stainless-steel wire inlays run parallel to the long edge in order to hold the glass in place in the event of breakage. Appleton Uniprof™ U channel glass is suitable for use in protected circulation areas and at height.

Specifications

Width 262mm
Flange Height and Thickness 60mmx7mm, 90mmx8mm
Length Up to 7m
Pattern Ornament 504
Glass Composition Low Iron, Clear
Opal (Sandblasted) Optional
Tempered and Heat Soak Not Available
