Bi-Folding Doors - Highline | Solarlux

  • Available in

  • Use

    Folding doors
  • Applications

    Residential, commercial, hospitality
  • Characteristics

    Water tightness ups to 9A, bi-folding, mechanical lock system, thermal insulation, all-around sealing, customizable folding and colors available
The product has been saved to the folder: My Downloaded Products
Solarlux Logo

Contact manufacturer

Solarlux

Solarlux Logo

Contact manufacturer

Solarlux

More from Solarlux

Website Phone

More about this product

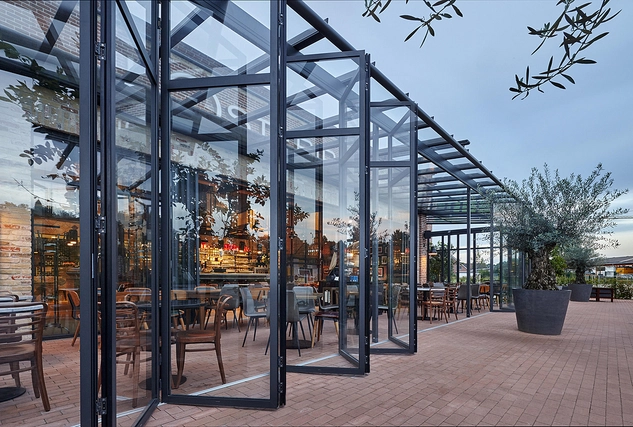

Solarlux's custom-made Highline Bi-Folding doors are very easy to open or close with wings that slide silently and easily either right or left, to the inside or the outside. Even in a closed condition, the glazing gives a feeling of huge transparency due to the slim aluminum profiles. With an overall openness, the Highline Bi-Folding doors bring in light and views to any room.

Applications

With great flexibility thanks to its sophisticated technology, the Bi-Fold Door is the ideal solution for a variety of building applications such as a classic exterior element, a solution for winter gardens, a multi-functional entrance for lobbies, and as noise and weather protection on balconies or for façades.

Matching Systems

For the aluminum version, Solarlux also offers matching window and door systems to give the facade a uniform design. These can be, for example, fixed elements, classic turn-tilt or tilt elements, model windows, skylights, or even doors.

BionicTURTLE®

The highly thermally insulated aluminum elements have a BionicTURTLE, a multifunctional insulating bar made of glass fiber-reinforced polyamide, integrated running, guide rails, and controlled drainage. The thermal break scores with outstanding structural and U values despite its minimal sight line of only 99mm.

Specifications

Overall depth 84 mm
Panel dimensions up to 3.5 m high and 1.1 m wide
Weight up to 110 kg
Glass thickness 22-62 mm
Thermal transmission Ug = 0.8 W/m²K
