Panel Fastener - PanelSafe Seismount | Fastmount™

  • Available in

  • Use

    Ceiling & wall panels, large panels, inspection & service panels
  • Applications

    Architectural, marine, aviation and recreational vehicles
  • Characteristics

    Easy installation, panel security, suitable for high-volume architectural installation, allows controlled panel removal
  • Sizes

    Drop length: 225mm

1 General Catalog

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Fastmount™ Logo

Contact manufacturer

Fastmount™

Fastmount™ Logo

Contact manufacturer

Fastmount™

More from Fastmount™

Website

More about this product

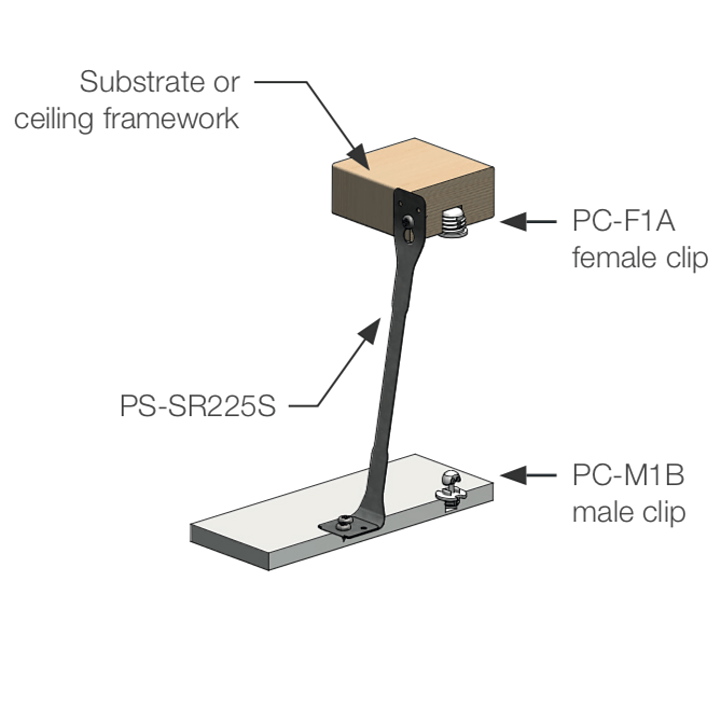

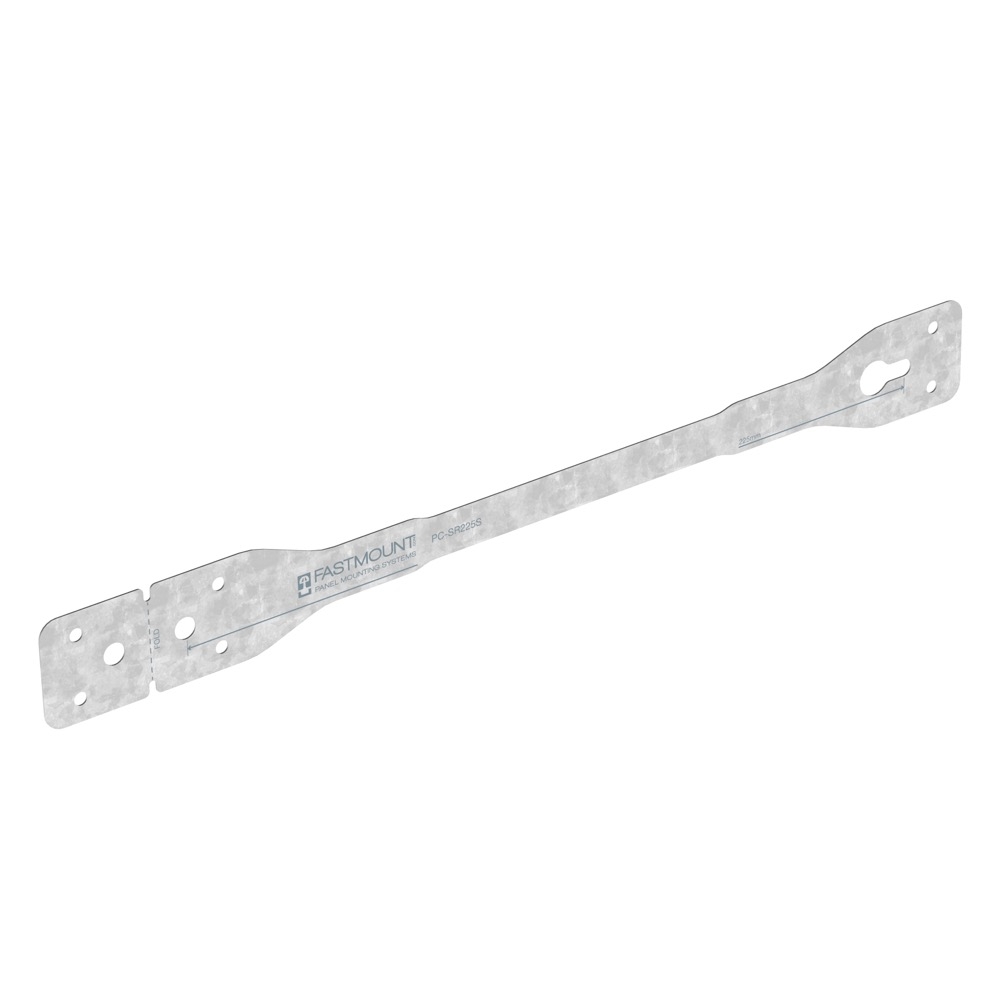

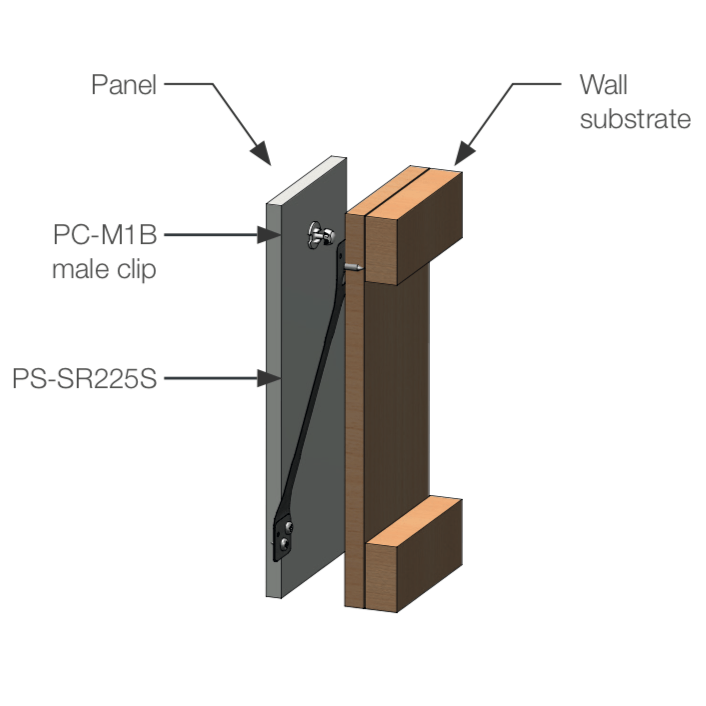

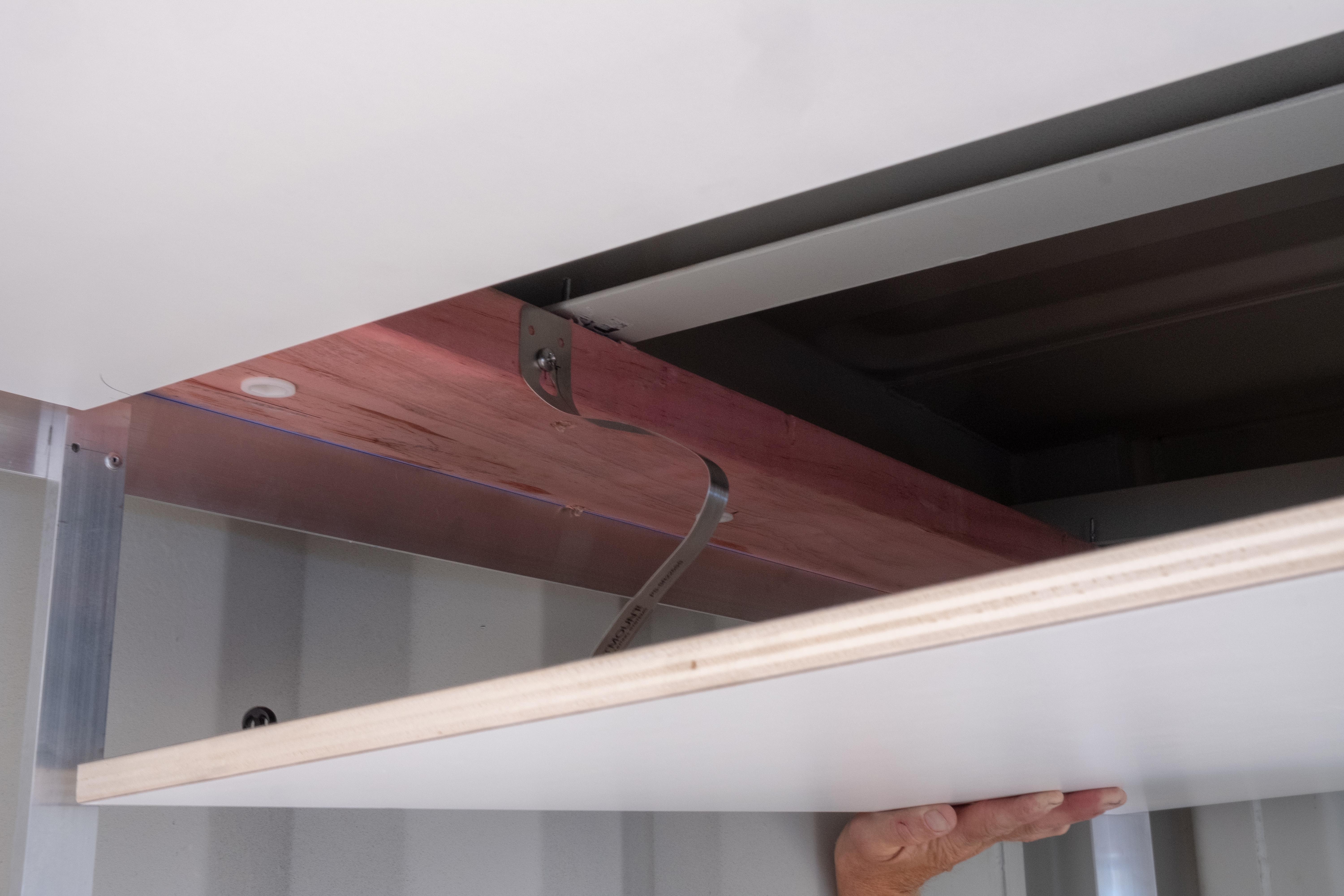

The Fastmount™ PanelSafe Seismount is a panel fixing element in galvanized steel. It is a strong solution for high-volume architectural installation where added panel security is required. The Seismount allows the panel to be suspended below the ceiling for convenient servicing behind the panel or the controlled panel removal. To remove the panel, simply unhook the strap from the screws to remove the panel.

Product Reference PS-SR225S
Break load 144kg
Use with Fastmount™ clips
  • PC Standard Range
  • LP Low Profile Range
  • VL Very Low Profile Range
  • MC Metal Range

Installation

Install with M10 pan head screw or 6.3 x 8mm euro screws.

Benefits

  • A low-cost solution for high-volume applications
  • No special tools are required for installation
  • Install directly onto substrate face with screws
  • Controlled removal of large panels
  • Seismic security for overhead panels
  • Prevents panels from falling

Fastmount™ is in the business of designing and manufacturing hidden fasteners designed specifically to service the marine, architectural, aviation, and vehicle industries globally.
