ASI Architectural offers two types of Linear wood systems; Tongue and Groove (T&G) and Reveal. Planks are field cut to fit irregular installations. For projects requiring acoustical absorption, ASI Architectural offers the option of an acoustical backer that can be installed above the linear system.
| | Standard Sizes | Options |
| Linear T&G planks | standard widths of 4″ or 5″ face | Three available edge options: V-Groove, Flat V-Groove, and Butt Joint |
| Linear Reveal planks | standard modules of 4″ or 6″ | Three available reveal widths: 1/4″, 1/2″, 3/4″ |
Types
| Linear Reveal | Linear Tongue and Groove | Linear Alumiline |
| | | |
- Planks provide a monolithic appearance with staggered end joints
- Custom widths and reveals are available
- Custom stains and species available
- Felt or ABS plastic filler strip to conceal the hardware and plenum
| - Planks can provide a Traditional look in V-groove edge
- Planks can provide a Modern look in Butt Joint edge
- Custom widths are available
- Custom stains and species available
| - Planks provide a monolithic appearance with staggered end joints
- Custom lengths available for seamless installations
- Perfect for high humidity installations
- Optional Powder Coat finish provides durability in high traffic areas
|
Options
- Perimeter trim options up to 6" are available
- Felt or ABS filler strips to enhance reveals between planks
- FSC available
- Optional features for sound control: Acoustical backer available in 1″ and 2″
Core materials:
- Class A Fire Rated Particle Board
- Class A Fire Rated MDF
- Moisture-resistant MDF for exterior applications
Mounting
Attachment clips easily snap to 15/16″ HD T-bar grid. Direct-attach clips can be used to install directly onto walls and ceilings.

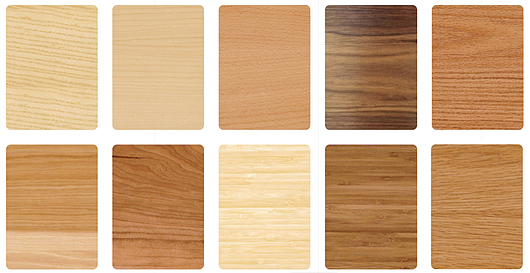

ASI Architectural Wood Finishes
- Clear lacquer top coat
- Class-A varnish
- Stained to match
- Touch-up finish available for field application
