Hollaender Manufacturing Company produces a wide array of architectural railing systems. These hand and guard railing systems can be designed to fit individual projects by engineers at Hollaender.

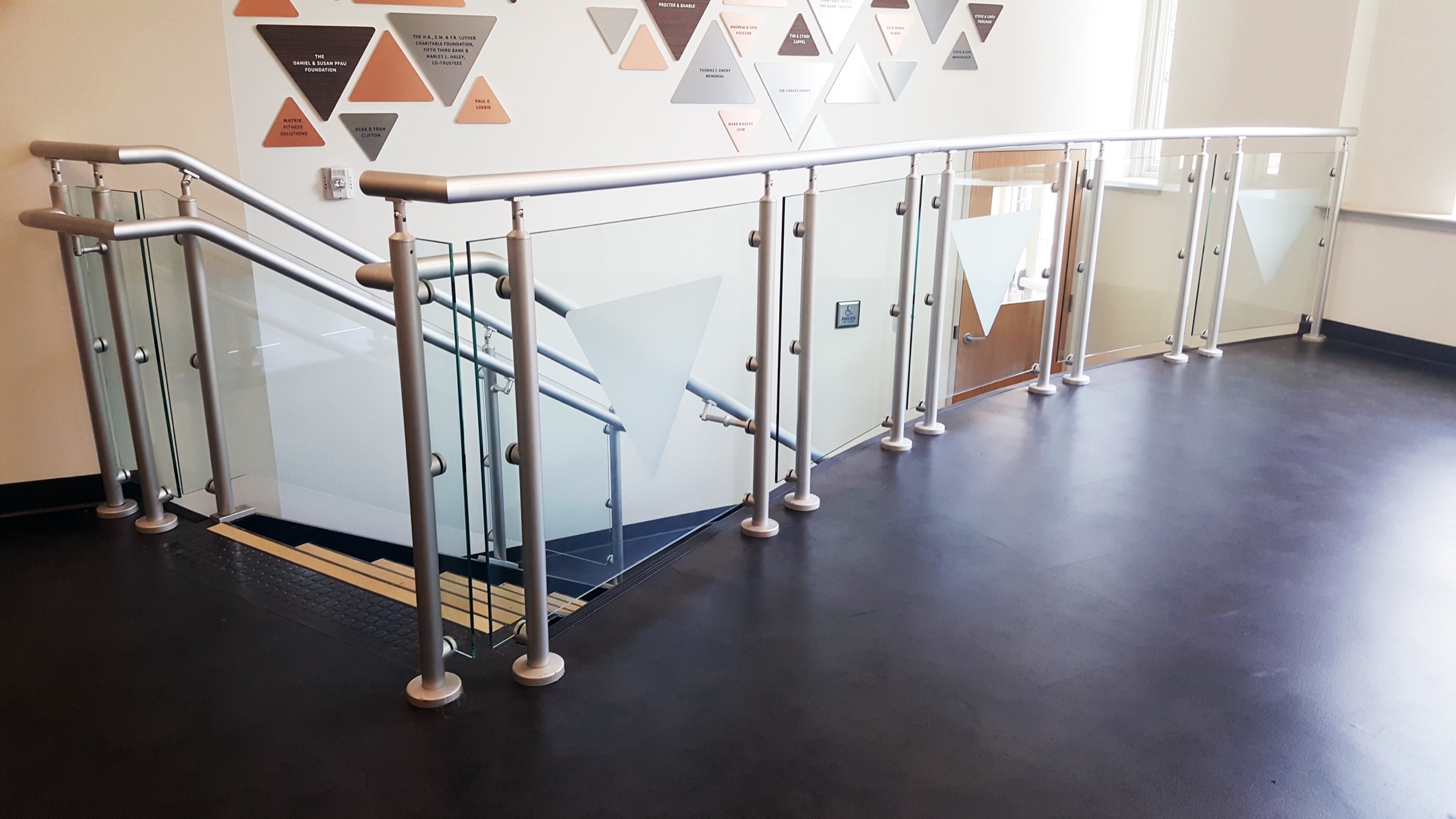

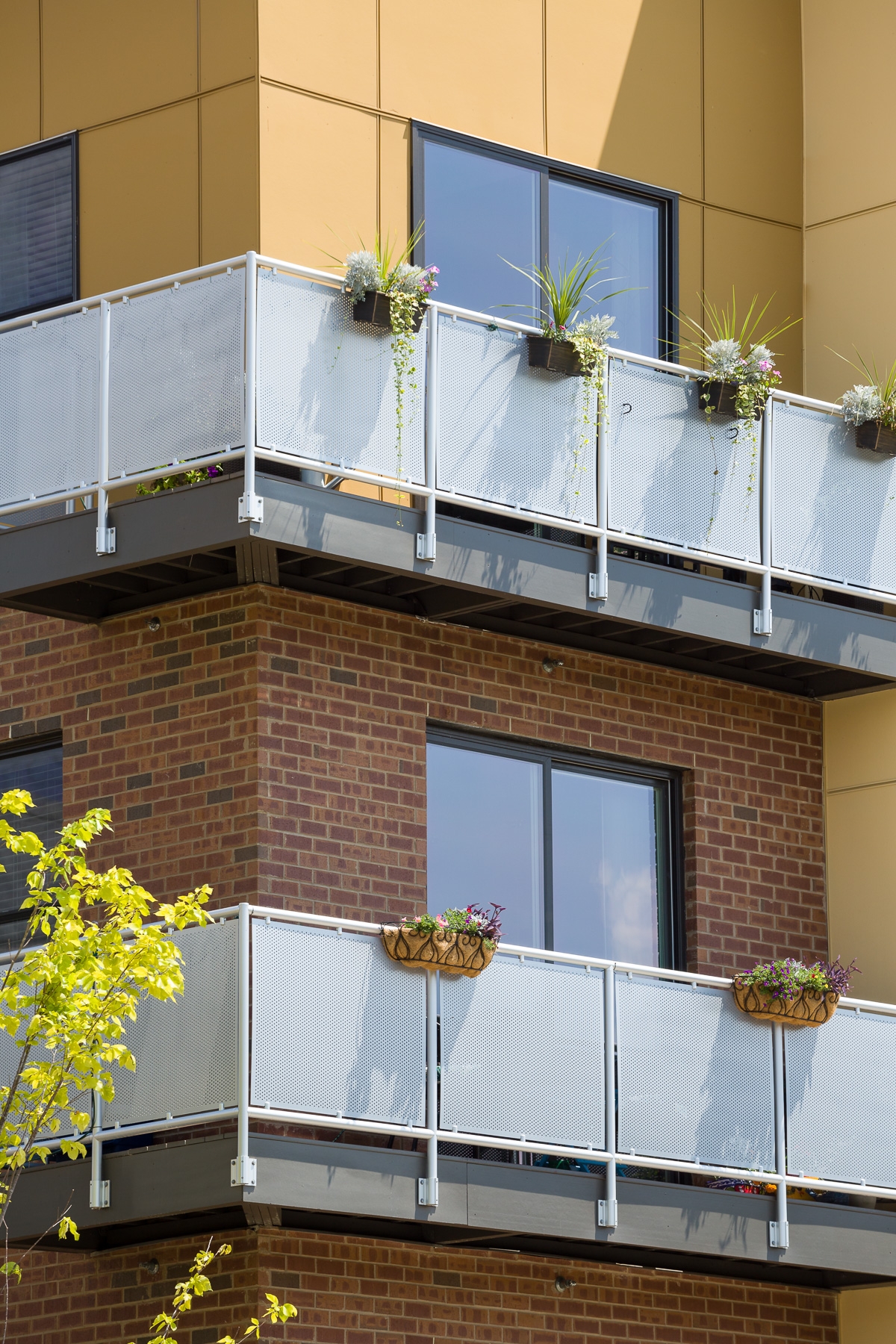

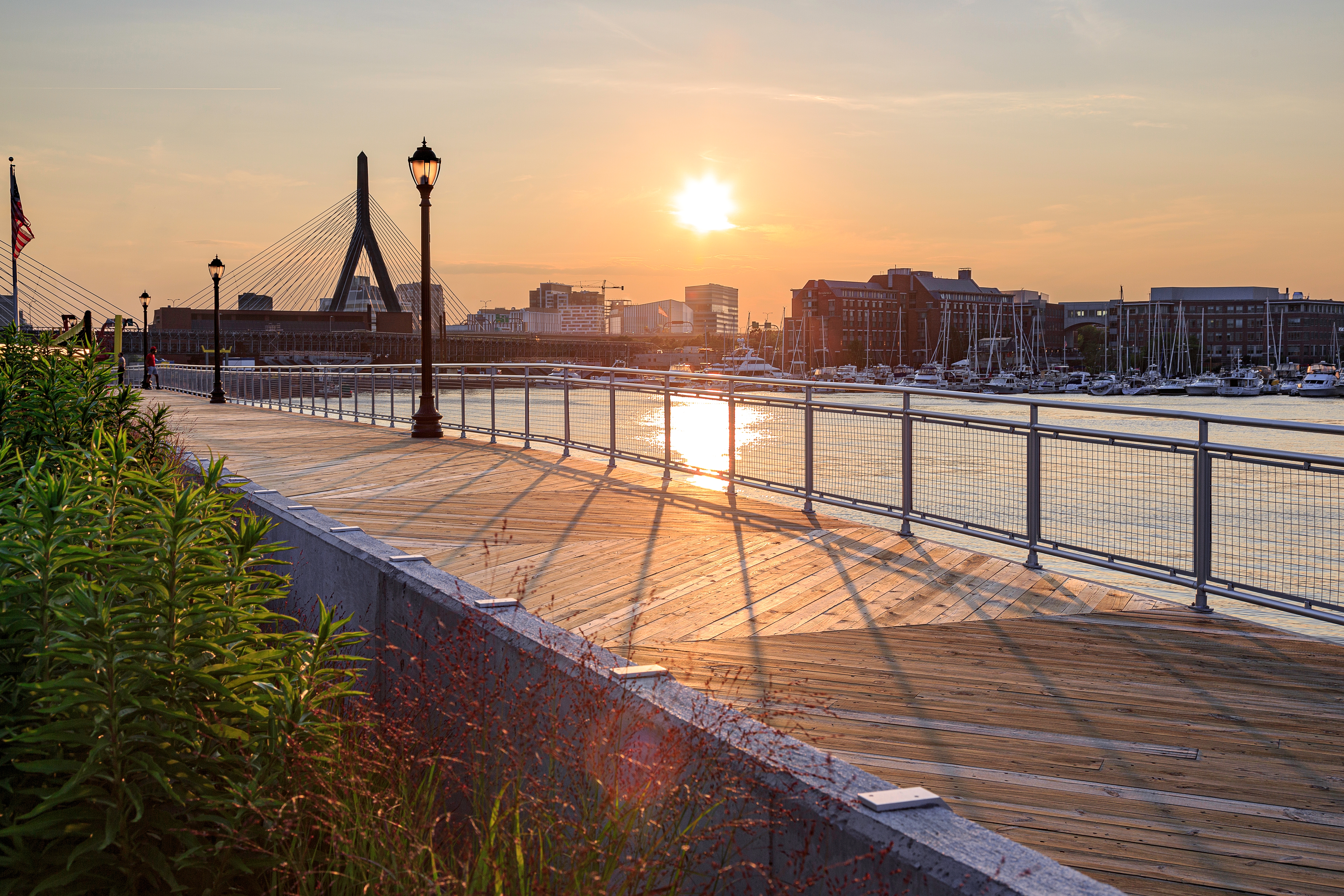

Interna-Rail® aluminum handrail systems are easy to install thanks to In-line fittings, strong and durable. They feature an offset panel attachment which allows an uninterrupted infill panel railing system.
Features
- In-line fittings enable easy installation
- Smooth architectural appearance
- Fitting-based system allows some reconfiguration options on-site
- Shipped in pre-fabricated sections of 10 – 24 feet
- Easily installed by non-specialized labor
- Extremely non-corrosive and low maintenance when compared to steel handrails
Structural Performance
| | Uniform load | Concentrated load |
| Handrails | 50 lbf/ft. applied in any direction | 200 lbf. applied in any direction |
| Top Rails of Guards | 50 lbf/ft. applied in any direction | 200 lbf. applied in any direction |
| Infill Area of Guards | | Horizontal concentrated load of 50 lbf. applied to 1 sq. ft. at any point in the system, including panels, intermediate rails, balusters, or other elements composing infill area |
*Uniform and concentrated loads need not be assumed to act concurrently
Materials and Finishes
| Posts | Aluminum 6005-T5, 1 ½" IPS (48.2 mm O.D.) Schedule 80 Wall (clear anodized) |
| Rails | Aluminum 6063-T6, 1 ½" IPS (48.2 mm O.D.) Schedule 40 Wall (clear anodized) |
| Fittings | Aluminum 6063-T6 (clear anodized) |
| Base Flanges | Cast aluminum |
| Fasteners | Stainless steel 304 alloy |
| | |
Infills are available in a variety of materials:

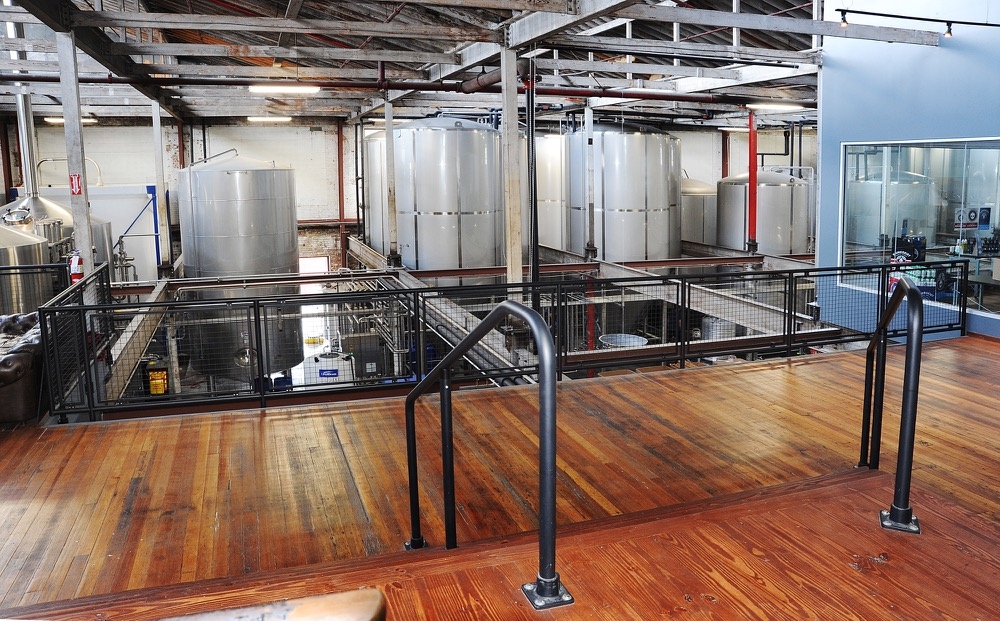

- Tempered glass, either monolithic or laminated
- Resin panels in both PETG and acrylic

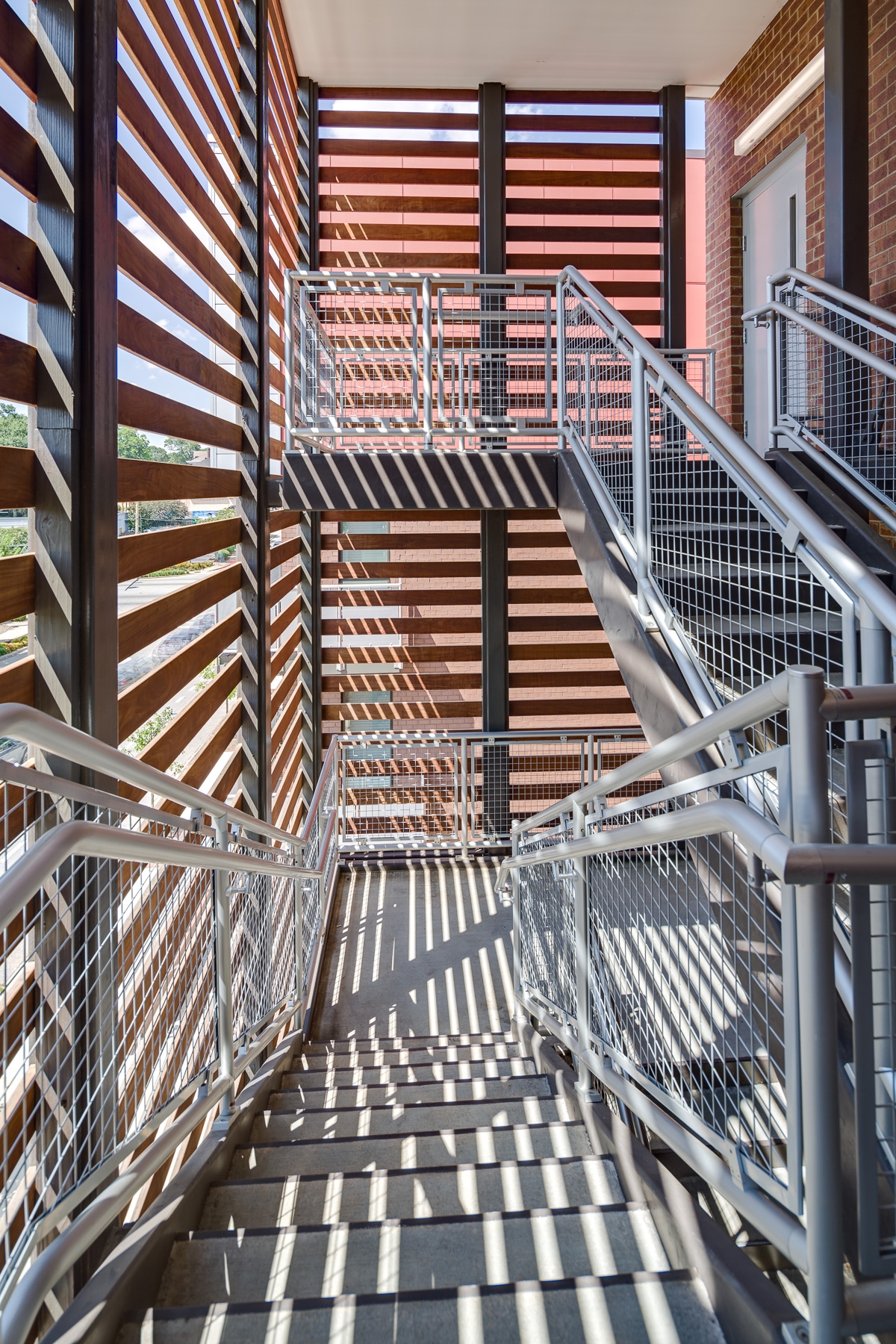

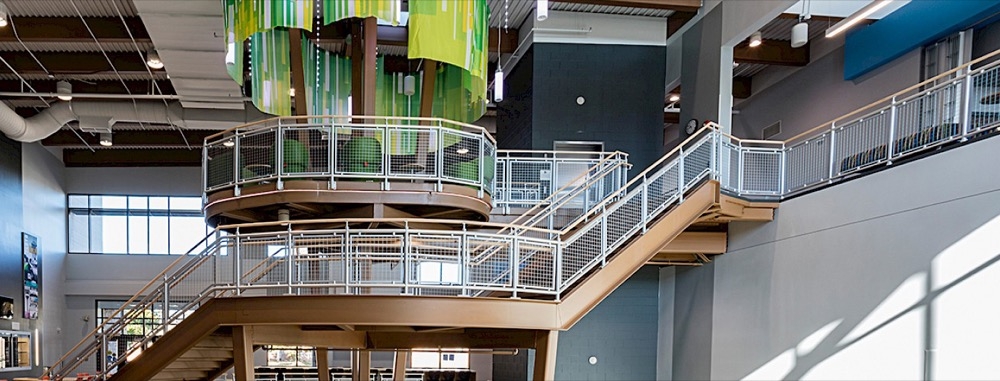

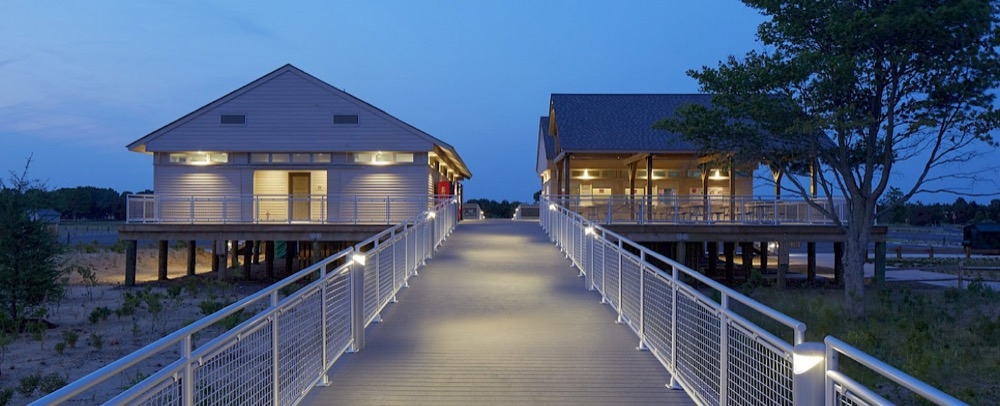

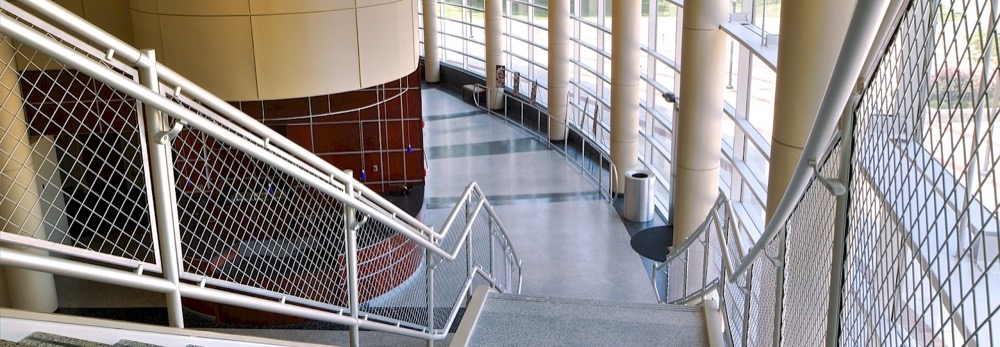

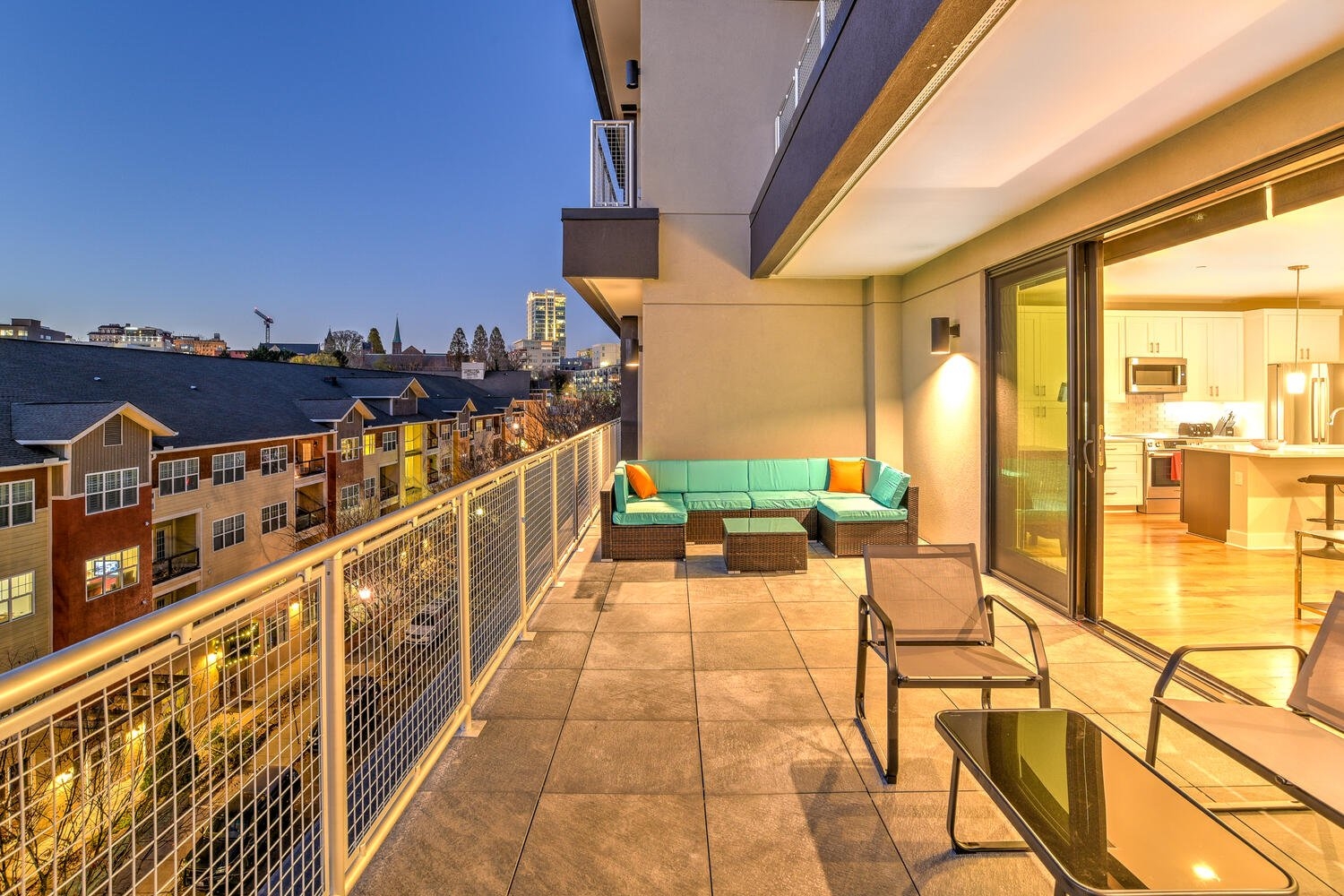

- Mesh metal panels, perforated or a more exotic pattern in a choice of materials from aluminum to e-coated steel to stainless steel.
Finishes come in a range of patterns, colors and textures. Aluminum systems can be anodized with clear and bronze options, or powder-coated in almost any color; Steel infill panels are produced in the same wide array of colors, but are first e-coated to protect against corrosion. Panels can also be supplied in a bright dip.
