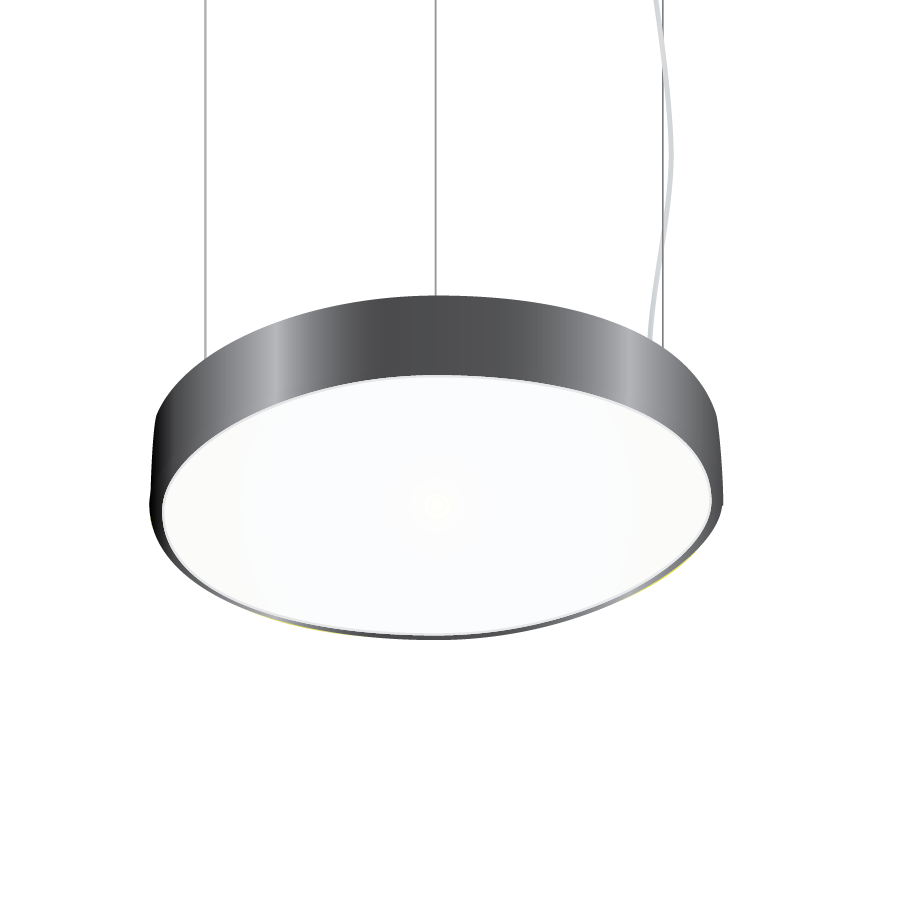

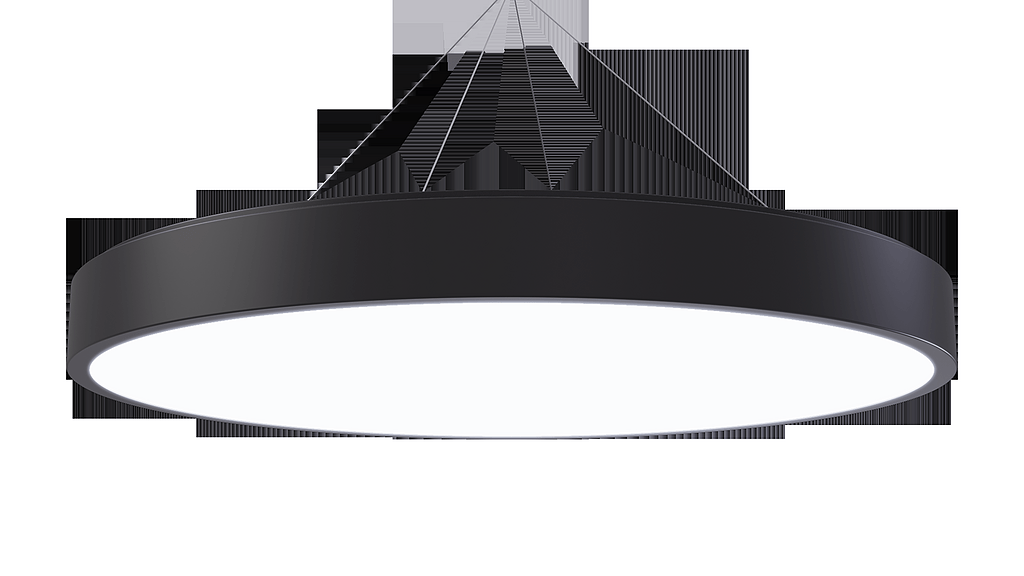

The Alcon Lighting® Skyline Architectural LED is a round, surface-mounted, direct light fixture that features high-quality, energy-efficient lighting and a sleek, minimal design that is ideal for indoor applications in residential, commercial, or architectural installations.
The style is a modern, soft, and circular style that meets current LED lighting demands and industry qualification. Skyline is available in any custom color on top of the standard color options offered by Alcon Lighting.
Constructed from one-piece of die-formed, 20-gauge spun steel and finished with polyester powder-coat paint with a white acrylic diffuser lens. Alcon Lighting also offers many different styles in round architectural LED products.
Technical Specifications
Voltage | 120-277V |
Color Temperature | 30K Warm White / 35K Soft White / 40K Cool White / 50K Day Light |
Lumens | Delivers up to 21,000 lumens direct / 17,000 lumens indirect |
CRI | 80+ |
Projected Lifetime | 133,000 Hours (L70); 84,000 Hours (L80) |
Operating Temperature | -30° to +45°C Ambient |
Power Factor | > 0.90; THD < 20% |
Lens Type | Glare-Free Technology |
Dimming | 0 - 10V |
Options | Emergency Backup Battery |
This product was used in the Alta Housing project, Located in Palo Alto, California, USA.
