Linear LED Recessed Ceiling and Wall Lighting - Quick-Ship [US] | Alcon Lighting®

  • Available in

  • Use

    Interior lighting
  • Applications

    Commercial, residential, retail, corporate, cultural
  • Characteristics

    Full ability to tandem mount for continuous run application complete with easy quick connects. Powered by high-quality constant-current power LED drivers which are rated for 50 to 60Hz at 120-277V input, produce less than 20% THD, and have a power factor of .90 to 1.00
  • Colors

    White, black, silver, any custom color
  • Certification

    Buy American Act, cETL listed, made in USA
  • Guarantee

    5 year warranty

3 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Alcon Lighting® Logo

Contact manufacturer

Alcon Lighting®

Alcon Lighting® Logo

Contact manufacturer

Alcon Lighting®

More from Alcon Lighting®

Website Phone

More about this product

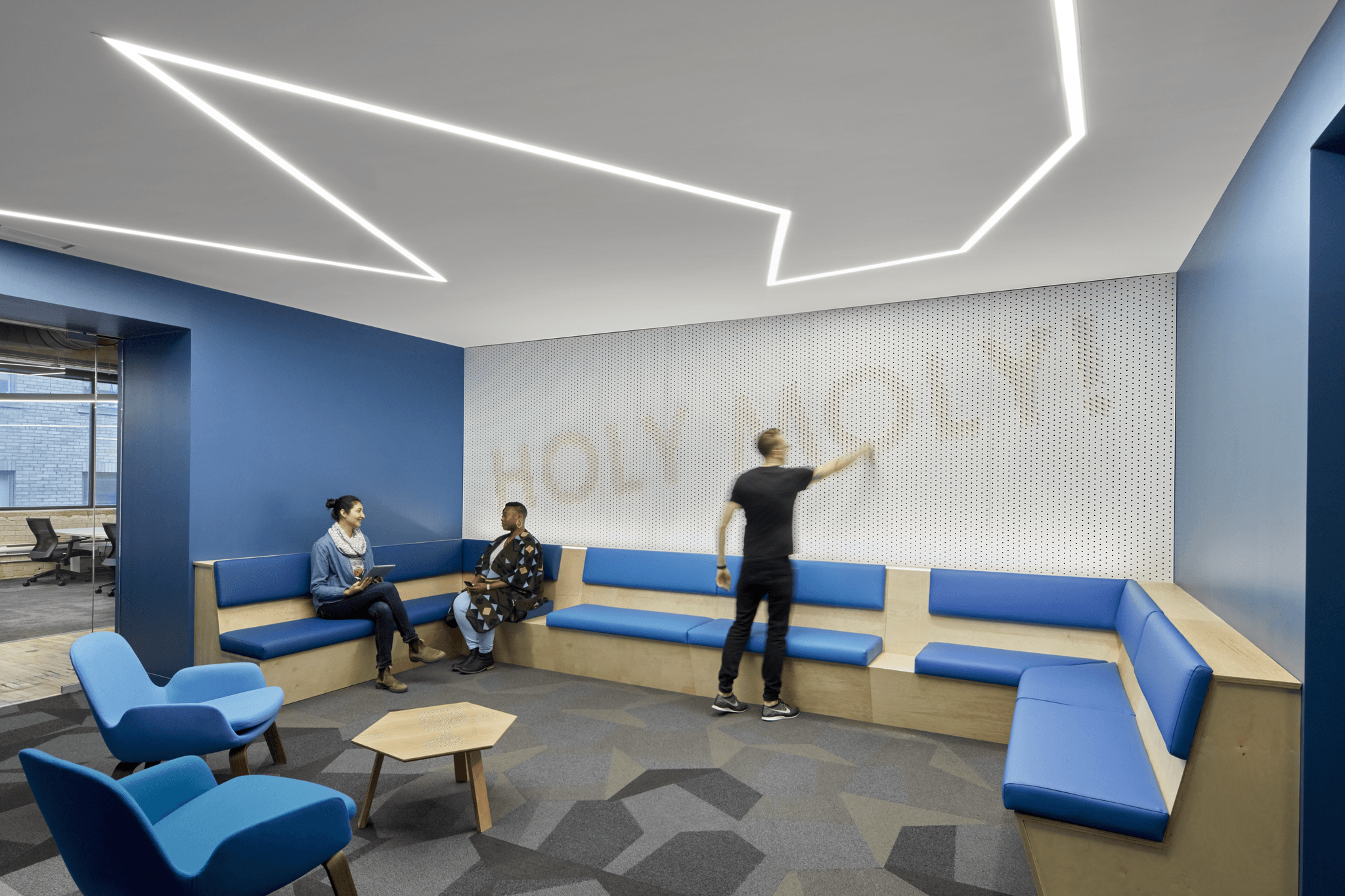

Alcon Lighting®'s Continuum Architectural Linear LED lighting fixtures bring clean lines and clear light to commercial LED or residential office lighting interiors. The ceiling to wall lighting fixture offers highly effective and efficient lighting solutions for hotels, offices, retail outlets, restaurants, and more.

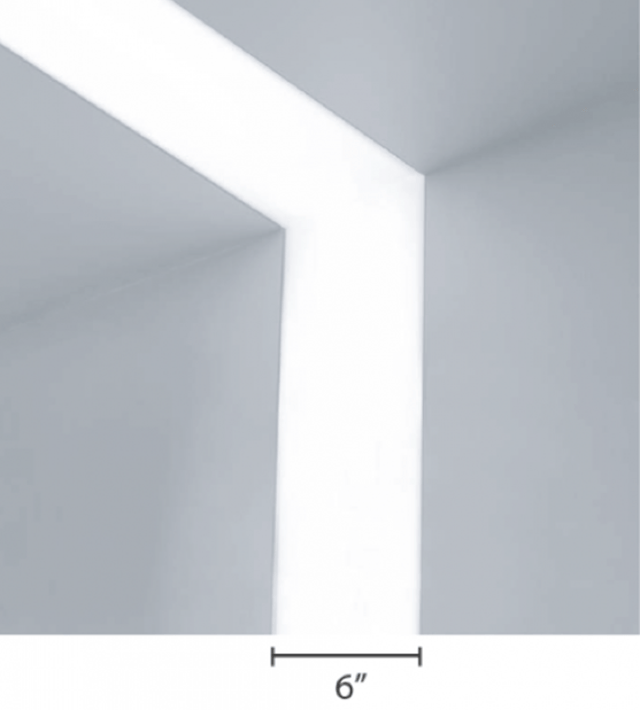

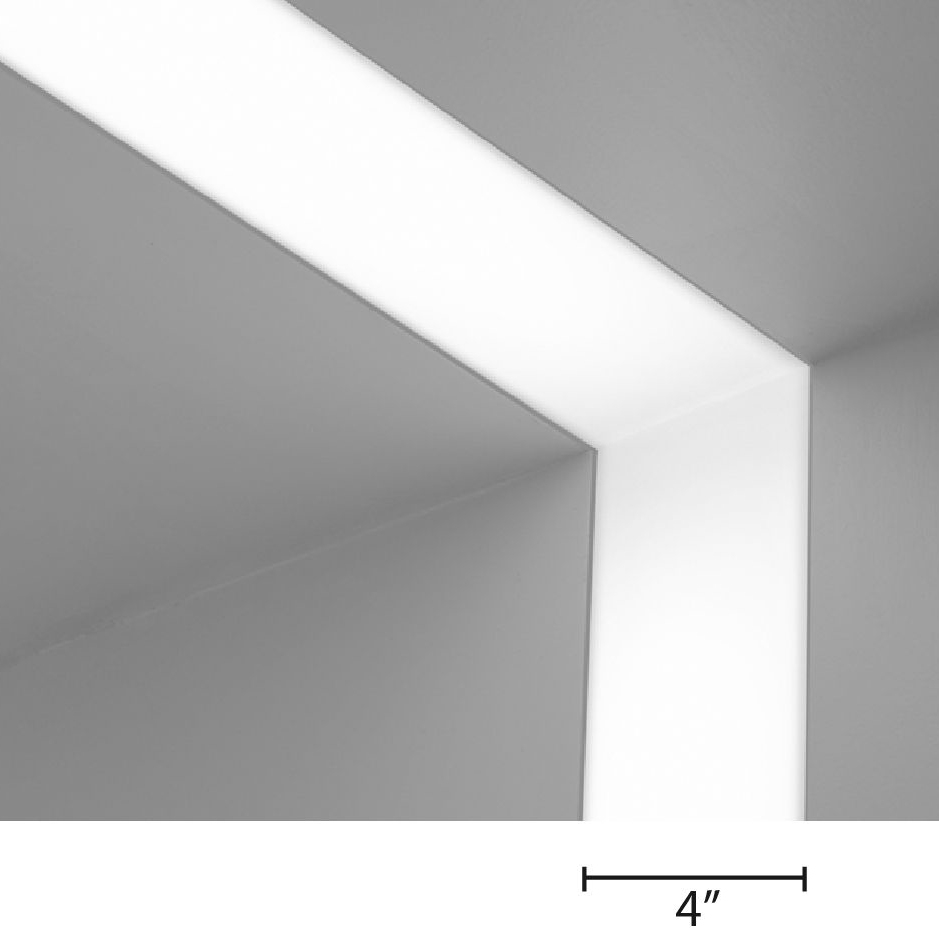

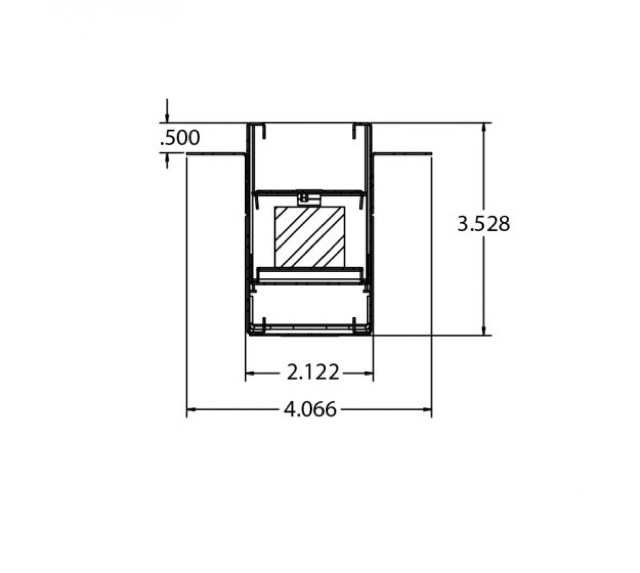

The body is formed of die-formed and welded 22-gauge cold-rolled steel and can be flanged or trimless. Built into the wall and/or ceiling, the Alcon Lighting Continuum can go around corners and adapt to many project types. The lighting is even and diffused, reducing the need for multiple optical layers, simplifying the design and maximizing optical efficiency.

Technical Specifications

Lens Glare-free snap-in frosted acrylic for even distribution
Dimming 0-10V & Electronic Low Voltage (ELV)
CRI 80+ & 90+
Light Color Temperature 2700K Residential Warm, 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light
Length 12" - 96" (Can accommodate any custom length)
Voltage 120V - 277V
Ceiling type T-Bar Grid, Drywall

Models

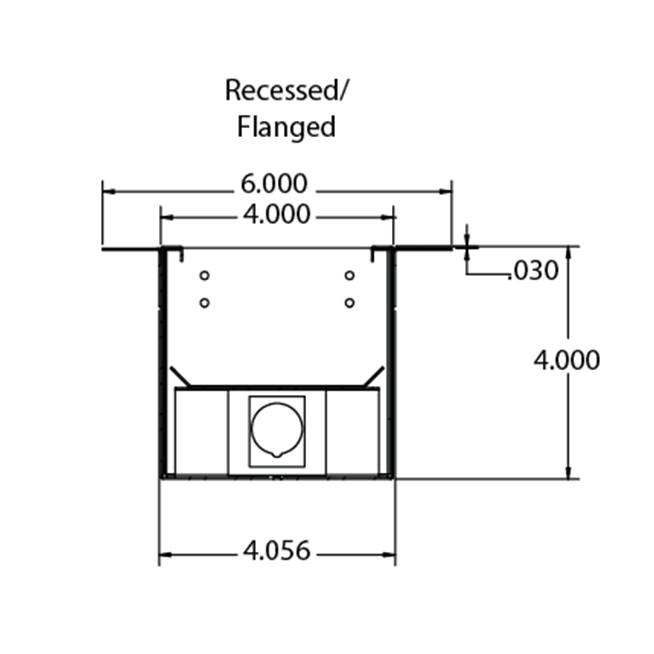

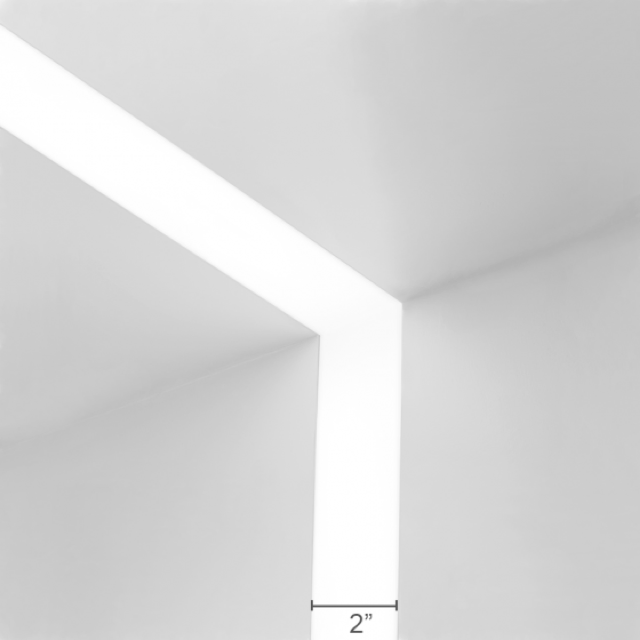

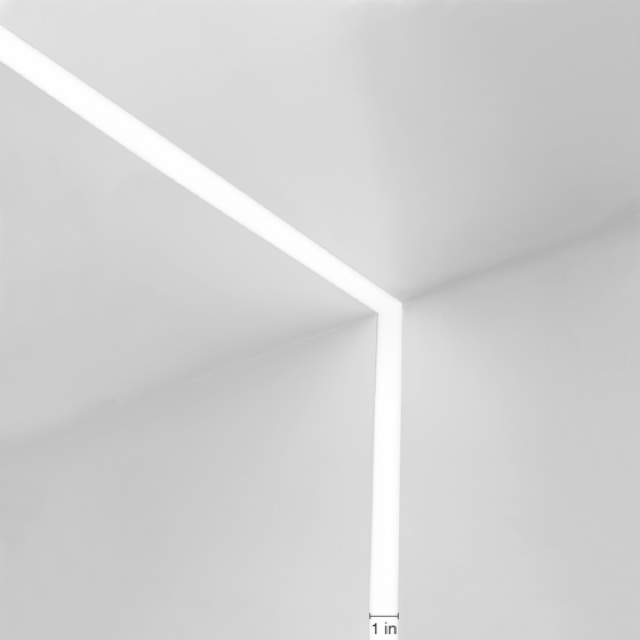

Aperture width 1" 2" 4" 6"
SKU 14100-1 14100-2 14100-4 14100-6
Mount type Recessed Trimless Recessed Flanged, Recessed Trimless Recessed Flanged, Recessed Trimless Recessed Flanged, Recessed Trimless
Width 1" 2" 4" 6"
Lumen Output Minimum 185 Lumens 700 Lumens/Ft 700 Lumens/Ft 700 Lumens/Ft
Lumen Output Maximum 500 Lumens 1200 Lumens/Ft 1200 Lumens/Ft 1200 Lumens/Ft
Wattage 6 Watts/FT 7 Watts/Ft, 12 Watts/Ft 7 Watts/Ft, 12 Watts/Ft 7 Watts/Ft, 12 Watts/Ft

For more information about this product, please visit Linear Recessed Strip Lighting.
