The building authority of the canton Graubünden set up a competition for an extension of the local school complex in Chur, including a new media centre (‘Mediothek’), a cafeteria and an additional building for new lecture halls.
In order to comply with the given space allocation plan this design, by Marc Anton Dahmen & Studio DMTW, allots two separate parts of the envisaged structure. All functions of the cafeteria and ‘Mediothek’ are combined in a single building which is located directly at the assemblage point between the already existing lecture facilities (Cleric & Bio Cleric), the sports facilities Badi Sand, and the planned new connection with the institutions sitting (among others Kanti Halde). The second building hosts the new lecture halls and complements the presently existing ensemble consisting of the Cleric and Bio-Cleric enhancing the schoolyard’s fourth spatial edge. More images and architects’ description after the break.

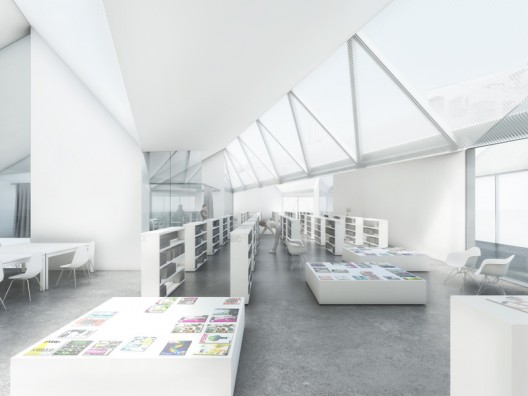

The basic idea for the cafeteria-mediathek complex is to carve out a synergetic effect between the two functionalities. Not only are they spatially intertwined but the arising interfaces give rise to an added value for both utilizations with the mediothek benefitting perhaps most. Because of the envisaged substantial stream of vistors and due to logistic reasons all functionalities of the cafeteria are located on the ground floor. For the mediothek to function properly it is important to create a quiet atmosphere. A natural but indirect and diffuse illumination is of enormeous importance for handling the media provided there. This type of illumination is best realized through the roof of the upper floor. The visual presence of the mediothek in the cafeteria is above all to draw the attention of the students during lunch to the knowledge stored in various media thereby stimulating their interest in joint studies and combining both domains.

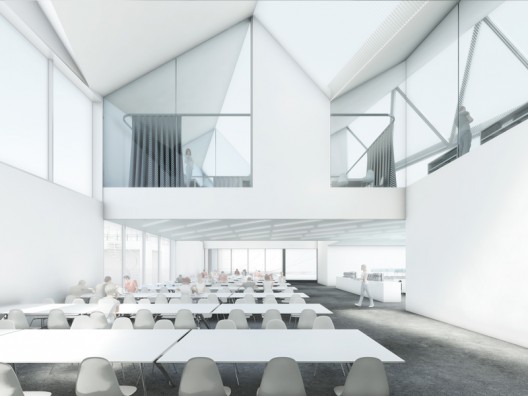

The two large air spaces above the guest areas of the cafeteria not only serve to improve the ambiente by means of a natural illumination and ventilation but they form also the central organizational element of this design. They open generous view relationships between the working students and the guests in the cafeteria. They also articulate the upper floor without visually decoupling the diverse areas of the mediothek advocating communicating within the whole building. The outer garment of the building resulting from these design elements and the conditions of the lot is described mainly by two parameters. On one hand, the perimeter of the ground floor is indented inward near bottlenecks in order to offer more space fort he streams of students to and from the sports facilities „Sand“. This gives rise to a polygonal floor plan within the circumscribed rectangle of the projected upper flight. On the other hand, the shed roof directed towards north warrants a glare-free natural indirect illumination.
From the perspective of urban planning, logistics, as well as enery efficiency a square floor plan for the new lecture halls is optimal. Except the basement each of the three storeys consists of four of partly divisible rooms which are arranged at the corners of the building in such a way that a nearly square interior room is formed in the interior from which all other rooms can be reached through very short connections. The dead-end-corridors located between the class rooms and the stair well direct daylight from all sides into the interior of each storey. The outer garment of the building is reduced to three materials: Well insulated prefabricated components of concrete, floor-to-ceiling windows and a few translucent polycarbonate elements for an indirect illumination of storage and side rooms.
In order to countervail a potential monotony in the outer appearance and in order to enhance the special valuable properties of concrete we plan to insert various textures and color shades into the casing. Depending on the position of a window element and the purpose of the adjacent room the glass has almost no or strong reflection. Overall the side buildings should fit into and reasonably complement the existing context also regarding materiality.
Architects: Marc Anton Dahmen & Studio DMTW Location: Chur, Switzerland Team: Marc Anton Dahmen, Maximilian Schmitz Status: Competition, 2011
