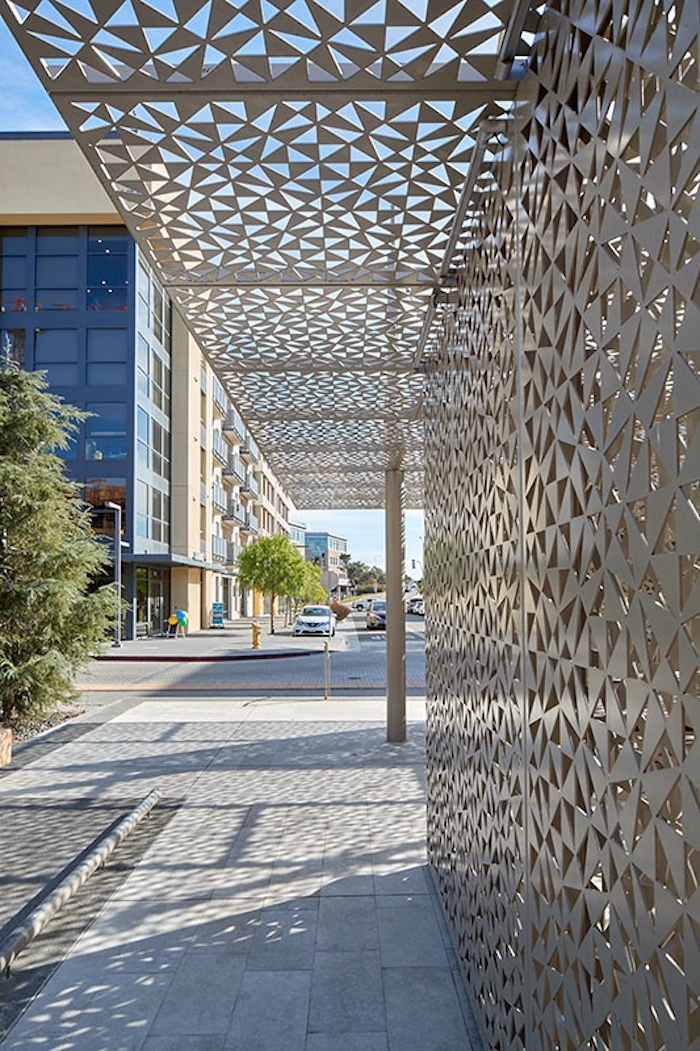

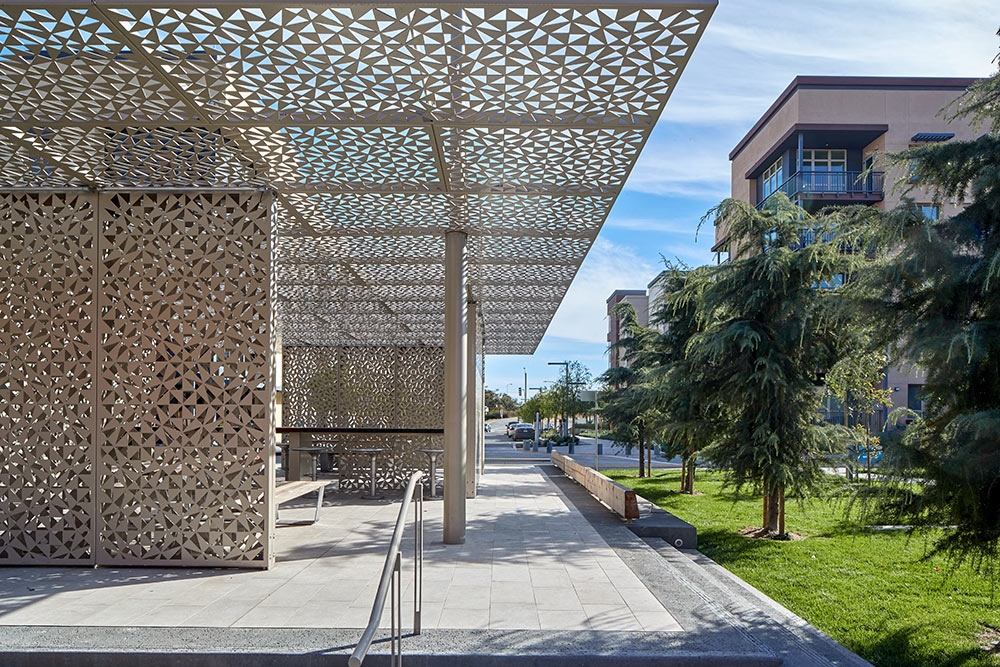

In this new multi-family residential construction, BŌK Modern utilized its previously proven "Moscone" system of staggering aluminum panels to support each other structurally (see Moscone Convention Center project, AIA 2020 Award Winner). By re-inventing a standard frame-supported pavilion, BŌK Modern floating trellis was suspended by 4 mast-like columns. This unique system not only drastically reduced the cost of the structure, but also resulted in a unified identity for the project.

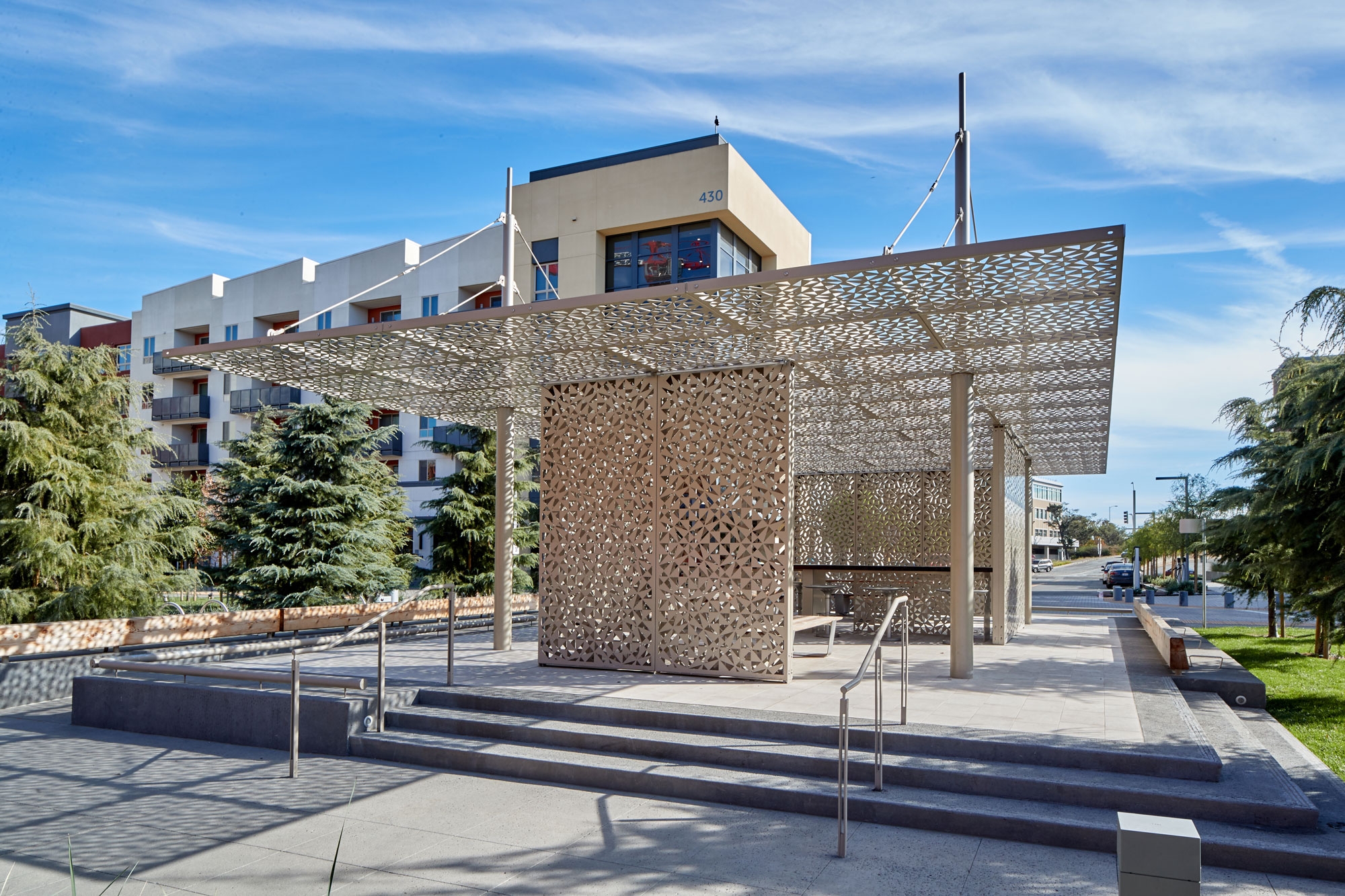

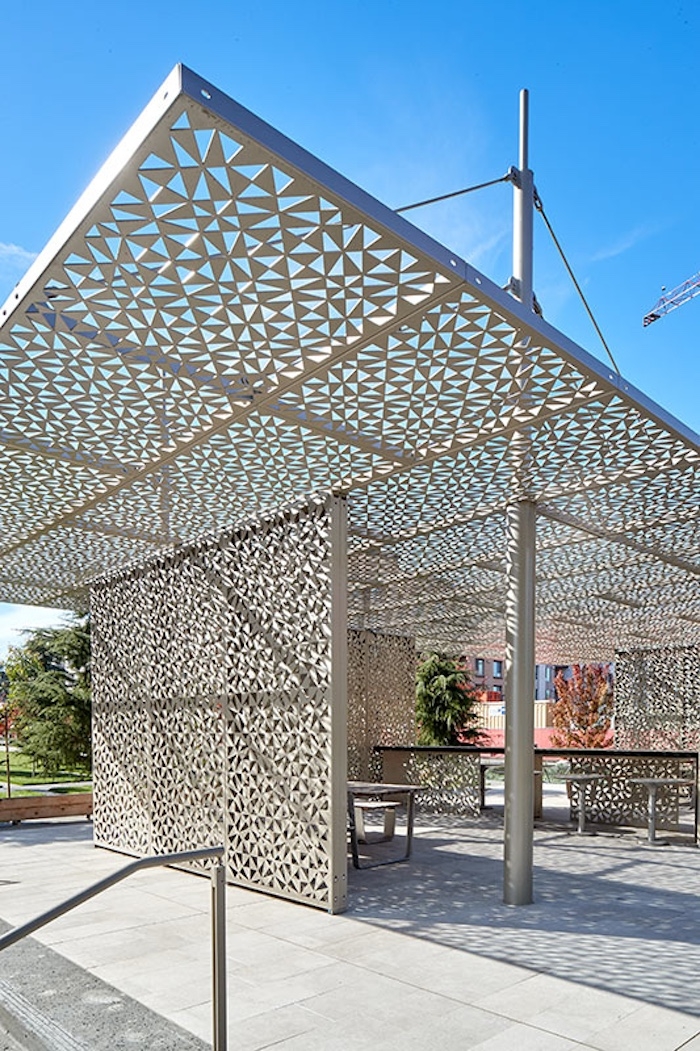

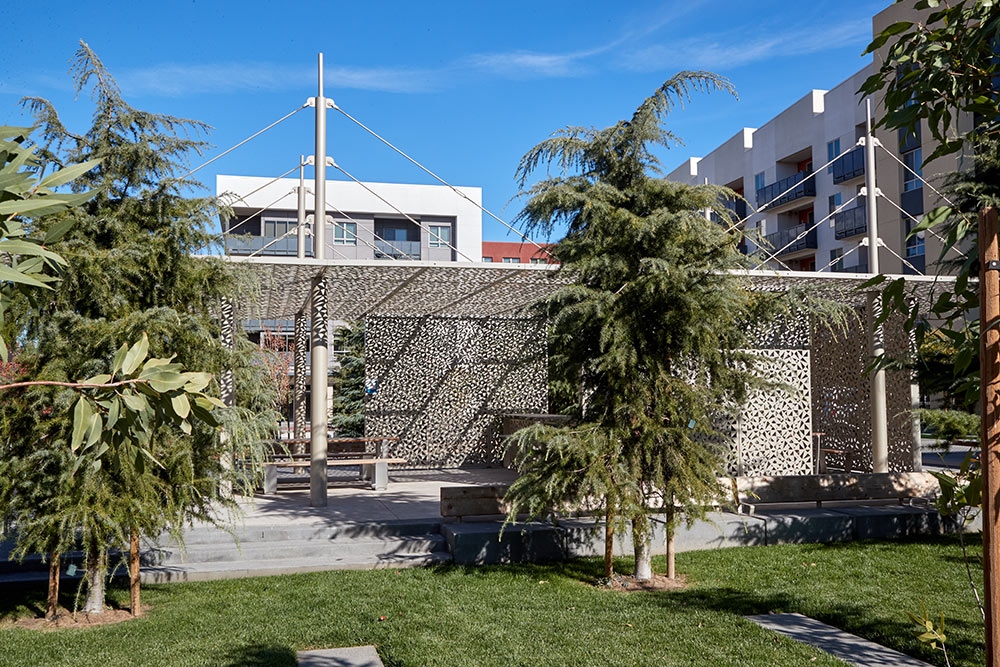

The original design included a substantial steel frame with infilled BŌK aluminum panels. The studio saw an opportunity to eliminate the majority of the structure and elegantly suspended pa nets from, 4 central masts. Thus this engineering scope was particularly unique: by applying BŌK Modern's, existing rod and clevis canopy design theory to the task at hand, the team was able to justify the structural stability. The pavilion's iconic design is seen in its floating illusion suspension without any structural elements (beyond the masts which makes many wonder how it can maintain such a stable assembly).

BŌK demonstrated its philosophy of removing unnecessary structural elements which could even be applied to a large custom pavilion.

The SPG Pavillion is a hallmark of BCIK's modular innovations, applied to this pavilion of scale by inserting columns as needed. Additionally, it's a prime example of the studio's design philosophy. Tile majority of structural steel in similar applications: is often laborious, requires field labor, and is not sustainable through the amount of waste produced. It creates a heavy and costly assembly. BŌK can take any number of different architectural dreams/visions: and pair them down to their simplest elements.

Product System Used: Custom Pavillion - Canopies

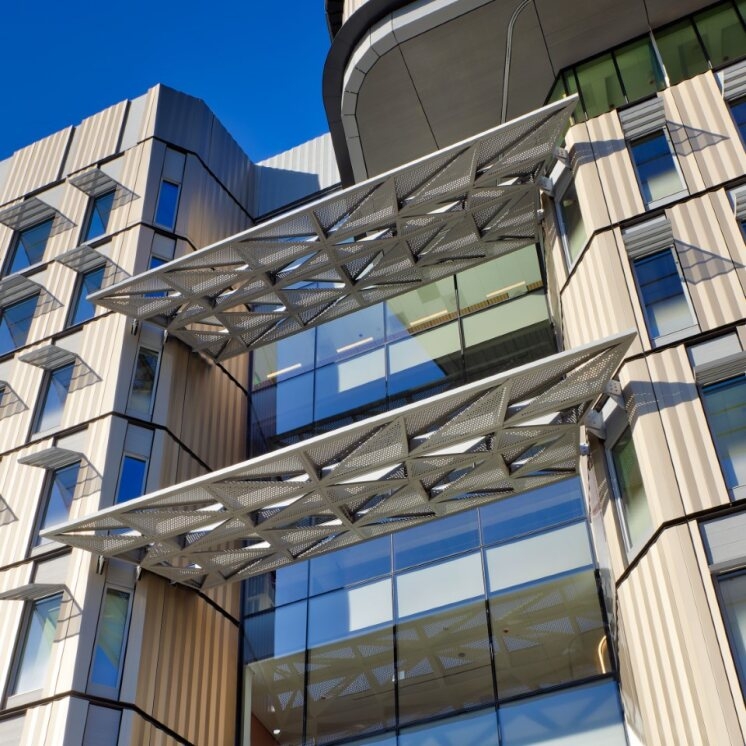

BŌK Modern custom canopies can be designed for commercial or residential uses to withstand major wind loads caused by engineering, transit, or building circulation. BŌK Modern can implement unique installation techniques and custom designs for your unique project needs, mounted vertically or horizontally. Depending on projection, BŌK panels can be either cantilevered out from the structure with simple brackets or provided with additional support using a cable or rod and clevis attachments. The patterns of light and shadow project depth through a selection of our variety of designs.
