KLEEMANN is a leading lift company enhancing mobility experiences since 1983. With a focus on safety, innovation, and aesthetic appeal, KLEEMANN delivers cutting-edge lift solutions for contemporary living and caters to different typologies.
Features
- Reduced total cost of ownership (TC)
- Energy efficiency with a regeneration drive, standby mode, and LED lights
- Remote lift monitoring
- Emergency evacuation, light curtains with object detection
- Gearless motor and quality inverter
- Smooth acceleration and low noise levels
- Magic Mirror LCD
- Virtual Window
- Elevator air purifier
- Touch-safe and touch-free lift operation
- Elevator cabin with antimicrobial protection
- Ideal for buildings with reduced pit and headroom

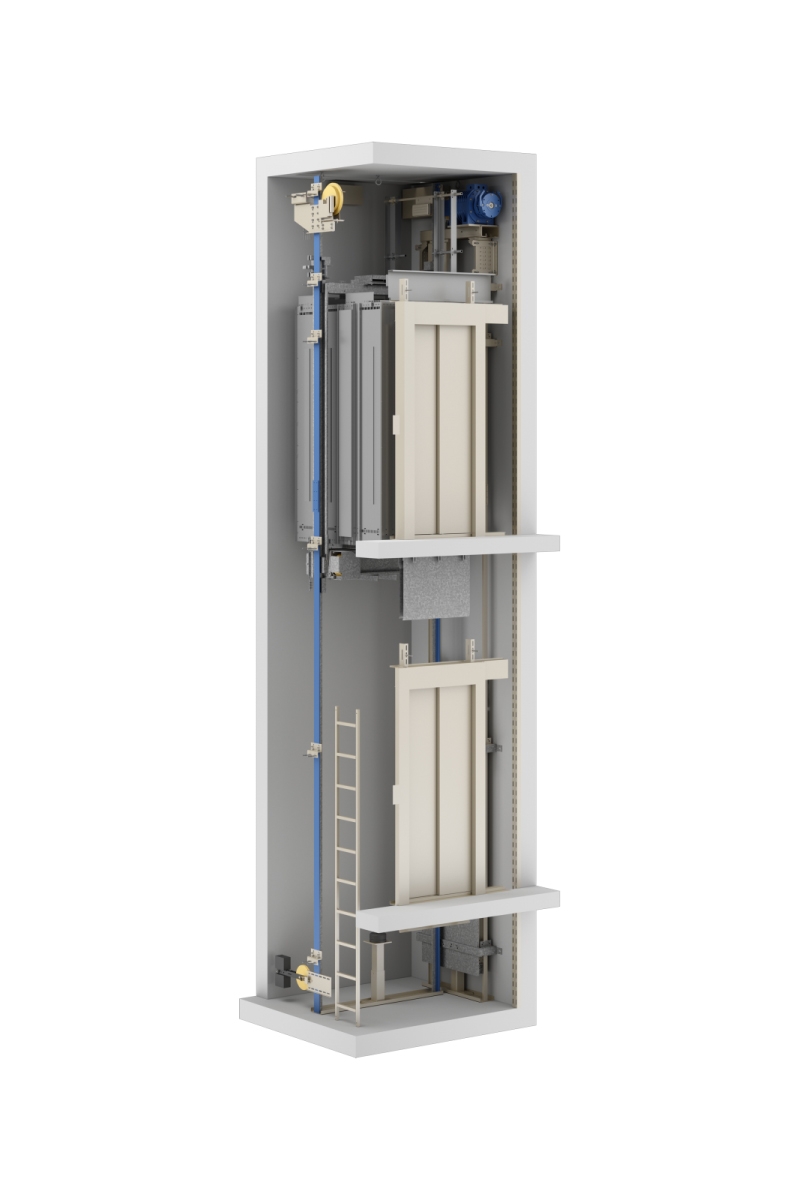

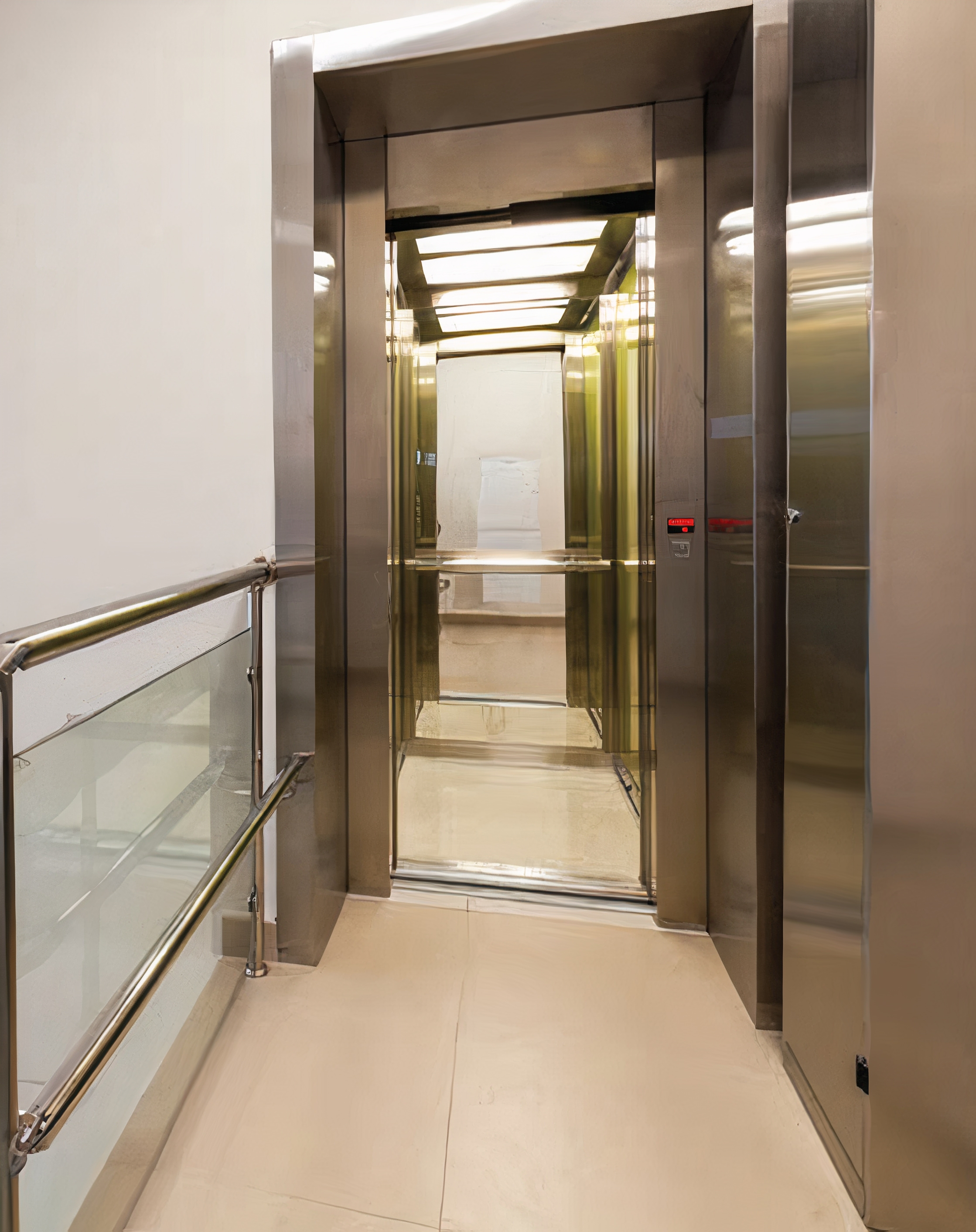

| Atlas Basic |
| | - Rated Load 375-1000 kg
- Suspension 2:1
- Machine Room MRL (MR)
- Max Travel 65 m
- Max Number of stops, 24
- Max speed 1,6 m/s
- Min Pit Depth 1100 mm
- Min Headroom 3400 mm
- Max car entrances 2
|

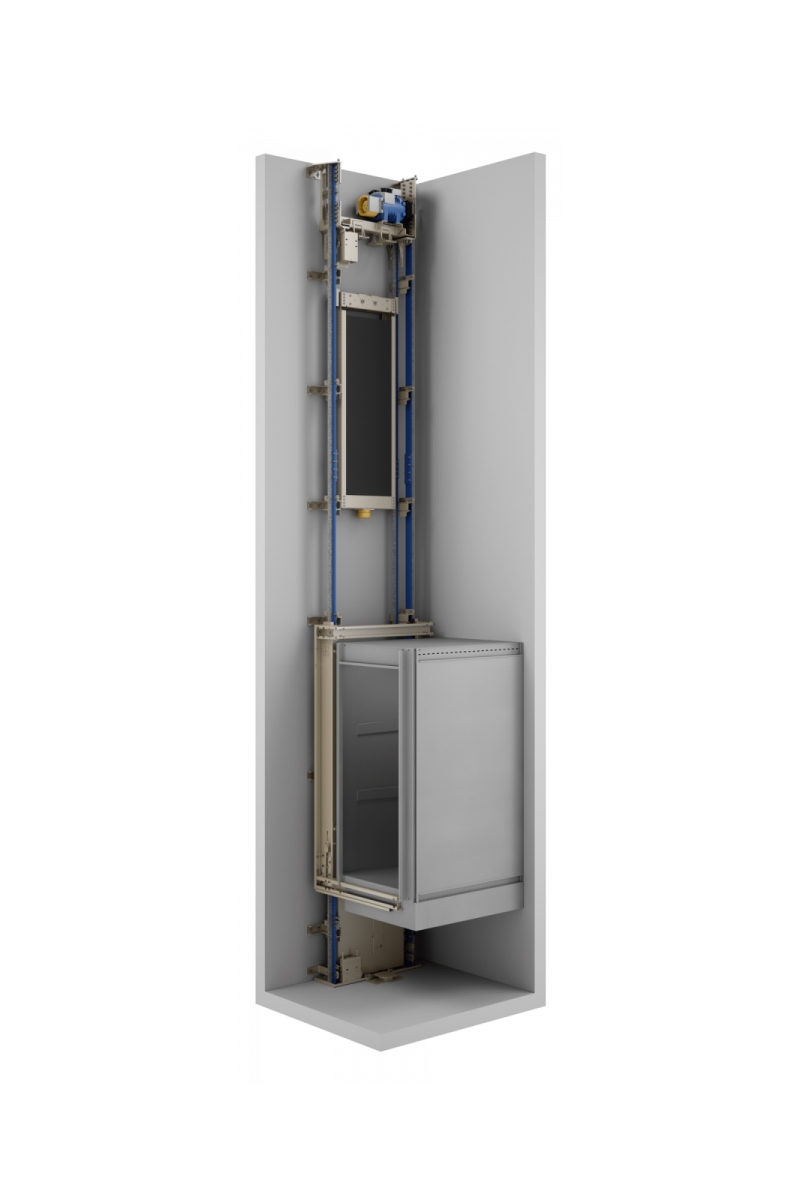

| Atlas RPH R |
| | - Rated Load 450-1050 kg
- Suspension 2:1
- Machine Room MRL (MR)
- Max Travel 40 m
- Max Number of stops 14
- Max speed 1 m/s
- Min Pit Depth 320 mm
- Min Headroom 2600 mm
- Max car entrances 3
- Suitable for buildings with pit and headroom limitations
- Ideal for modernization of existing lifts and/or narrow shafts
|
| Atlas Premium |
| | - Rated Load 375-1000 kg
- Suspension 2:1
- Machine Room MRL (MR)
- Max Travel 65 m
- Max Number of stops, 24
- Max speed 1,6 m/s
- Min Pit Depth v≤1.0m/s 1100 mm, v=1.6m/s 1250 mm
- Min Headroom v≤1.0m/s 3400 mm, v=1.6m/s 3600 mm
|

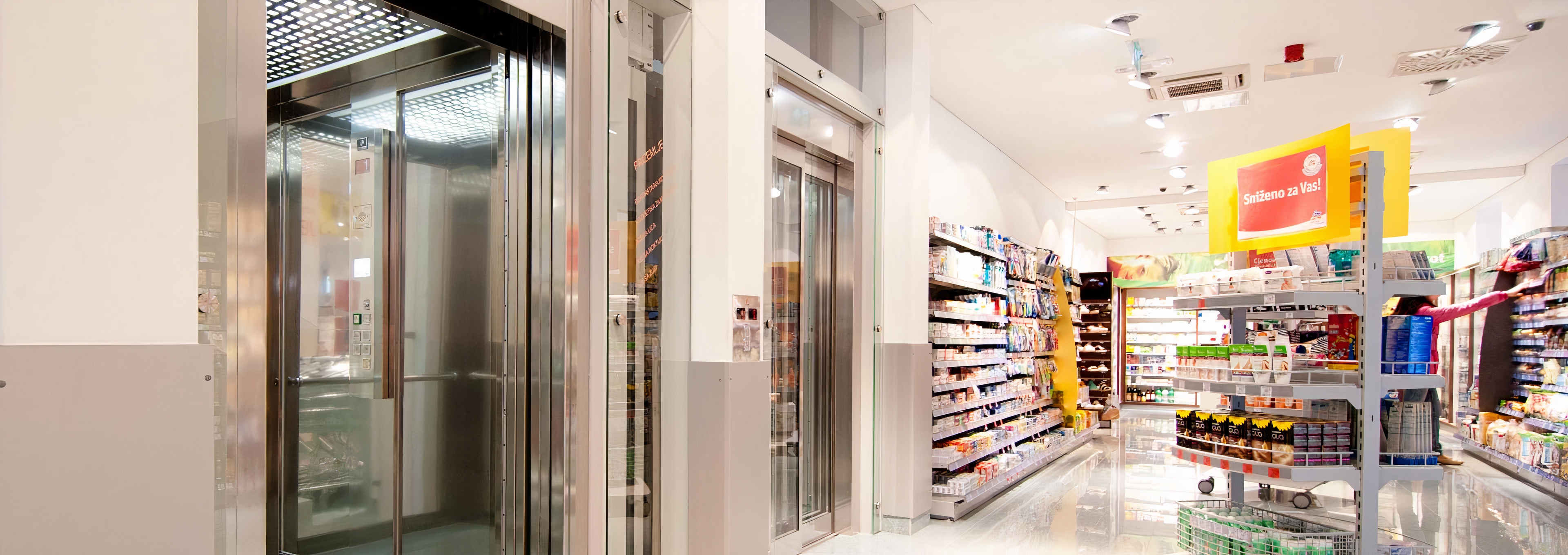

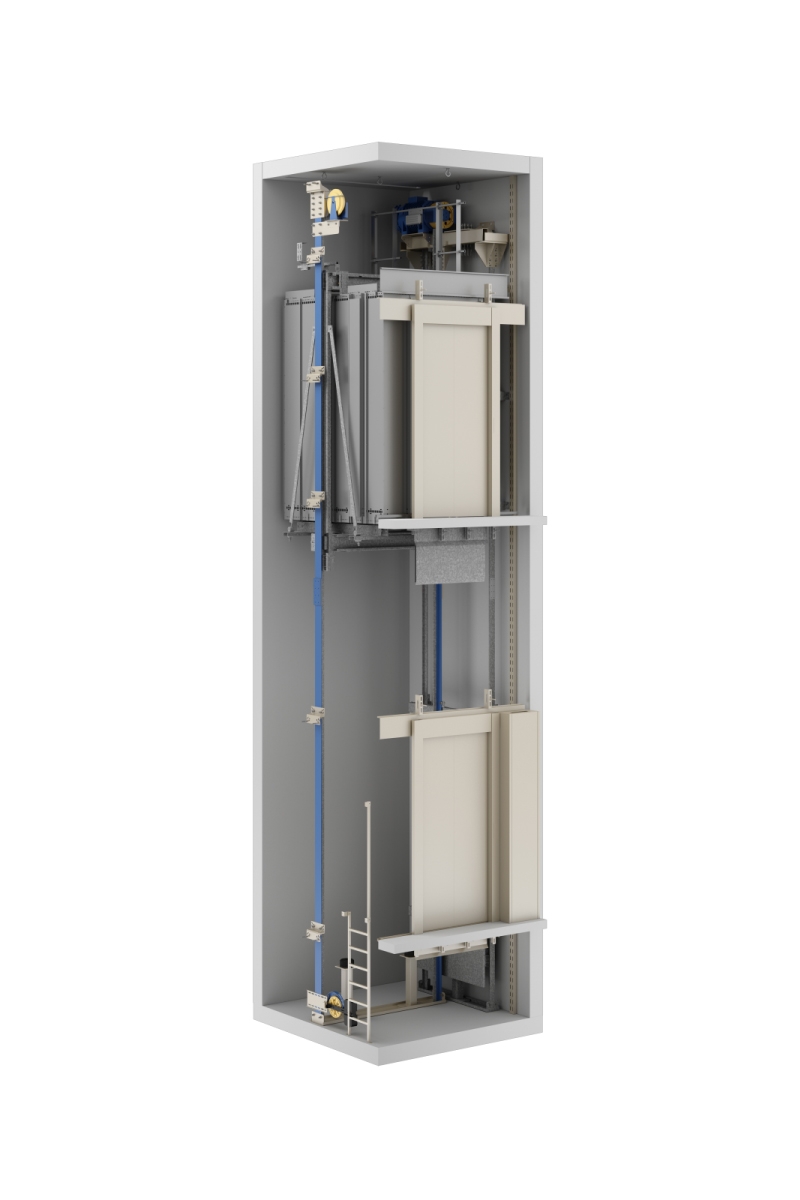

| Atlas Gigas R |
| | - Rated Load 1150-2500 kg
- Suspension 2:1
- Machine Room MRL (MR)
- Max Travel 45 m
- Max Number of stops 16
- Max speed 1,6 m/s
- Min Pit Depth 1100 mm
- Min Headroom 3800 mm
- Max car entrances 2
|
| HRS Lift |
| | HRS (MRL) | HRS (MR) |
| | - Rated Load 630-1275 kg
- Suspension 2:1
- Machine Room MRL
- Max Travel 150 m
- Max Number of stops 47
- Max speed 2,5 m/s
- Min Pit Depth 1800 mm
- Min Headroom 4450 mm
- Max car entrances 2
| - Rated Load 1000-1600 kg
- Suspension 2:1
- Machine Room MR
- Max Travel 150 m
- Max number of stops 47
- Max speed 4,0 m/s
- Min Pit Depth 1800 mm
- Min headroom 4140 mm
- Max car entrances 2
|
Create the look and feel of your elevator just the way you like it, by exploiting the KLEEMANN Design your Lift.
Access the KLEEMANN Portal and experience the new hassle free way to obtain your offer and online order in minimum time.
